Installation Instructions

ASSA ABLOY ACCENTRA™ M200 & M200F and Corbin Russwin CR972(A) / CR910A Mullions

1 Installation

WARNING: The M200F and CR910A mullions are 3 hour fi re rated up to 8 feet tall only. Do NOT use these mullions in a fi re rated application where the opening is taller than 8 feet.

Tools Required: Measuring Tape, Pencil, Drill & Tap Sizes #7 drill and 1/4"-20 tap, Concrete Drill 3/8" diameter, Center Punch, Hammer, #2 & #3 Phillips Screwdrivers, 5/32" Allen Wrench

• 1. Close and block doors against frame stops. Check gap between door leaves and door to frame and correct if necessary.
• 2. Locate the center of the opening on the fl oor. Using the bottom retainer, mark the positions for the two drop-in fasteners.
• 3. Drill holes with 3/8" diameter cement bit to a minimum depth of 2-1/2" (63.5).
• 4. Fasten bottom retainer to fl oor.
• 5. Locate the center of the opening on the top of the frame. Using the top retainer, mark the positions for the four fasteners.
• a. The door should evenly rest against both the frame stop and the mullion.
• b. If a top retainer mounting kit is used, modify weather stripping as required.
• 6. Drill and tap each location for 1/4"-20 fasteners.
• 7. Measure "Dim X" as shown. Remove material from the bottom of the mullion per the formula length of mullion = "dim X" minus 3/4" (19mm).

Note: This leaves approximately 1/8" (3.2mm) clearance between the mullion and the top retainer when mounted.

• 8. Place mullion onto bottom retainer and place top retainer on top of mullion. Pivot into opening and secure top retainer with provided fasteners.
• 9. Tighten set screws in both top and bottom retainers.
• 10. Install exit devices according to the manufacturer's instructions.

Attention Installer

Any retrofi t or other fi eld modifi cation to a fi re rated opening can potentially impact the fi re rating of the opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specifi c situation. When retrofi tting any portion of an existing fi re rated opening, or specifying and installing a new fi re-rated opening, please consult with a code specialist or local code offi cial (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

2 Fire Rated Rim and Squarebolt® / SecureBolt® Exit Devices

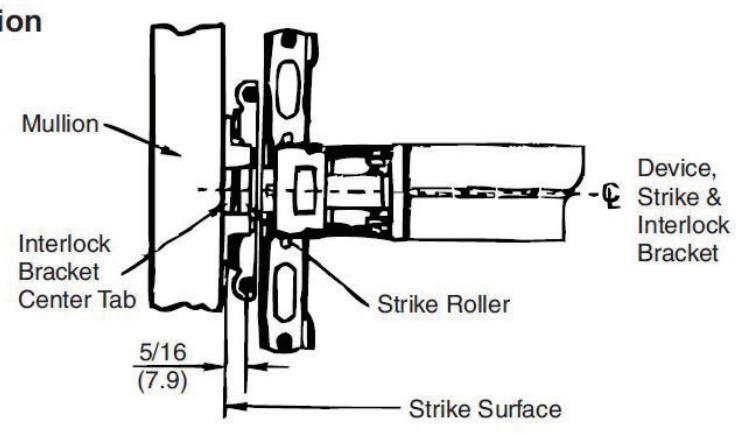

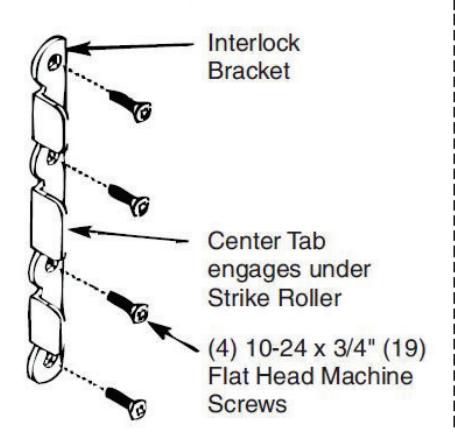

After exit devices and strikes have been assembled, install interlock brackets with #10-24 x 3/4" screws as shown in the illustration below.
