ASSA ABLOY ACCENTRA™ KRM200FWS and Corbin RusswinWS772AKM / WS708AKM Mullions

1 Installation

Tools Required: Measuring Tape, Pencil, #7 drill and 1/4"-20 tap, Concrete Drill 3/8" diameter, 1/2" Drill Punch, Hammer, #3 Phillips Screwdriver,5/64" Allen Wrench, 3/16" Allen Wrench

Attention: Before starting the installation make sure that you have the correct product, and that the doors are properly installed and hinge screws are secure.

• 1. Attach the top retainer to the top jamb.
• a. Mark the centerline of the top retainer on the top jamb.
• b. Close the doors and keep door leaves tight to the stops.
• c. Fold the supplied template 80-7401-0206-000 along the creased line and locate it on the top jamb using the center line marked. Attach it to the frame and doors with self adhesive strips supplied.
• d. Mark drill and tap holes required.
• e. Install the top retainer using (4) four 1/4-20 x 5/8" fl at head screws.
• 2. Locate the bottom retainer on the fl oor.

Attention: Do NOT attach the retainer to the fl oor at this point.

• 3. Cut the mullion body to size.

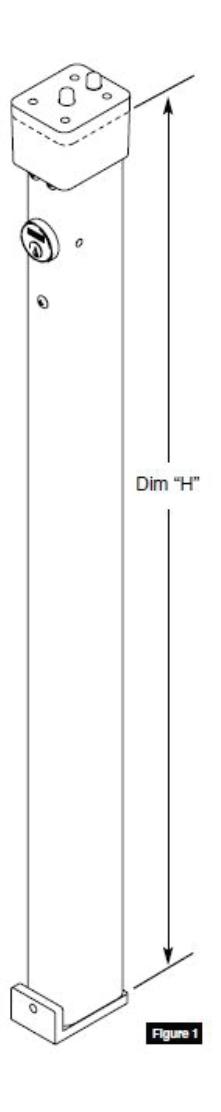

• a. Measure the distance (H) between the inside surface of the top retainer and the top of the bottom retainer surface as shown.
• b. Cut off bottom of the mullion body to desired length (L) using the following formula L = H - 1/16" (1.6)
• 4. Position the mullion body into the bottom and top retainers and locate it vertically. Mark the bottom retainer location on the fl oor (Bottom retainer still free to move).

Attention: The mullion surface must be engaged with the doors and the mullion is plumb to door face and frame.

1 Installation, continued

• 5. Install the bottom retainer.
• a. Remove the mullion body from the retainers and put it aside.
• b. Align bottom retainer with previous markings from Step 4.
• c. Use a punch and hammer to mark hole locations on fl oor.
• d. Drill (2) 3/8" (9.5) dia. holes in fl oor to a min. depth of 2-5/8" (66.7).
• e. Mount the bottom retainer to the fl oor with supplied (2) 3/8" fasteners.
• 6. Installation of Cylinder
• a. Depress latchbolt and hold fully retracted.
• b. Carefully thread cylinder with cylinder ring into lock assembly until it bottoms out.
• c. Unscrew the cylinder orienting keyway at bottom.
• d. Release latch bolt. Note: If latch bolt is not fully projected, loosen cylinder an additional 1-2 full turns.
• e. Tighten set screw with 5/64" Allen wrench through access hole inside of mullion.
• f. Check operation of cylinder and lock assembly.

Note: Key only turns counter clockwise.

• 7. Install the mullion body.
• a. Place mullion body onto bottom retainer and pivot into opening.
• b. Tighten bottom retainer set screw with 3/16" Allen Wrench to prevent mullion rattle.
• 8. Install exit devices according to the manufacturer's instructions.

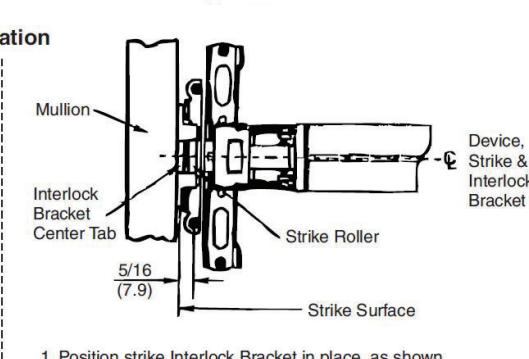

9. Fire rated Rim and SquareBolt® / SecureBolt® Exit Devices:

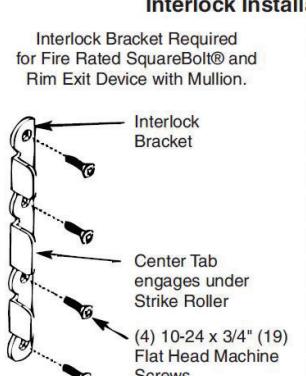

After exit devices and strikes have been assembled, install interlock brackets with #10-24 x 3/4" screws as shown in the illustration to the right.
