FLUSH BOLTS
93170 Series Manual Flush Bolts For Hollow Metal Doors
FEATURES:
- Compatible with ANSI/BHMA 156.115 door and frame prep
- 3/4" slide bolt throw, 3⁄4" backset.
- 12" rod length (center of face to bolt end retracted).
- 1-1⁄ 2" adjustable slide bolt.
- PDQ # 909 Dust Proof Strike recommended to prevent dirt from accumulating and clogging the bottom strike (ordered separately)
SPECIFICATIONS:
BASE MATERIAL: • Brass and steel
FASTENERS: • 16 ea. #8 x 3⁄4" FH combo screws.
FACE PLATE: • 1" x 6-3⁄4" STRIKE: • 15⁄16" x 2-1/4" GUIDE: • 1" x 2",
FINISHES: • 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome
CERTIFICATIONS, LISTINGS,
COMPLIANCES: • UL/CUL listed for metal swing doors, 4'x8', 3 hrs
• Complies with ANSI/BHMA A156.16, Type L04251
• Meets requirements of Buy American Act
93270 Series Manual Flush Bolts For Composite Wood Doors
FEATURES:
- Compatible with ANSI/BHMA 156.116W.
- Corner reinforcing plate.
- 3⁄4" slide bolt throw, 3⁄4" backset.
- 12" rod length (center of face to bolt end retracted).
- 1-1⁄ 2" adjustable slide bolt.
- PDQ # 909 Dust Proof Strike recommended to prevent dirt from accumulating and clogging the bottom strike (ordered separately)
SPECIFICATIONS:
BASE MATERIAL: • Brass and Steel
FASTENERS: • 7 ea. #8 x 3⁄4" FH combo screws, 2 ea. #8-32 x 1/4" FH MS.
FACE PLATE: • 1" x 6-3⁄4" STRIKE: • 15⁄16" x 2-1/4""
GUIDE: • 1" x 2",
FINISHES: • 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome
CERTIFICATIONS, LISTINGS,
COMPLIANCES: • UL/CUL listed for hollow composite wood swing doors, 4'x8', 1-1/2 hrs
• Complies with ANSI/BHMA156.16, Type L04261
• Meets requirements of Buy American Act
93101 Series Automatic Flush Bolts For Hollow Metal Doors
FEATURES:
- Easy closing force.
- Non-handed.
- Fully automatic– opening active door retracts top and bottom bolts.
- Override feature prevents damage to doors or bolts if bolt heads are blocked from entering strikes.
- Rods are adjustable up to 1-1⁄2".
- Fusible link automatically locks the inactive door under high heat conditions due to fire
- PDQ # 909 Dust Proof Strike recommended to prevent dirt from accumulating and clogging the bottom strike (ordered separately)
SPECIFICATIONS:
BASE MATERIAL: • Brass and Steel
FASTENERS: • 16 ea. #8 x 3⁄4" FH combo screws, 4 ea. #8-32 x 3/8" FH MS.
FINISHES: • 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome
CERTIFICATIONS,
LISTINGS,
COMPLIANCES: • UL/CUL 10C listed for hollow labeled hollow metal swing doors, 4' x 8', 3-1/2 hrs
• Complies with ANSI/BHMA156.3, Type 25
• Meets requirements of Buy American Act
93102 Series Self-latching Automatic Flush Bolts For Hollow Metal Doors
FEATURES:
- Easy closing force.
- Top bolt automatically engages when the inactive door closes. Bottom latch on the inactive door automatically engages when the active door is closed. When the active door is opened, the bottom latch on the inactive door automatically retracts. The inactive door stays latched at the top until the top bolt is retracted by depressing the release button on the bolt face.
- Non-handed.
- Override feature prevents damage to doors or bolts if bolt heads are blocked from entering strikes.
- Bolt head rod is adjustable up to 1-1⁄2".
- Fusible link automatically locks the inactive door under high heat conditions due to fire
- PDQ # 909 Dust Proof Strike recommended to prevent dirt from accumulating and clogging the bottom strike (ordered separately)
BASE MATERIAL: • Brass and Steel
FASTENERS: • 16 ea. #8 x 3⁄4" FH combo screws, 4 ea. #8-32 x 3/8" FH MS.
FINISHES: • 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome
CERTIFICATIONS,
LISTINGS,
-
COMPLIANCES:
UL/CUL 10C listed for hollow labeled hollow metal swing doors, 4' x 8', 3-1/2 hrs
- Complies with ANSI/BHMA A156.16 Type 27 (Formerly included in A156.3)
- Meets requirements of Buy American Act
3
93103 Series Automatic Flush Bolt with Bottom Fire Bolt for Hollow Metal Doors
FEATURES:
- Low (5lbs maximum) closing force.
- Fully automatic—opening active door retracts top bolt.
- Override feature prevents damage to doors or bolt if bolt head is blocked from entering strike.
- Bolt head rod is adjustable up to 1-1⁄2".
- Includes PDQ #629030 Fire Bolt automatically locks the inactive door under high heat conditions due to fire.
- Bottom fire bolt eliminates need for floor prep.
SPECIFICATIONS:
BASE MATERIAL: • Brass and Steel
FASTENERS: • 8 ea. #8 x 3⁄4" FH combo screws, 2 ea. #8-32 x 3/8" FHMS, 4 ea. 10-32 x 13/16" FH
MS (for Fire Bolt).
FINISHES: • 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome
CERTIFICATIONS, LISTINGS,
COMPLIANCES: • UL/CUL 10C listed for hollow labeled hollow metal swing doors, 4' x 8', 1-1/2 hrs
• Complies with ANSI/BHMA 156.16, Type L04021.
• Meets requirements of Buy American Act
93201 Series Automatic Flush Bolts For Composite Wood Doors
- Easy Closing Force
- Non-handed.
- Fully automatic opening active door retracts top and bottom bolts.
- Override feature prevents damage to doors or bolts if bolt heads are blocked from entering strikes.
- Bolt head rods are adjustable up to 1⁄2".
- Fusible link automatically locks the inactive door under high heat conditions due to fire
- PDQ # 909 Dust Proof Strike recommended to prevent dirt from accumulating and clogging the bottom strike (ordered separately)
SPECIFICATIONS:
BASE MATERIAL: • Brass and Steel
FASTENERS: • 12 ea. #8 x 3⁄4" FH combo screws
• 6 ea. #10 x 1" FH WS.
• 4 ea. #8 - 32 x 1⁄4" FH undercut FH MS.
FINISHES: • 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome
CERTIFICATIONS, LISTINGS,
COMPLIANCES: • UL/CUL 10C listed for hollow labeled composite wood swing doors, 4' x 8', 1-1/2 hrs
• Complies with ANSI/BHMA A156.16 Type 27 (Formerly included in A156.3)
• Meets requirements of Buy American Act
93202 Series Self-latching Automatic Flush Bolts For Composite Wood Doors
FEATURES:
- Easy closing force
- Top bolt automatically engages when the inactive door closes. Bottom latch on the inactive door automatically engages when the active door is closed. When the active door is opened, the bottom latch on the inactive door automatically retracts. The inactive door stays latched at the top until the top bolt is released by pressing the release button on the bolt face.
- Non-handed.
- Override feature prevents damage to door or bolt if bolt head is blocked from entering strike.
- Rod is adjustable up to 1⁄2".
- PDQ # 909 Dust Proof Strike recommended to prevent dirt from accumulating and clogging the bottom strike (ordered separately)
SPECIFICATIONS:
BASE MATERIAL: • Brass and Steel
FASTENERS: • 12 ea. #8 x 3⁄4" FH combo screws.
• 4 ea. #8 - 32 x 1⁄4" FH MS.
• 6 ea. #10 x 1" FH WS.
FINISHES: • 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome
CERTIFICATIONS, LISTINGS,
COMPLIANCES: • UL/CUL 10C listed for hollow labeled composite wood swing doors, 4' x 8', 1-1/2 hrs
• Complies with ANSI/BHMA A156.16 Type 27 (Formerly included in A156.3)
• Meets requirements of Buy American Act
93203 Series Automatic Flush Bolt with Bottom Fire Bolt for Wood Composite Doors
Release Button
FEATURES:
- Low (5 lbs. maximum) closing force.
- Fully automatic—opening active door retracts top bolt.
- Override feature prevents damage to doors or bolt if bolt head is blocked from entering strike.
- Bolt head rod is adjustable up to 1⁄2".
- Includes PDQ #629030 Fire Bolt automatically locks the inactive door under high heat conditions due to fire.
- Bottom fire bolt eliminates need for floor prep.
- Oversize fire bolt strike hole allows for slight door misalignment.
SPECIFICATIONS:
BASE MATERIAL: • Brass and Steel
FASTENERS: • 6 ea. #8 x 3⁄4" FH combo screws, 2 ea. 8-32 x 1/4" FH MS, 3 ea. #10 x 1" FH WS,
4 ea. #8 x 3/4" WS (for Fire Bolt).
FINISHES: • 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome
CERTIFICATIONS, • UL/CUL 10C listed for hollow labeled composite wood swing doors, 4' x 8', 20 min
LISTINGS, • Complies with ANSI/BHMA156.3, Type 25
COMPLIANCES: • Meets requirements of Buy American Act
909 Series Dust Proof Strike
FEATURES:
- Works with all PDQ manual and automatic flush bolts.
- Removable face plate for use with thresholds.
- Adjustable height for carpeted areas.
SPECIFICATIONS:
BASE MATERIAL: • Brass
FASTENERS: • Adjustment nut for threshold applications.
• Spanner wrench.
• 2 ea. #8 x 1-3/8" FH PS SMS.
• 2 ea. plastic anchors.
FINISHES: • 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome
BARREL: • 15/16" outer diameter x 2" Depth
CERTIFICATIONS,
LISTINGS,
COMPLIANCES: • Complies with ANSI/BHMA156.16, Type L04021
• Meets requirements of Buy American Act
HOW TO ORDER
SERIES
93170 — MANUAL FLUSH BOLT FOR HOLLOW METAL DOOR
93270 — MANUAL FLUSH BOLT FOR WOOD DOORS
93101 — AUTOMATIC FLUSH BOLTS FOR HOLLOW METAL DOORS
93102 — SELF-LATCHING AUTOMATIC FLUSH BOLTS FOR HOLLOW METAL DOORS
93103 — AUTOMATIC FLUSH BOLT WITH BOTTOM FIRE BOLT FOR HOLLOW METAL DOORS
93201 — AUTOMATIC FLUSH BOLTS FOR WOOD DOORS
93202 — SELF-LATCHING AUTOMATIC FLUSH BOLTS FOR WOOD DOORS
626 — SATIN CHROME
93203 — AUTOMATIC FLUSH BOLT WITH BOTTOM FIRE BOLT FOR WOOD DOORS
93101 626
605 — BRIGHT BRASS 613 — OIL RUBBED BRONZE
FINISH
Ordering Example: 93101 626 - Denotes factory default
CROSS REFERENCE
| PDQ | ABH | DCI | HAGER | IVES | ROCKWOOD | TRIMCO | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| MANUAL FLUSH BOLTS | ||||||||||
| HOLLOW METAL | 93170 | 1855S | 780F | 282D | FB458 | 555 | 3917-12 | |||
| COMPOSITE WOOD | 93270 | 1875S | 790F | 283D | FB358 | 557 | 3913 | |||
| AUTOMATIC FLUSH BOLTS | ||||||||||
| 93101 | 1860P | 842 | 292D | FB31P | 2842 | 3810x3810 | ||||
| HOLLOW METAL | 93102 | — | 845 | 293D | FB51P | 2845 | 3820x3810 | |||
| 93103 | — | 805/8BFB | 295M | FB52 | 2848 | 3820x3850 | ||||
| 93201 | 1862P | 942 | 291D | FB41P | 2942 | 3815x3815L | ||||
| COMPOSITE WOOD | 93202 | — | 945 | 293D | FB61P | 2945 | 3825x3815L | |||
| 93203 | — | 960/9BFB | 295W | FB42 | 2948 | 3815x3850 | ||||
ACCESSORIES
629030 Universal Bottom Fire Bolt for Metal and Composite Wood Doors
FEATURES:
- Designed for use with all PDQ manual and automatic flush bolts.
- For fire labeled doors, must be used with PDQ UL fire listed automatic flush bolts to maintain UL listing status and fire code compliance.
- For use in door only.
SPECIFICATIONS:
BASE MATERIAL: • Stainless Steel FINISHES: • 630 (US32D)
SURFACE BOLTS

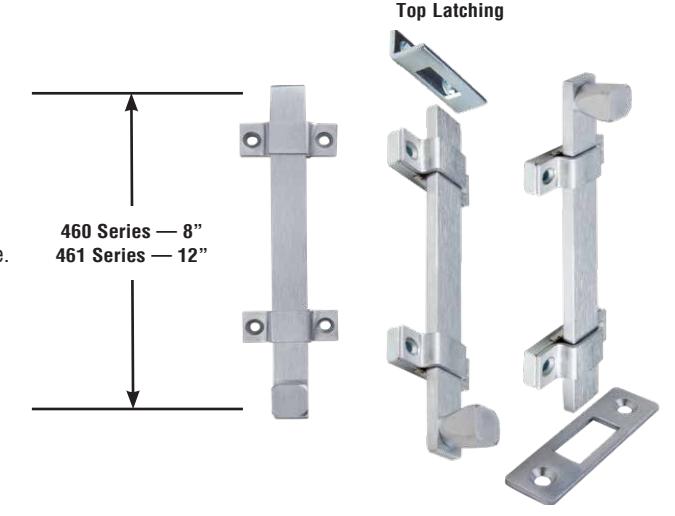

460/461 Series Surface Bolts
SPECIFICATIONS:
MATERIAL: • Steel. MOUNTING
FASTENERS: • 8 ea. #8 x 1-1⁄4" FH SMS. STRIKES: • 1ea. universal top strike, 1ea. mortise bottom strike.
FINISHES: • 626 (US26D) Satin Chrome
CERTIFICATIONS, • Complies with ANSI/BHMA156.16, Type L04151
LISTINGS, • Meets requirements of Buy American Act
COMPLIANCES:
Bottom Latching
462 Series Surface Bolt, Concealed Mounting
- Suitable for all types of doors.
- Fully concealed mounting helps guard against vandalism.
SPECIFICATIONS:
DIMENSIONS: • Body: 7/8" W x 8" L x 7/8" D.
• Actuating Knob Projection: 1-1/2"
• Top Strike: 2-1/4" W x 1" H x 15/16"" D.
• Bottom Strike: 3-3/8" W x 1" H x 1/8" Thick
MATERIAL: • Steel.
SURFACE BOLT
THROW: • 1".
MOUNTING
FASTENERS: • 5 ea. #12 x 1-1/4" FH PH SMS, 5 ea. 12-24 x 1" FH PH MS,
2 ea. plastic anchors.
STRIKES: • 1ea. universal top strike, 1ea. mortise bottom strike.
FINISHES: • 626 (US26D) Satin Chrome
CERTIFICATIONS, • Complies with ANSI/BHMA156.16, Type L04151
COMPLIANCES:
LISTINGS, • Meets requirements of Buy American Act
Bottom Latching
HOW TO ORDER
| SERIES | |
|---|---|
|
462 — SURFACE BOLT, CONCEALED MOUNTING
461 — SURFACE BOLT, 12" 460 — SURFACE BOLT, 8" |
|
| 460 | 626 |
| 626 — SATIN CHROME | |
| FINISH |
Ordering Example: 460 626 - Denotes factory default
COORDINATORS

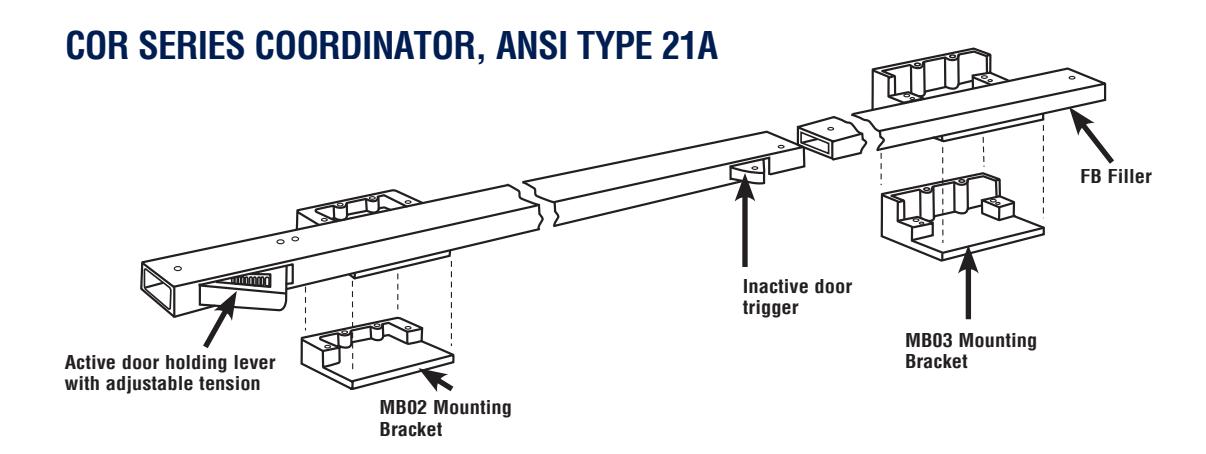

COR SERIES COORDINATOR, ANSI TYPE 21A
FEATURES:
- Non-handed.
- Override protection to prevent damage in case of abnormal force on door
- Mechanism and filler bar completely fill width of opening
SPECIFICATIONS:
BASE MATERIAL: • Steel
FASTENERS: • 8 Ea. 12-24 x 1-1/4 PH PH MS.
• 6 Ea. #8 x 3⁄4" Combo Screws.
• Strike Plates.
FINISHES: • 600 (USP) primer
SIZES: • COR42: 1-5/8W" x 5⁄8"H x 42L"
• COR52: 1-5/8W" x 5/8"H x 52L"
• COR60: 1-5/8W" x 5/8"H x 60L"
CERTIFICATIONS, LISTINGS,
COMPLIANCES: • UL/CUL 10B and UL/CUL10C listed for 3 hours for use with a pair of swing doors incorporating an astragal
• Complies with ANSI/BHMA156.3 Type 21A
• Meets requirements of Buy American Act
|

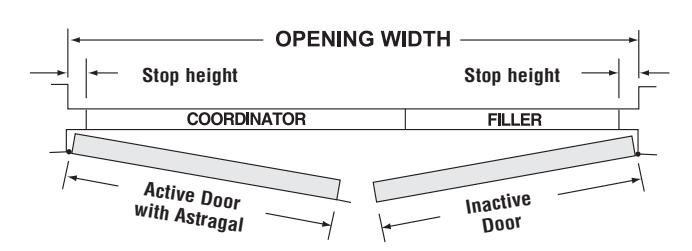

DOOR
OPENING WIDTH |
MODEL
NUMBER |
COORDINATOR
PART NUMBER |
COORDINATOR
LENGTH |
FILLER
NUMBER |
FILLER
LENGTH |
|---|---|---|---|---|---|
| 48"- 54" | COORD54 | COR42 | 42" | FB18 | 18" |
| 55"- 60" | COORD60 | COR52 | 52" | FB18 | 18" |
| 61"- 72" | COORD72 | COR52 | 52" | FB20 | 20" |
| 73"- 96" | COORD96 | COR60 | 60" | FB36 | 36" |
NOTE: If stop height dimension is other than 5⁄8" contact PDQ Technical Service
HOW TO SELECT THE RIGHT SIZE COORDINATOR
Coordinator size and length is a function of the active door size. It is recommended the coordinator extend a min of 6" beyond the active door width.
EXAMPLES:
- 1 Active door = 48", inactive door with astragal = 36" Coordinator size = 48 + 6 = 54" = COORD60
- 2 Active door = 36", inactive door with astragal = 24" Coordinator size = 42 + 6 = 48" = COORD52
- 3 Active door = 36", inactive door with astragal = 36" Coordinator size = 36 + 6 = 42" = COORD42
HOW TO ORDER
| FINISH | ||||
|---|---|---|---|---|
| 600 — USP PRIMER | ||||
| COORD72 | MB02 | 600 | ||
|
COORD54 — FOR DOOR WIDTHS FROM 48"- 54"
COORD60 — FOR DOOR WIDTHS FROM 55" - 60" COORD72 — FOR DOOR WIDTHS FROM 61" - 72" COORD96 — FOR DOOR WIDTHS FROM 73 - 96" |
MB02 MOUNTING BRACKET - SOFFIT OVER 2-1/4"
MB03 MOUNTING BRACKET - SOFFIT 7/8" - 2-1/4" |
|||
| SERIES | MOUNTING BRACKET OPTION1 | |||
Ordering Example Door Opening Width: 72", Soffit width: 7/8": Order COORD72 MB03 600
- Denotes factory default
Notes: 1 - Includes 2ea Mounting Brackets.
FB SERIES FILLER
SPECIFICATIONS:
BASE MATERIAL: • Steel
FINISHES: • 2 Ea. 12-24 x 1-1/4" PH PH MS
DESIGNATOR • FB18 — 18"
SIZE: • FB20 — 20"
• FB42 — 42"
For lengths greater than 42" contact PDQ Technical Service.
MB SERIES MOUNTING BRACKET
FEATURES:
- Required for soffit installations
- Prevents damage to the Coordinator by installation fasteners
SPECIFICATIONS:
BASE MATERIAL: • Aluminum
FASTENERS: • MB02: 4 Ea. 10-24 x 1-1/2" FH PH MS.
• MB03: 4 Ea. 10-24 x 2" FH PH MS, 2 Ea. 8-32 x 1-1/2" FH PH MS
FINISHES: • 600 (USP) Primer

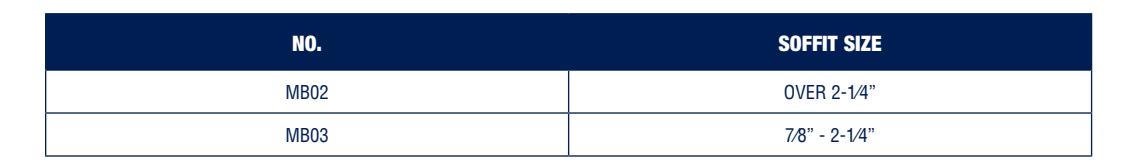

MB02
MB03
93590/93591 SERIES DOOR GRAVITY COORDINATOR, ANSI TYPE 21B
FEATURES:
- When active door is open, coordinator prevents the active door from closing until inactive door closes first. Closing the inactive door causes strike plate on top of door to contact cam and lift arm, allowing the active door to close. As inactive door continues closing, the roller travels over strike plate on, holding the arm above active door
- Non-handed. Field reversible
- Prevents the active door from closing until the inactive door is closed.
-
93590 Series: 6-1/2" Projection. For use on a pair of doors.
- With astragal on the active door up to 4'.
- With astragal, inactive door up to 3' 4".
- With astragals, both doors up to 2'10".
-
93591 Series: 8-1/2" Projection. For use on a pair of doors
- With astragal on the active door over 4'.
- With astragal, inactive door over 3' 4"
- With astragals, both doors up to 2' 10""
SPECIFICATIONS:
BASE MATERIAL: • Cast brass
FASTENERS: • Body: 2 ea. #10 x 1" FH SMS, 2 ea. #10 - 24 x 1" FH MS. Strike: 5 ea. #8 x 1" FH
SMS.
FINISHES: • 626 (US26D) Satin Chrome
CERTIFICATIONS,
LISTINGS,
COMPLIANCES: • UL/CUL 10B and UL/CUL10C listed for 3 hours for use with a pair of swing doors incorporating astragal
• Complies with ANSI/BHMA156.3 Type 21B
• Meets requirements of Buy American Act
| MODEL | FINISH | PROJECTION | ||
|---|---|---|---|---|
| 53590 | 626 - SATIN CHROME | 6-1/2" | ||
| 53591 | 626 - SATIN CHROME | 8-1/2" | ||
Ordering example: 53590 626
910 SERIES CARRY BAR
FEATURES:
• Required for soffit installations used when the inactive door is opened before the active door
SPECIFICATIONS:
BASE MATERIAL: • Brass, steel
FASTENERS: • 2 ea. 1⁄4 - 20 x 3/4"" RH MS, 2 ea. 1⁄4 - 20 x 1-11⁄16" sex bolts (Included).
FINISHES: • 689 Aluminum Painted, 693 Black Painted
| MODEL | FINISH | BASE SIZE | ||
|---|---|---|---|---|
| 910 | 689 - ALUMINUM | 1-3/4" X 2-1⁄4" | ||
| 910 | 693 - BLACK | 1-3/4" X 2-1⁄4" | ||
Ordering example: 910 689
CROSS REFERENCE
| PDQ | DESCRIPTION | ABH | DCI | HAGER | IVES | ROCKWOOD | TRIMCO |
|---|---|---|---|---|---|---|---|
| COR42 | Coordinator | 3710 | N6 | 297D | COR32 | 2660 | 3094A2 |
| COR52 | Coordinator | 3720 | 6 | 297D | COR42/52 | 2672 | 3094B1 |
| COR60 | Coordinator | 3730 | L-6 | 297D | COR60/72 | 2696 | 3094C4 |
| MB03 | Mounting Bracket | 3751 | 601AB | 297M | MB-2 | 1601AB | 3095 |
| MB02 | Mounting Bracket | 3752 | 601C | 297N | MB-1 | 1601C | 3096 |
| 910 | Carry Bar | 3760 | 100 | 297C | CB1 | 1100 | 3090 |
| 93590/91 | Gravity Coordinator | 3790 | 500 | 298D | COR7G/9G | 576 | 3093 |
FINISHES
ARCHITECTURAL
605 (US3) Bright Brass, Clear Coated
613 (US10B) Oil Rubbed Bronze, Oxidized Satin Bronze, Oil Rubbed, No Coating
626 (US26D) Satin Chromium Plated, No Coating
630 (US32D) Satin Stainless Steel, No Coating
PAINTED
600 (USP) Primed for Painting
689 (US28) Aluminum
693 Black
Finishes shown are representative only. Not all products are available in all finishes listed.
| NOTES: | |||
|---|---|---|---|
Headquarters: 2754 Creek Hill Road • Leola, PA 17540 • 800.441.9692 • 717.656.6892 Fax Regional Distribution Centers: Kansas City, MO, Salt Lake City, UT, Seattle, WA www.pdqlocks.com
PDQ'S Flush Bolts Brochures are now printed entirely on Forest Stewardship Council™ certified paper. harvested forests that meet strict environmental and socioeconomic standards. We're proud to be one of the first hardware manufacturers in the country to make this significant move to help our environment. The FSC logo on our brochure signals not only FSC Certification, but also PDQ's commitment to improving the environment.
© 2016 PDQ Industries LT2027 10-2016 Printed in the United States of America
