Advanced Hospital Tips Full Surface

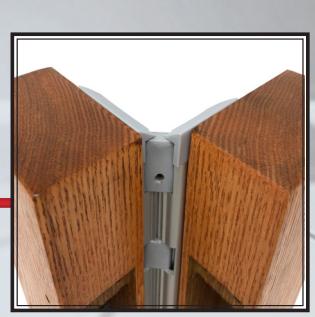

ABH Advanced Hospital Tips (AHT) are designed for use in behavioral health facilities, hospitals, correctional facilities or any institution where there are ligature risks. While most hospital tips are designed to work only in the closed position, the AHT works whether the hinge is open or closed. Each AHT has been designed to work with the specific hinge needed for the door and frame application at hand.

Possible ligature points present without the use of Hospital Tips

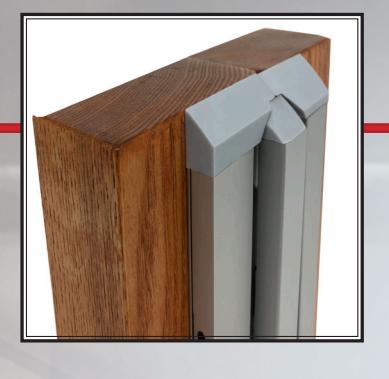

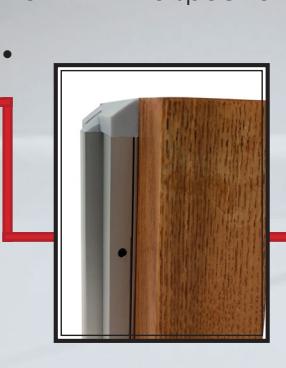

Ligature points eliminated with the use of Hospital Tips

Possible ligature points present without the use of Hospital Tips

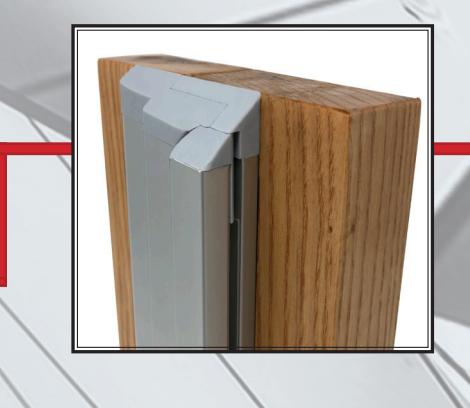

Ligature points eliminated with the use of Hospital Tips

*Note: Thickness of the door must be specified before ordering hinges.

ABH2020311

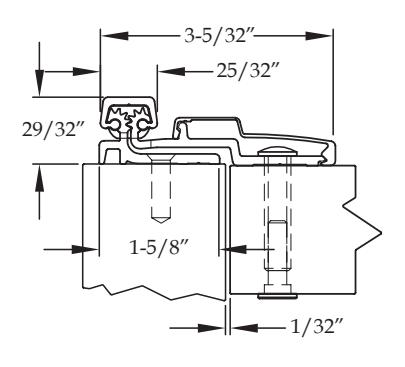

Aluminum Continuous Geared Hinges

Full Surface

Standard Features

  • Full surface, heavy duty
  • Swing clear application
  • 48" door width maximum
  • 450 lbs. door weight maximum
  • • Fasteners : 12-24 x ⅞" undercut self-drilling, thread-forming tek machine screws for frame and ¼-20 sex bolts and shoulder bolts for door
  • • Standard lengths : 79", 83", 85", 95" and 120"
  • • Finishes : Clear, dark bronze and black anodized
  • • Fire Rating
    • Approved for use on metal swinging type minutes (Specify " FR " option for 3 hour rating)
    • Approved for use on wood swinging 60 minutes (Specify " FR " option for 90 minute rating)

Options Available

• See pages F-7 to F-8 for option availability and details

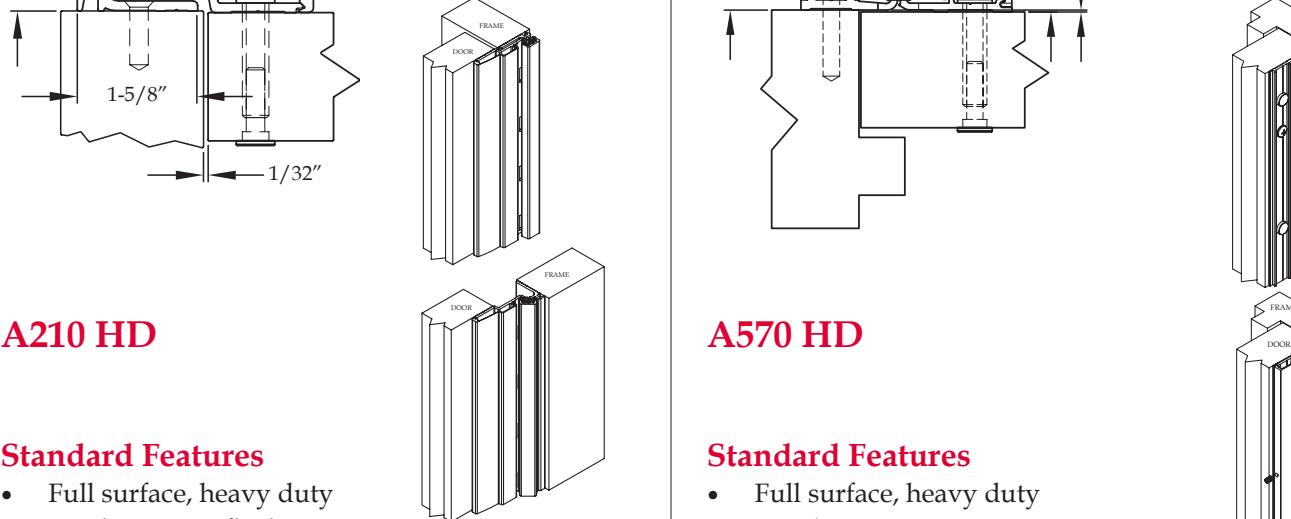

A570 HD

Standard Features

  • Full surface, heavy duty
  • door inset
  • For narrow-faced frames
  • 48" door width maximum
  • 450 lbs. door weight maximum
  • • Fasteners : 12-24 x ⅞" undercut self-drilling, thread-forming tek machine screws for frame and ¼-20 sex bolts and shoulder bolts for door
  • • Standard lengths : 79", 83", 85", 95" and 120"
  • • Finishes : Clear, dark bronze and black anodized
  • • Fire Rating
    • Approved for use on metal swinging type minutes (Specify " FR " option for 3 hour rating)
    • Approved for use on wood swinging 60 minutes (Specify " FR " option for 90 minute rating)

Options Available

• See pages F-7 to F-8 for option availability and details

INSTALLATION INSTRUCTIONS FOR FULL SURFACE HINGES

A210HD, A570HD & A571HD

  • A. All uncut standard length hinges are non-handed and can be used for right or left hand doors.
  • Standard length hinges are supplied slightly shorter than nominal door height to accommodate threshold and carpeting clearances.

CUTTING THE HINGE TO FIT

  • Keep hinge in the closed position. If necessary remove door/frame leaf caps.
  • Cut one end of the hinge only. The hinge must be installed with the cut end at the bottom to keep the templated hole pattern at the top.
  • Use a Metal Cutting Saw cut through the gear cap first.

Note: If cut length interferes with a set screw bearing remove it and switch it with a plain bearing above the cut location.

ATTACHING THE HINGE TO THE FRAME

  • 1. Shim the hinge to be 1/8" below the header.
  • 2. Hold hinge in the open position and align frame leaf withe the inner edge of the door frame.
  • 3. Mark or Center Punch hole locations: two holes at the top and two at the bottom.
  • Using the provided Self Drilling/Thread Forming Screws please proceed to fasten the frame leaf in marked holes.

Note: If using wood screws drill a 5/32" pilot hole.

PREPARE THE DOOR

  • 5. Position Door in the opening and shim for proper clearances.
  • 6. Align the top end of the hinge to be absolutely flush with the top of the door.
  • 7. Mark the four LOCATOR HOLE locations (shown on template) using the provided small center punch.
  • 8. Using a #3 philips head bit, attach the door leaf to the door through the LOCATOR HOLES with the provided pan head screws
  • 9. Remove any shims and check for proper clearances and door operation.
  • 10. If door sags slightly, note amount of adjustment needed to bring door back into alignment.

DO NOT PROCEED UNTIL DOOR OPERATES PROPERLY

  • 11. Locate and mark for the thru-bolts in the door using the large punch provided.
  • 12. Remove door and use a 3/8" drill bit to drill holes at marked locations

ATTACHING DOOR TO THE HINGE

13. Fasten the door to door leaf using the provided sex bolts and shoulder screws

Note: Always install the shoulder screws on the secured side of the door

14. Mark or Center Punch the remaining frame leaf hole locations. Using the provided flathead or pan head self drilling/thread forming screws completely fasten the frame leaf.

INSTALL THE LEAF COVERS

Note: Before installing the door leaf cover make sure the the set screws do not protruded into the interior of the cover.

  • 15. Line up the end of the door leaf cover with the top end of the hinge
  • 16. Starting at the top, apply pressure along the length of the cover and snap into place as you go down the length of the hinge.
  • 17. When the cover is on tighten the set screw to secure it.
  • 18. Install the frame leaf cover by first hooking it onto the outside edge of the frame leaf.
  • 19. Starting at the top, apply pressure along the length of the cover and snap into place as you go down the length of the hinge.

Note: If using a hammer, use a block of wood to protect the cover.

REINFORCING AND RIVNUTS

  • No reinforcing is necessary except on extremely high-frequency, extremely heavy or extra-wide doors.
  • Rivnuts are recommended for use in the frame when the door exceeds 450lbs.

Note:RIVNUTS are not to be used with Fire Rated Hinges

GROUT/SLUSHED-IN FRAMES

It is recommended that a mudguard be installed behind the frame for ease of installation. Do not use self-drill screws with grouted steel frames without a mudguard. If no mudguard has been used, drill holes through frame and remove grout for screw clearances. Do not oversize hole.

SCREW DETAIL
FRAME IDRILLING, I HREAD FORMING LEK MACHINE SCREW
FRAME 12-24 x 1" PHILLIPS PAN HEAD, SELF DRILLING,
THREAD FORMING TEK MACHINE SCREW
DOOR 1/4-20 x 1-1/4" x 3/8 DIA. SEX BOLT &
1/4-20 x 1-1/4" PH. HEAD SHOULDER SCREW
12-24 x 1" PH. PN. HD. SELF DRILLING TEK SCREW
(LOCATOR HOLE)

The following actions will void any warranty, expressed or implied.

  • Failure to Install the hinge according to ABH's specifications and requirements
  • Use of Fasteners other than those supplied with the hinge.
  • Unauthorized field modifications including removing any of the bearings, altering the original finish or painting the hinge.

Full Surface Thru Wire Hinge

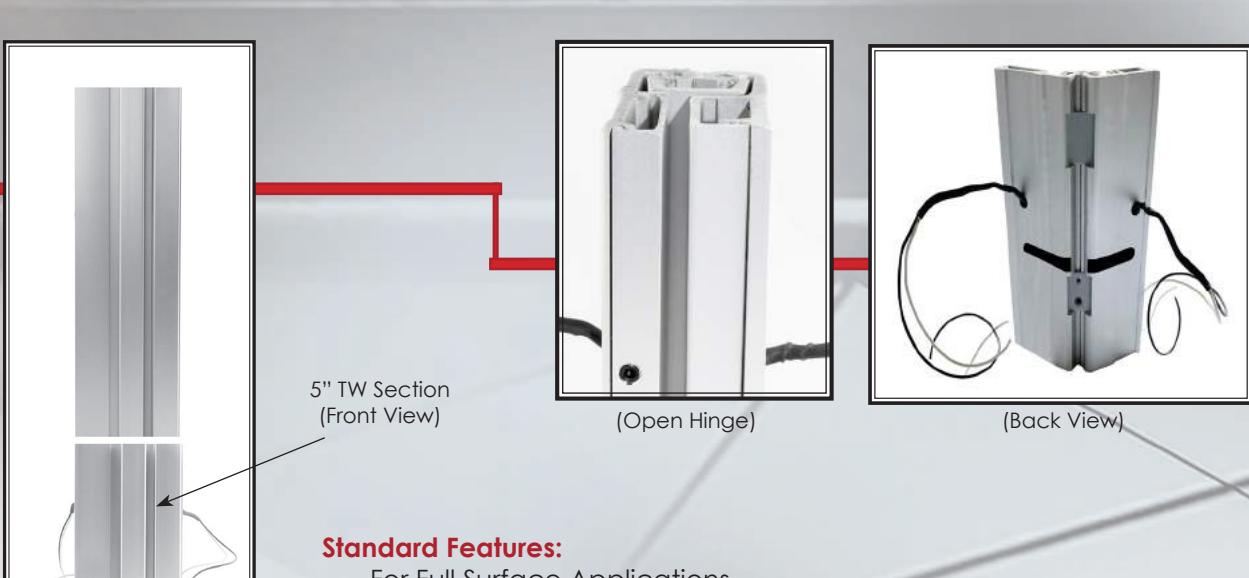

Introducing ABH's New Electrified Full Surface Hinge with concealed thru wires to carry electrical current between the frame and door. This 5" removable section is used with our Full-Length Full Surface Models, A570 & A571.

  • For Full Surface Applications
  • 5" Removable Section For ease of installation
  • 2 (22ga.) Super Flex Wire Standard
  • Available in Standard Finishes
    • Clear Anodized
    • Dark Bronze Anodized
    • Black Anodized

Specifications

Discription: Single Conductor #22 AWG miniature hook-up

Wire for applications requiring exreme flexibility.

Conductor: #22 AWG 168/44 (0.002") Soft Bare Copper LHL.

Insulation: Proprietary formulation PVC 0.010" NOM. Wall meets

VW-1 Flame requirements.

Diameter: 0.053" + 0.003"

Resistance: 16.7 OHMS MAX. @ 20◦C, per 1000 ft. Voltage Rating: 600 Volts RMS, depending on specification.

Available as RoHS Compliant.

ABH20201201

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143

1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A570 ALUMINUM GEARED HINGE

©2017 ABH Mfg., Inc. printed in USA

PAGE 1 OF 1 REVISED 9-10-20

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A570-AHT OPTION, ADVANCED HOSPITAL TIP-1-01.DWG

A570 - "AHT" OPTION ADVANCED HOSPITAL TIP

© 2020 ABH Mfg., Inc. printed in USA

PAGE 1 OF 2 ISSUED 01-31-20

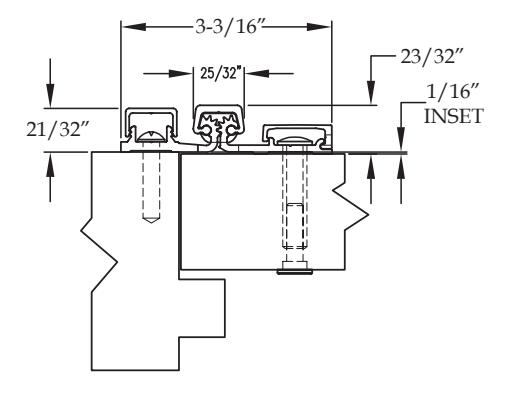

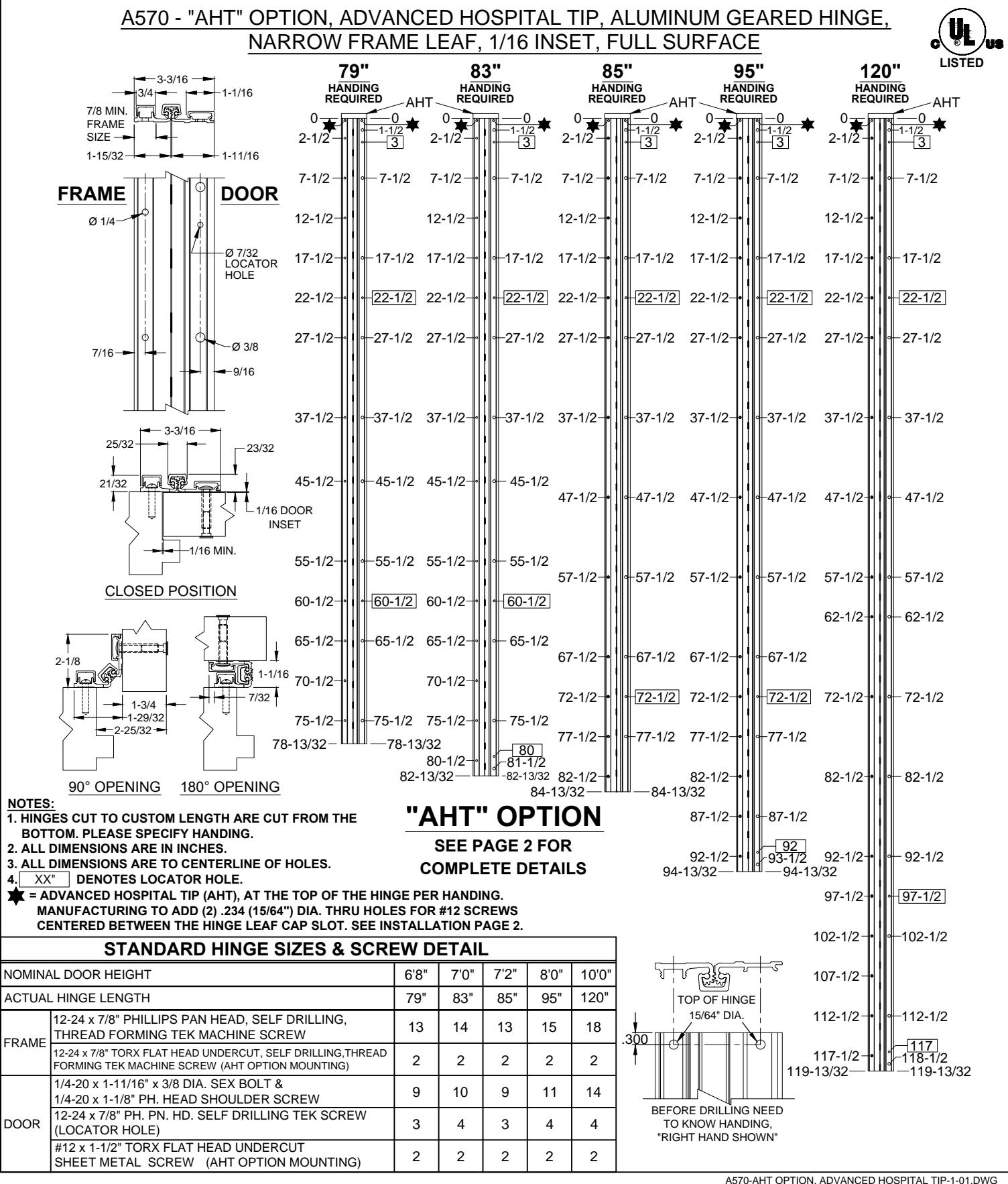

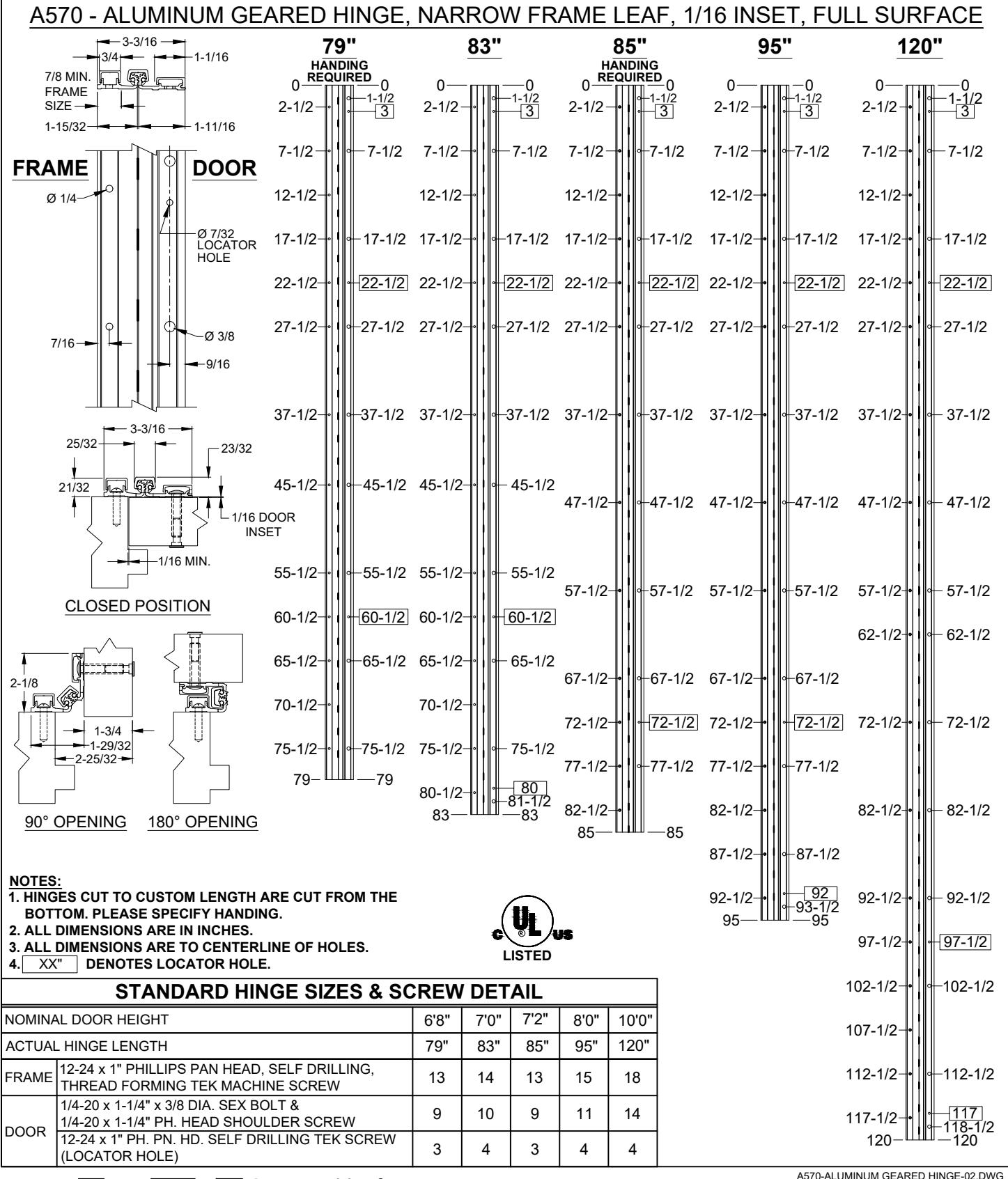

A570 - "AHT" OPTION, ADVANCED HOSPITAL TIP, ALUMINUM GEARED HINGE, NARROW FRAME LEAF, 1/16 INSET, FULL SURFACE

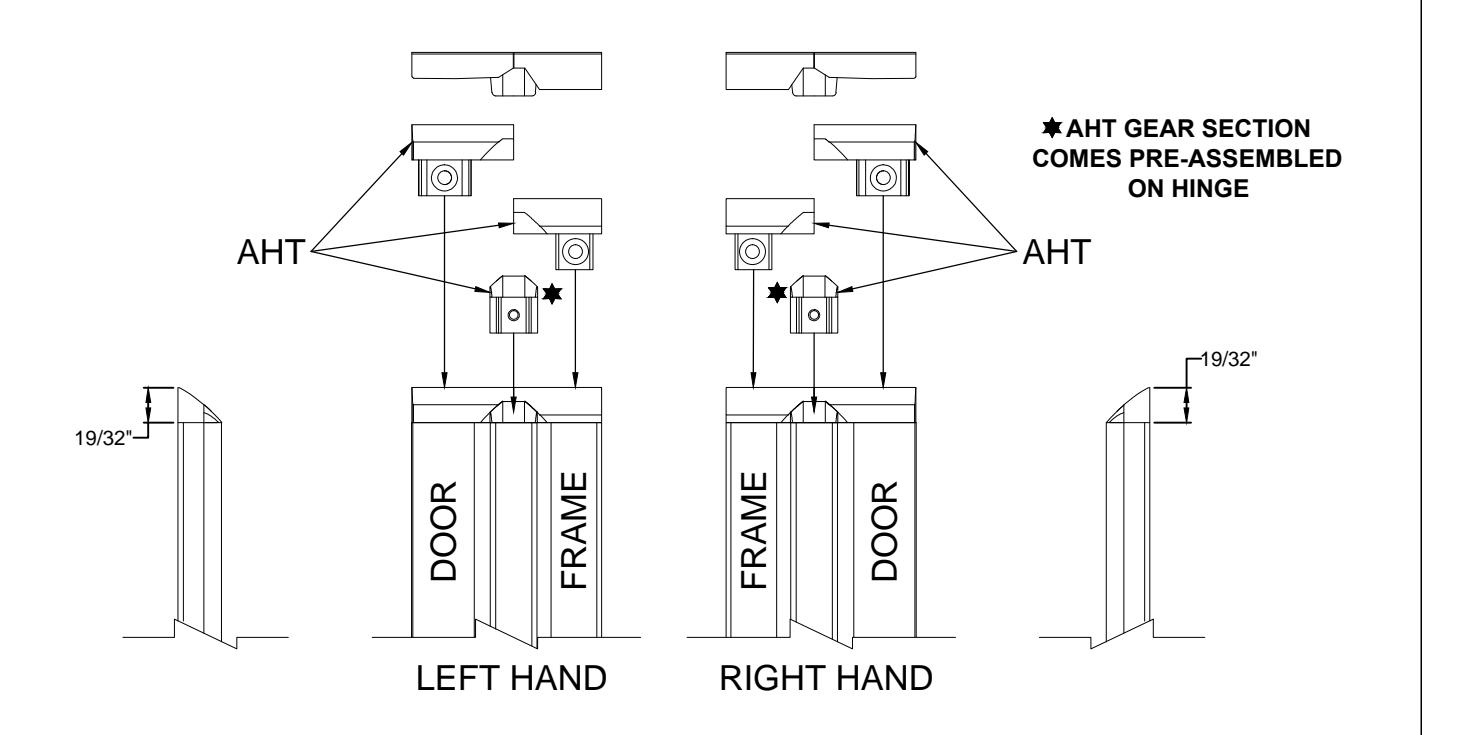

A570 AHT (ADVANCED HOSPITAL TIP) INSTALLATION INSTRUCTIONS
