View PDFStainless Steel Continuous Pin & Barrel Hinges
Innovation, Quality, Customer Service...

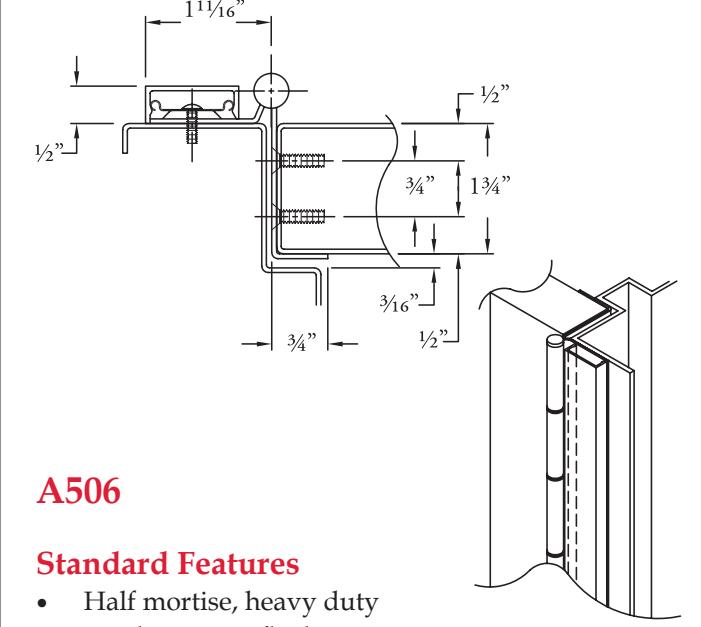

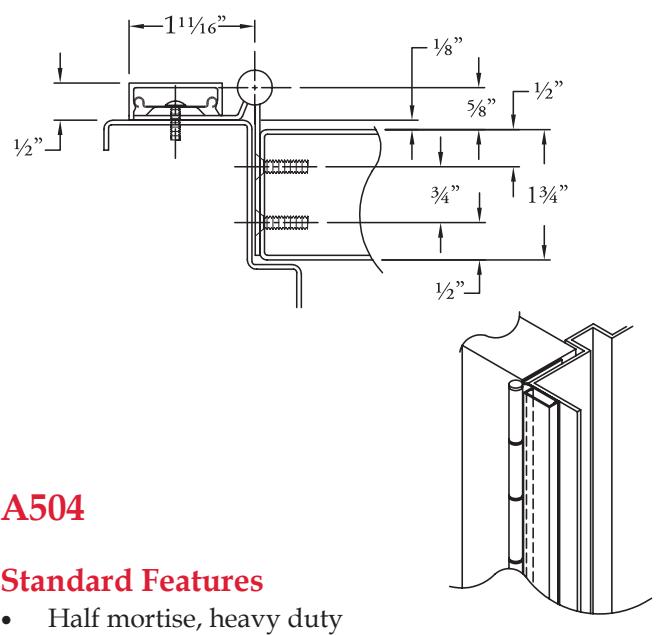

Half Mortise
- ⅛" door inset
- 48" door width maximum
- 600 lbs. door weight maximum
- Frame leaf fastener cover is clear anodized aluminum
- • Fasteners : 10-24 x ⅞" undercut, self-drilling, thread-forming tek machine screws, stainless steel for door and ¼-20 x ¾" round head selfdrilling tek machine screws, zinc plated for frame
- • Lengths : 78-¾", 83-⅛", 85", 95" and 118-¾"
- • Finishes : US32D Satin Stainless Steel or US32 Bright Stainless Steel
-
• Fire Rating
doors, based on the following
- 20 minutes wood doors
- 90 minutes hollow metal and composite
- 3 hours hollow metal doors
Options Available
• availability and details
- •
- Door edge guard on stop side only
- 48" door width maximum
- 600 lbs. door weight maximum
- Frame leaf fastener cover is clear anodized aluminum
- • Fasteners : 10-24 x ⅞" undercut, self-drilling, thread-forming tek machine screws, stainless steel for door and ¼-20 x ¾" round head selfdrilling tek machine screws, zinc plated for frame
- • Lengths : 78-¾", 83-⅛", 85", 95" and 118-¾"
- • Finishes : US32D Satin Stainless Steel or US32 Bright Stainless Steel
-
• Fire Rating
doors, based on the following
- 20 minutes wood doors
- 90 minutes hollow metal and composite
- 3 hours hollow metal doors
Options Available
• availability and details
Stainless Steel Continuous Pin & Barrel Hinges
Electrical Options
"TW" – Concealed Electrical Thru-Wire
Transfers power from the frame to the door in a discreet manner.
- • TW4 (4) 30 AWG wires
- • TW8 (8) 30 AWG wires
- • TW12 (12) 30 AWG wires
"EZ" – Concealed Electrical Thru-Wire with Molex® Connectors
Transfers power from the frame to the door in a discreet manner. Molex® plug-in connectors provided for installation ease.
- • EZ4 (4) 30 AWG wires with Molex® connectors
- • EZ8 (8) 30 AWG wires with Molex® connectors
- • EZ12 (12) 30 AWG wires with Molex® connectors
"M" – Moveable Electrical Access Prep
Hinge is supplied as one complete piece (pin and barrel are continuous), but both hinge leaves are cut to allow access to the electrical section without having to uninstall the hinge.
"PT"- Cut-out Prep for Power Transfer
Hinge is prepped for the use electrical power transfer to be used – must specify which model power transfer unit being used. See ABH Electrical Power Transfer section in the catalog for available models (sold separately).
"AMS" – Adjustable Monitoring Switch
Adjustable button switch is installed in the frame leaf to monitor the door position. Specify handing.
"CT" Concealed Electrical Thru-Wire and Monitor Switch
Monitor switch is installed in the frame leaf to monitor the door position while the wires transfer power from the frame to the door in a discreet manner.
- • CT4 (4) 30 AWG wires
- • CT8 (8) 30 AWG wires
- • CT12 (12) 30 AWG wires
| A5500WT | |||||||||
Stainless Steel Continuous Pin & Barrel Hinges

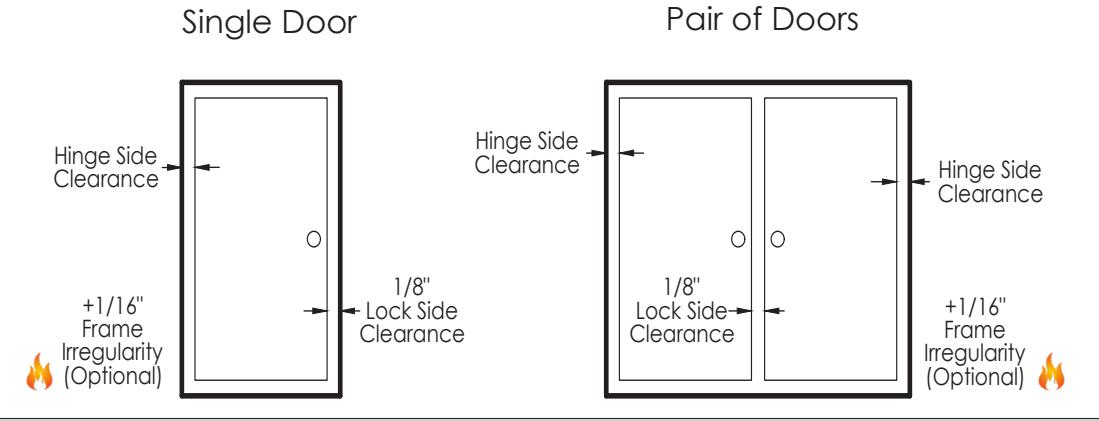

Door Clearance Chart
1222 Ardmore Avenue Itasca, IL 60143 Tel: 630-875-9900 Fax: 800-932-9224 800-932-9224
www.abhmfg.com abhinfo@abhmfg.com
| Single Door- Square Edged | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| HINGE MODEL |
HINGE SIDE
CLEARANCE (Single) |
+ |
LOCK SIDE
CLEARANCE |
+ |
***FRAME
IRREGULARITY (OPTIONAL) |
= |
SINGLE DOOR
TOTAL UNDERSIZE |
||||
|
A500*, A500RB, A510**,
A515, A515RB, A525, A529, AC500* |
1/4" | + | 1/8" | + | 1/16" | = | 7/16" | ||||
|
A505**, A505RB**,
A526**, A5500*, A5515, A5505 |
5/16" | + | 1/8" | + | 1/16" | = | 1/2" | ||||
|
A503, A504*, A506,
A511 |
1/8" | + | 1/8" | + | 1/16" | = | 5/16" | ||||
| A502 | 3/32" | + | 1/8" | + | 1/16" | = | 9/32'' | ||||
| Pairs of Doors- Square Edged | |||||||||||
| HINGE MODEL |
HINGE SIDE
CLEARANCE (Pair) |
+ |
LOCK SIDE
CLEARANCE |
+ |
***FRAME
IRREGULARITY (OPTIONAL) |
= |
PAIR OF DOORS
TOTAL UNDERSIZE |
||||
|
A500*, A500RB, A510,**
A515, A515RB, A529, AC500* |
1/2" | + | 1/8" | + | 1/16" | = | 11/16" | ||||
|
A505**,A505RB**,
A526**, A5500*, A5515, A5505 |
5/8" | + | 1/8" | + | 1/16" | = | 13/16" | ||||
| A503, A504*, A506, A511 | 1/4" | + | 1/8" | + | 1/16" | = | 7/16" | ||||
| A502 | 3/16" | + | 1/8" | + | 1/16" | = | 3/8" | ||||
- For beveled door, standard clearance is applied to the high side of the door. Refer to template.
- ** When using the optional "AS" Adjustable Studs, add 1/8" additional for adjustment clearance. (A505, A510 & A526 Only)
- *** 1/16" Frame Irregularity Allowance, Optional and included in all Total Door Undersize for single and pairs of doors
® www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

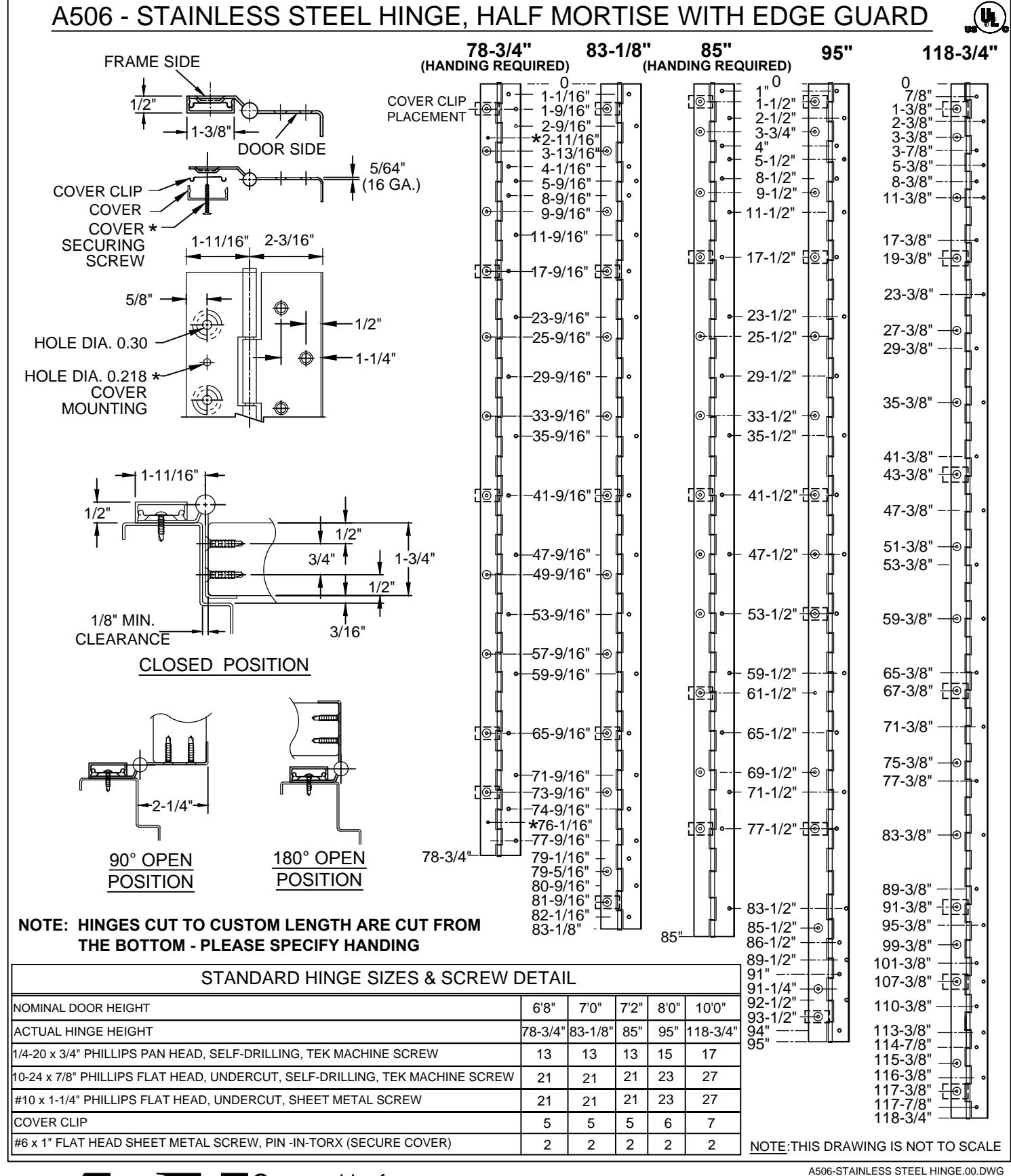

A506-51AINLESS STEEL HINGE.00.DWG
A506 STAINLESS STEEL HINGE
© 2015 ABH Mfg., Inc. printed in USA
PAGE 1 OF 1 ISSUED 06-04-15
CUTTING STAINLESS STEEL HINGES TO CUSTOM LENGTHS
- 1. DETERMINE THE AMOUNT THAT THE HINGE NEEDS TO BE SHORTENED. NOTE THE HAND OF THE HINGE BEFORE BEGINING TO LAY OUT YOUR CUT. ALL CUTS WILL BE DONE AT THE BOTTOM OF YOUR HINGE ASSEMBLY MAKING SURE TO LEAVE THE GANG HOLE PATTERN AT THE TOP.
- MEASURE FROM THE TOP DOWN AND SCRIBE A CUT LINE ON YOUR LEAF AT THE DESIRED LENGTH.
- 3. CUT THE HINGE TO LENGTH WITH A HACKSAW, GOING THROUGH THE LEAFS, BARREL AND PIN. IF NECESSARY, USE A FILE TO REMOVE ALL SHARP EDGES AFTER CUTTING.
- 4. MOVE THE STAINLESS STEEL PIN OUT APPROXIMATELY 1" MAKING SURE THE ASSEMBLY STAYS TOGETHER AS ONE UNIT. REMOVE " FROM THE END OF THE PIN USING A HACKSAW AND THEN PUSH BACK INTO IT'S ORIGINAL POSITION.

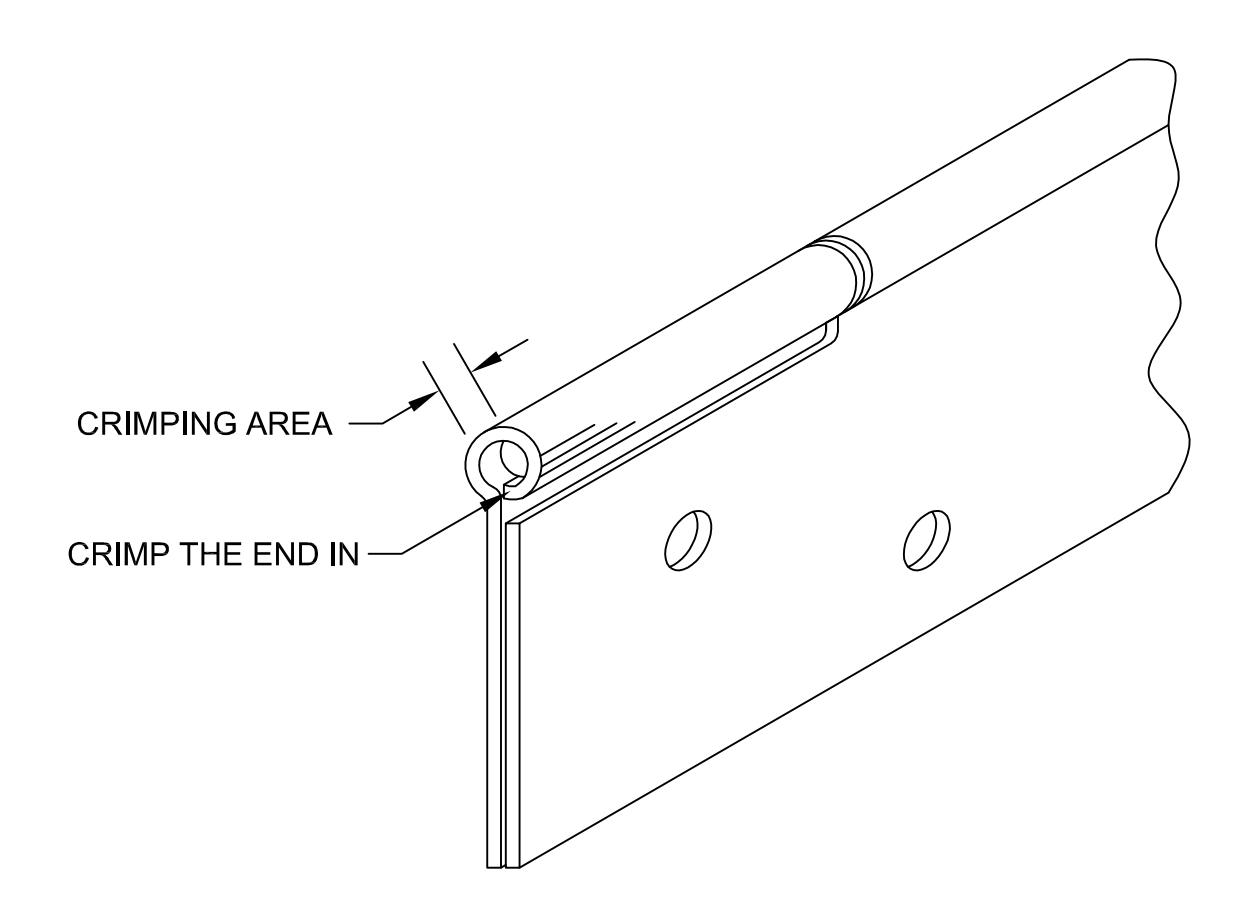

- 5. USING A PAIR OF VICE-GRIPS, CRIMP THE END IF THE BARREL MAKING SURE THE HINGE PIN WILL NOT SLIDE OUT.
ABH suggests ordering the hinge cut to length at factory. If the hinge is field cut, it will void the warranty.
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
SS HINGE CUSTOM CUTTING LENGTHS-00.DWG
STAINLESS STEEL HINGE CUSTOM CUTTING LENGTHS
