Stainless Steel Continuous Pin & Barrel Hinges

Innovation, Quality, Customer Service...

Full Concealed

Standard Features

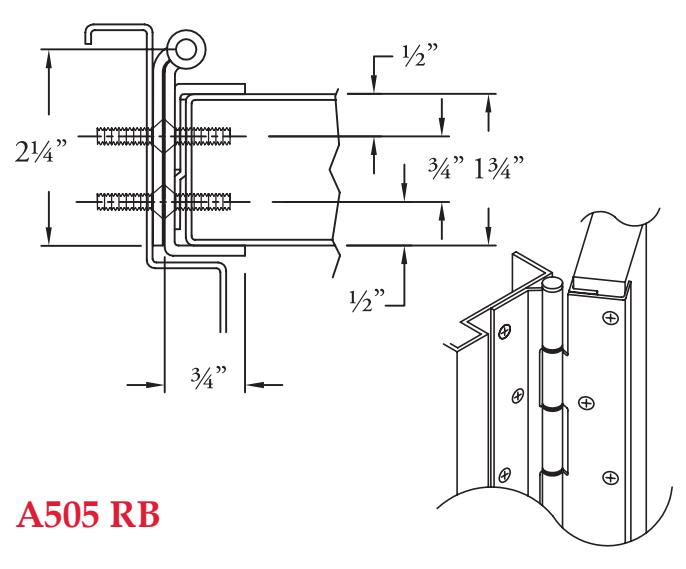

Raised barrel (swaged) for door set back in deep reveals
Full concealed, heavy duty
•
Door edge guard on both faces of door
48" door width maximum
600 lbs. door weight maximum
• Fasteners : 10-24 x ⅞" undercut, self-drilling, thread-forming tek machine screws, stainless steel and #10 x 1-¼" undercut wood screws, stainless steel
• Lengths: 78-¾", 83-⅛", 85", 95" and 118-¾"
• Finishes: US32D Satin Stainless Steel or US32 Bright Stainless Steel
• Fire Rating (U.S.A. and Canada) on 4'0" x 10'0" doors, based on the following
- 20 minutes wood doors
- 90 minutes hollow metal and composite
- 3 hours hollow metal doors

Options Available

• availability and details

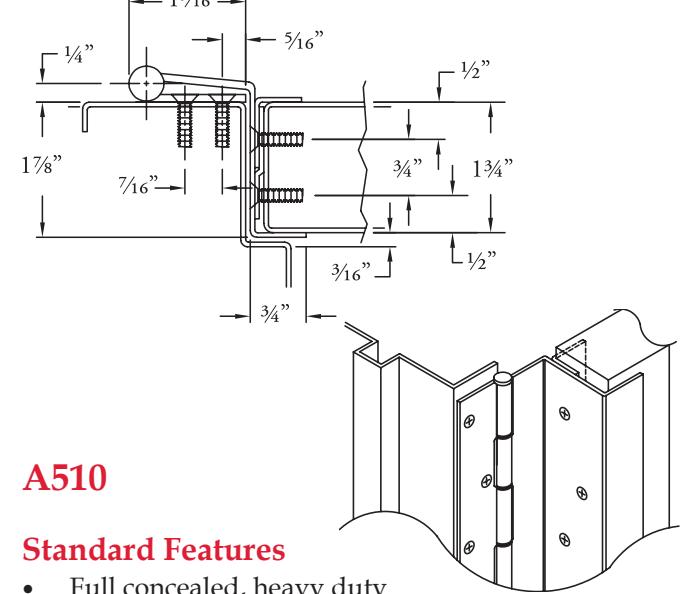

Full concealed, heavy duty
•
Swing clear application
Door edge guard on both faces of door
48" door width maximum
600 lbs. door weight maximum
• Fasteners : 10-24 x ⅞" undercut, self-drilling, thread-forming tek machine screws, stainless steel and #10 x 1-¼" undercut wood screws, stainless steel
• Lengths : 78-¾", 83-⅛", 85", 95" and 118-¾"
• Finishes : US32D Satin Stainless Steel or US32 Bright Stainless Steel
• Fire Rating doors, based on the following
- 20 minutes wood doors
- 90 minutes hollow metal and composite
- 3 hours hollow metal doors

Options Available

• availability and details

Stainless Steel Continuous Pin & Barrel Hinges

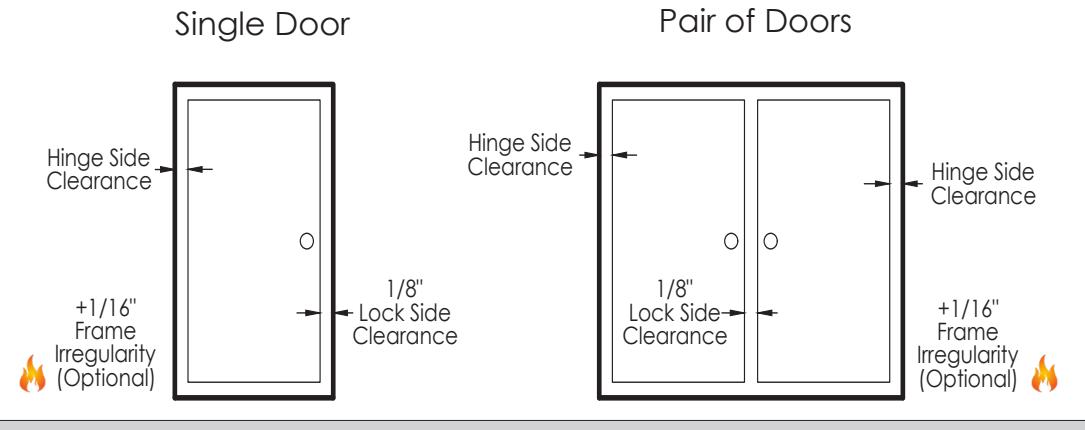

Door Clearance Chart

1222 Ardmore Avenue Itasca, IL 60143 Tel: 630-875-9900 Fax: 800-932-9224 800-932-9224

www.abhmfg.com abhinfo@abhmfg.com

Single Door- Square Edged
HINGE MODEL	HINGE SIDE CLEARANCE (Single)	+	LOCK SIDE CLEARANCE	+	***FRAME IRREGULARITY (OPTIONAL)	=	SINGLE DOOR TOTAL UNDERSIZE
A500, A500RB, A510, A515, A515RB, A525, A529, AC500	1/4"	+	1/8"	+	1/16"	=	7/16"
A505, A505RB, A526*, A5500, A5515, A5505	5/16"	+	1/8"	+	1/16"	=	1/2"
A503, A504*, A506, A511	1/8"	+	1/8"	+	1/16"	=	5/16"
A502	3/32"	+	1/8"	+	1/16"	=	9/32"
Pairs of Doors- Square Edged
HINGE MODEL	HINGE SIDE CLEARANCE (Pair)	+	LOCK SIDE CLEARANCE	+	***FRAME IRREGULARITY (OPTIONAL)	=	PAIR OF DOORS TOTAL UNDERSIZE
A500, A500RB, A510,* A515, A515RB, A529, AC500*	1/2"	+	1/8"	+	1/16"	=	11/16"
A505,A505RB, A526*, A5500, A5515, A5505	5/8"	+	1/8"	+	1/16"	=	13/16"
A503, A504*, A506, A511	1/4"	+	1/8"	+	1/16"	=	7/16"
A502	3/16"	+	1/8"	+	1/16"	=	3/8"

For beveled door, standard clearance is applied to the high side of the door. Refer to template.
** When using the optional "AS" Adjustable Studs, add 1/8" additional for adjustment clearance. (A505, A510 & A526 Only)
*** 1/16" Frame Irregularity Allowance, Optional and included in all Total Door Undersize for single and pairs of doors

ABH MANUFACTURING INC.

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143

630.875.9900; FAX 800.9FAXABH (932.9224)

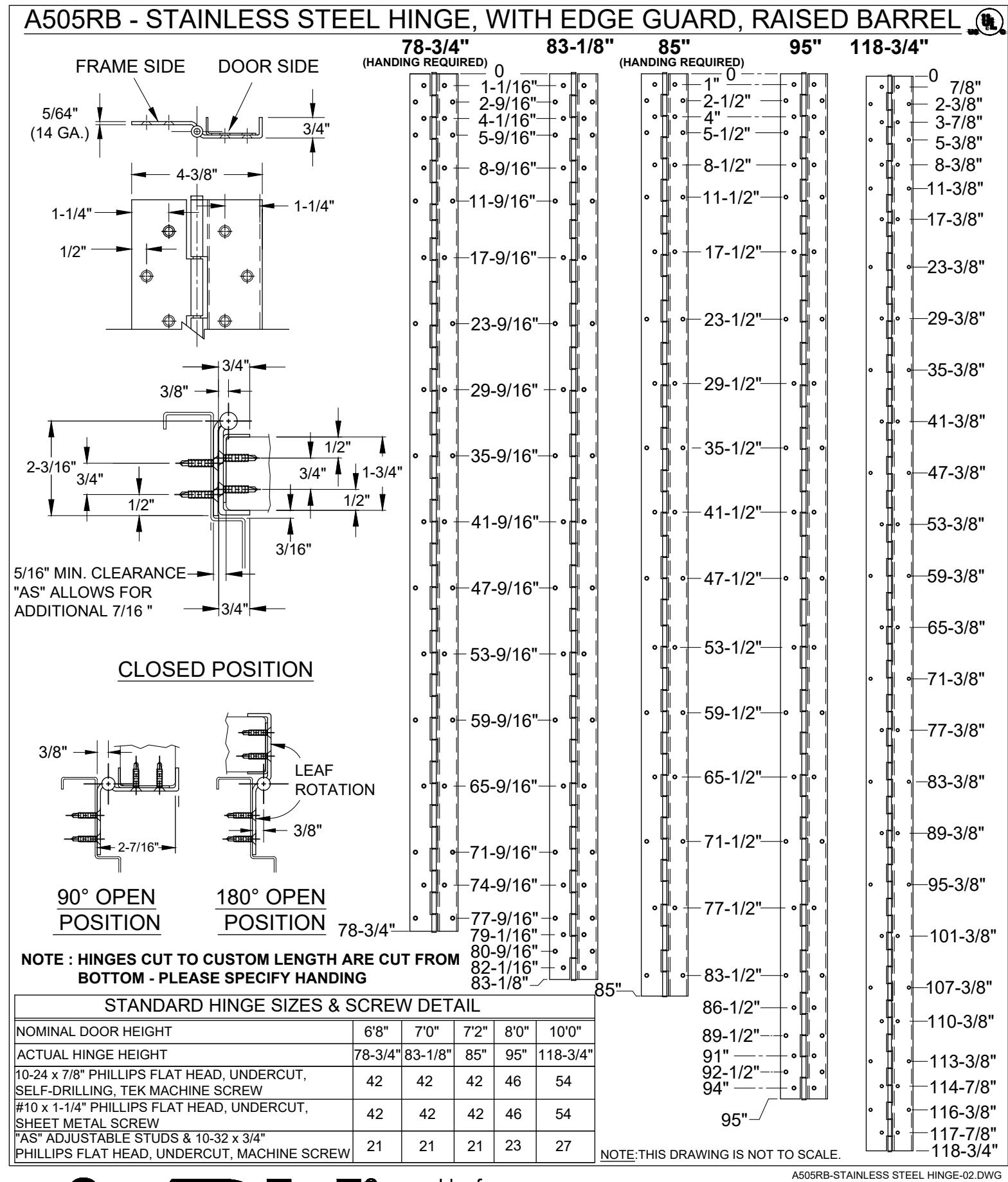

A505RB STAINLESS STEEL HINGE

PAGE 1 OF 1 REVISED 02-04-22

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc.

1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

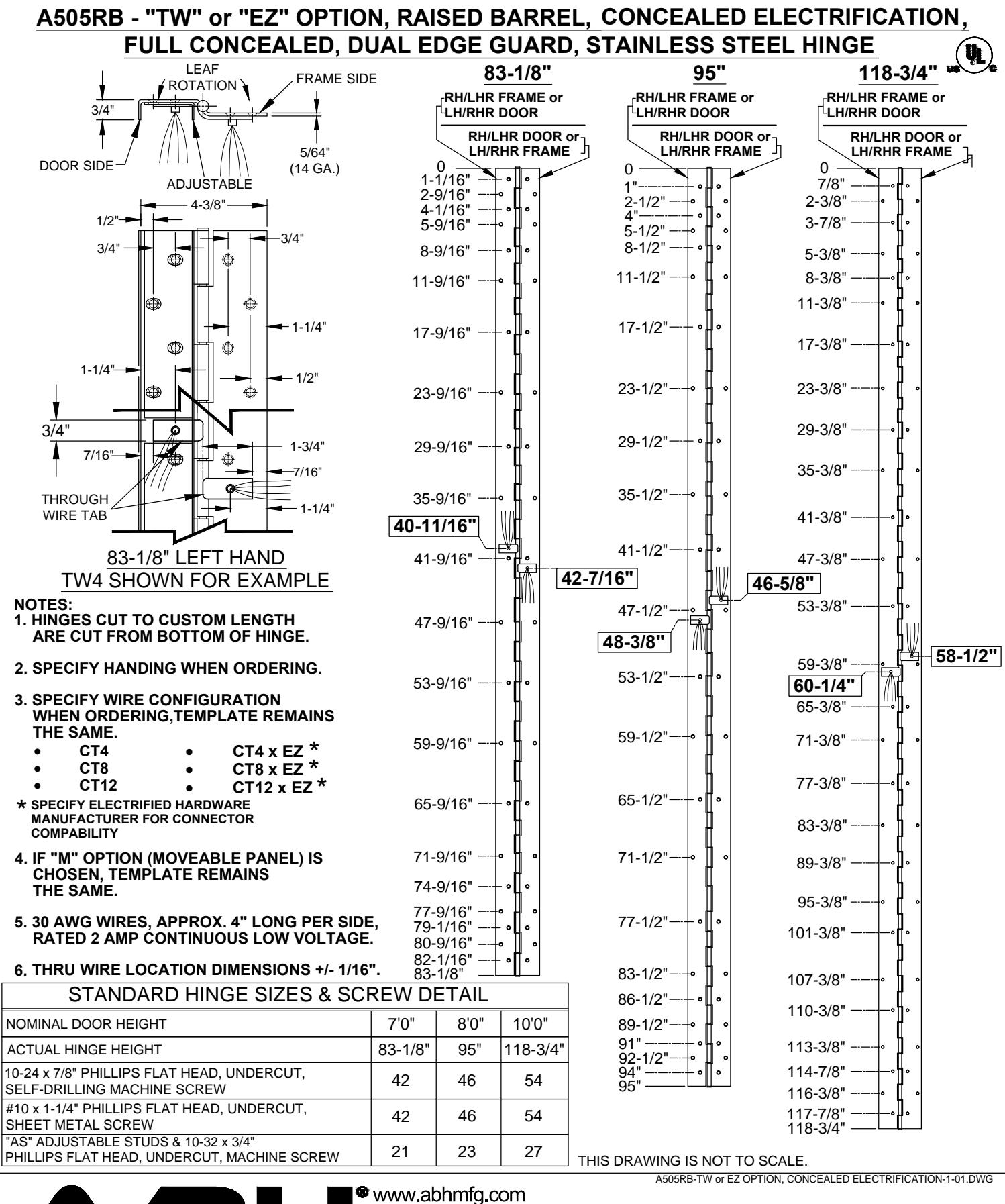

A505RB - "TW" or "EZ" OPTION CONCEALED ELECTRIFICATION

PAGE 1 OF 2 REVISED 11-14-16

www.abhmfg.com

E-mail: abhinfo@abhmfg.com As Architectural Builders Hardware Mfg., Inc.

1222 Ardmore Ave., Itasca, IL 60143 630,875,9900; FAX 800,9FAXABH (932,9224)

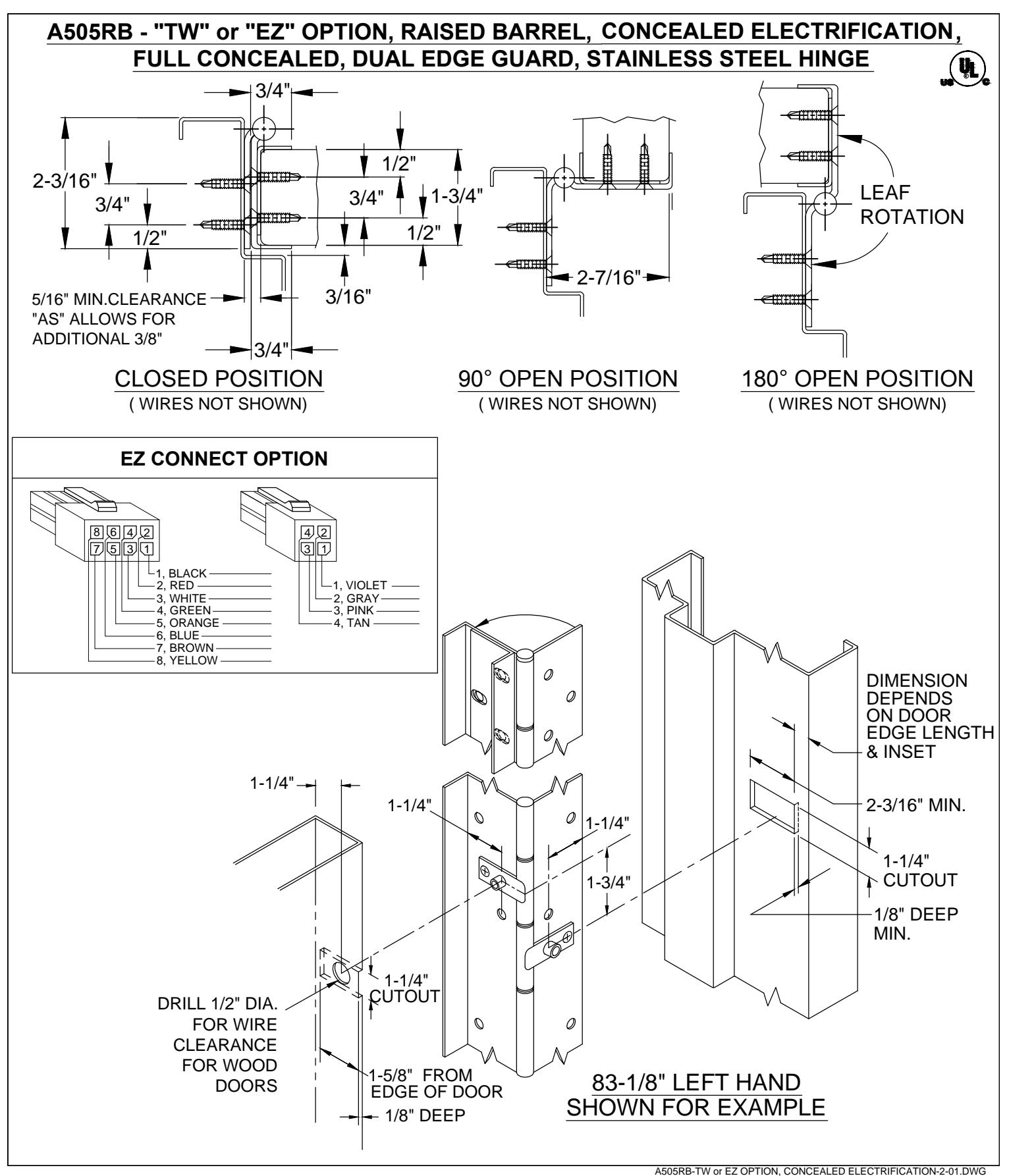

A505RB - "TW" or "EZ" OPTION CONCEALED ELECTRIFICATION

PAGE 2 OF 2 REVISED 11-14-16

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900: FAX 800.9FAXABH (932,9224)

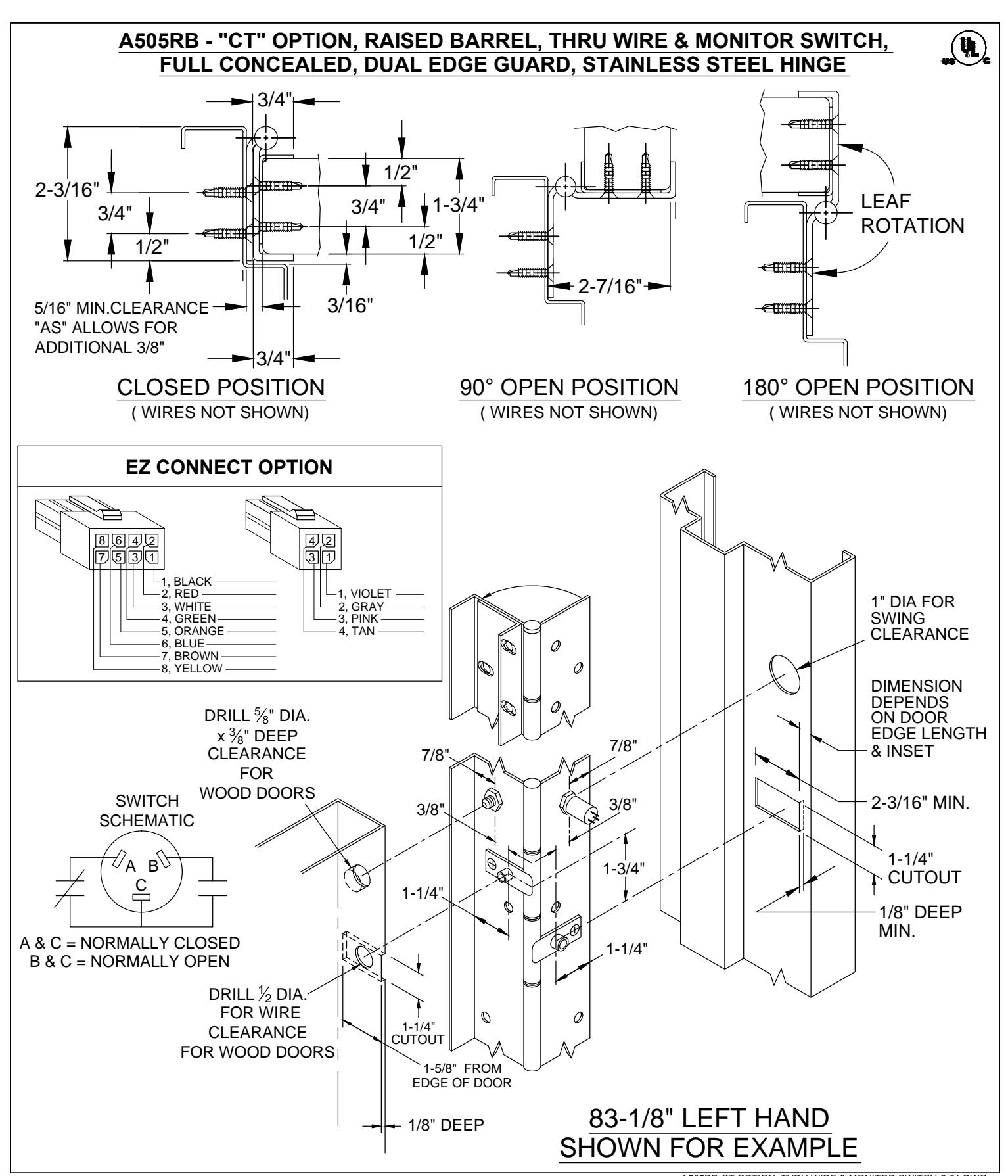

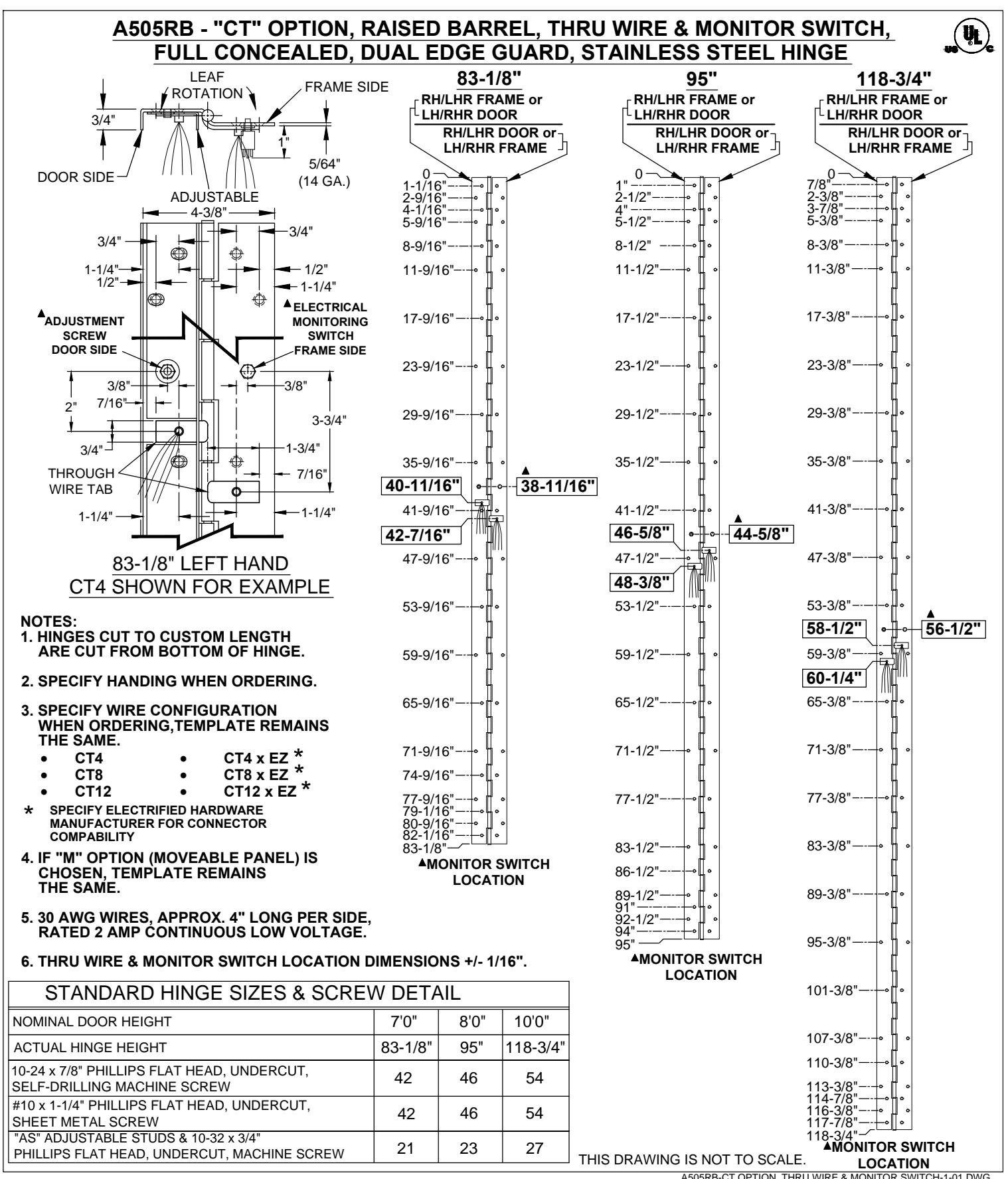

A505RB - "CT" OPTION THRU WIRE & MONITOR SWITCH

PAGE 1 OF 2 REVISED 11-14-16

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932,9224)

A505RB-CT OPTION, THRU WIRE & MONITOR SWITCH-2-01.DWG

A505RB - "CT" OPTION THRU WIRE & MONITOR SWITCH

PAGE 2 OF 2 REVISED 11-14-16

CHS-1, SLIP-IN, 16GA. (1/16") STAINLESS STEEL SHIM 0.875 0.000 3.875 8.375 17.375 29.375 41.375 53.375 65.375 77.375 89.375 101.375 110.375 114.875 117.875 118 3/4 95" 118-3/4" 4 8 1/2 17 1/2 29 1/2 41 1/2 53 1/2 65 1/2 77 1/2 86 1/2 94 95 1 0 83-1/8" 0 1.063 4.063 8.563 17.563 29.563 41.563 53.563 65.563 74.563 79.063 82.063 83-1/8 0.750 0.375 0.188 DETAIL A DETAIL A 0.375

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

CHS-1-SLIP-IN SHIM-00.DWG

SLIP-IN SHIM CHS-1

ISSUED 06-03-20 PAGE 1 OF 1

CHS-2, 16GA. STAINLESS STEEL SHIM 83-1/8" 95" 118-3/4" 5-1/2 8-1/2-DETAIL A 8-3/8 8-9/16 11-1/2-11-3/8 11-9/16 17-1/2-17-3/8 17-9/16-23-1/2-23-3/8 23-9/16 29-1/2-29-3/8 29-9/16 -35-1/2-35-3/8 35-9/16 41-1/2-41-3/8 41-9/16 47-1/2-47-3/8 47-9/16 -53-1/2-53-3/8 53-9/16 -59-1/2 59-3/8 59-9/16-65-1/2-65-3/8 65-9/16-71-1/2 71-3/8 71-9/16 74-9/16 77-1/2-77-3/8 83-1/2-83-3/8 86-1/2 89-3/8 95-3/8 101-3/8 DETAIL A 107-3/8 $\bigcirc$ 110-3/8 $\bigcirc$ .500"

MATERIAL: .063 STAINLESS STEEL

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

CHS-2- SHIM-00.DWG

CHS-2 SHIM

PAGE 1 OF 1 ISSUED 08-03-20

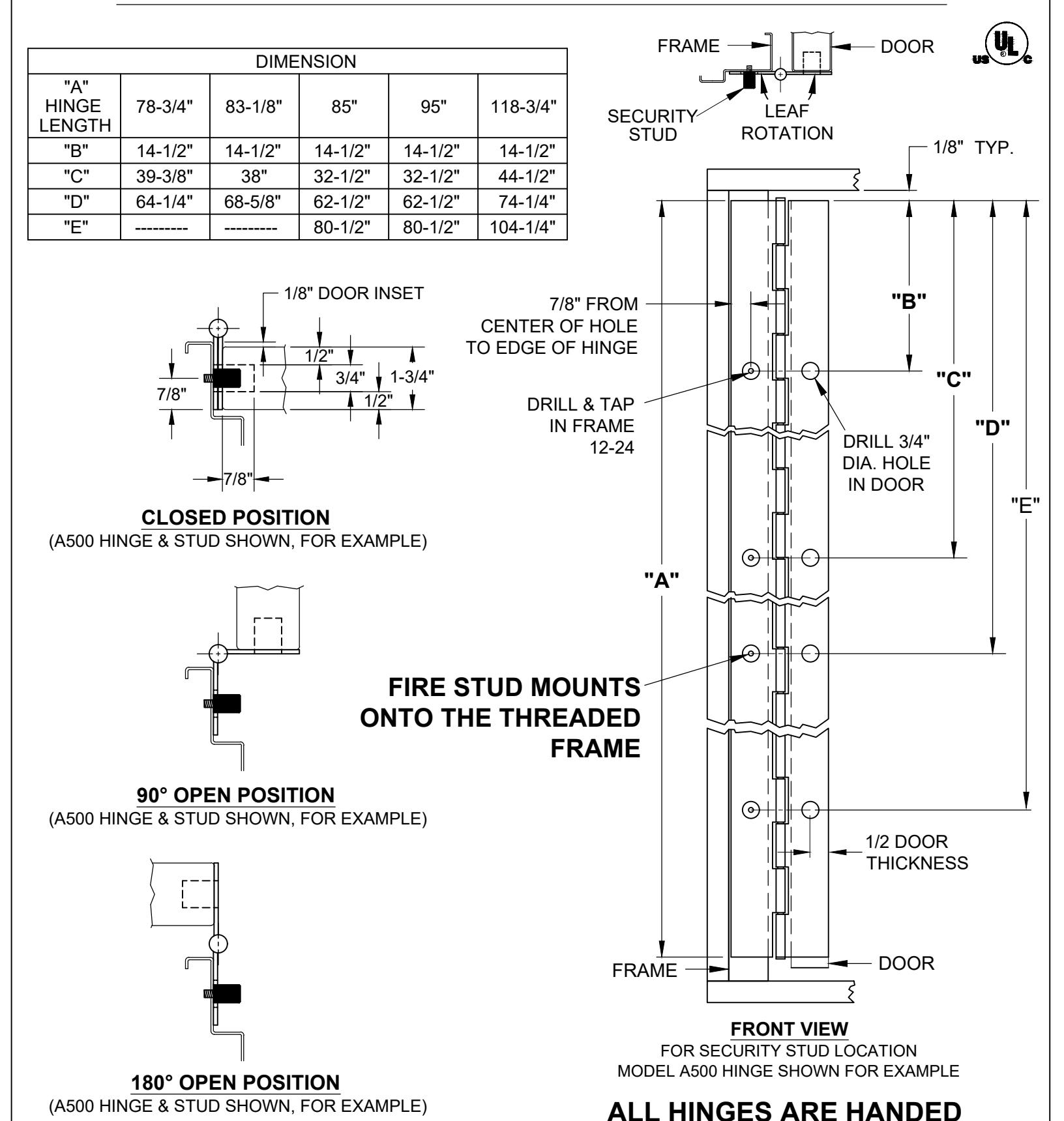

SECURITY "STUD" FOR FULL CONCEALED STAINLESS STEEL HINGES 14 & 12 GA.

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

FC SECURITY STUD LOCATION SS-05.DWG

FULL CONCEALED SECURITY STUD LOCATION INSTRUCTIONS

ISSUED 10-21-20
