Partition Door Full Surface Hinge

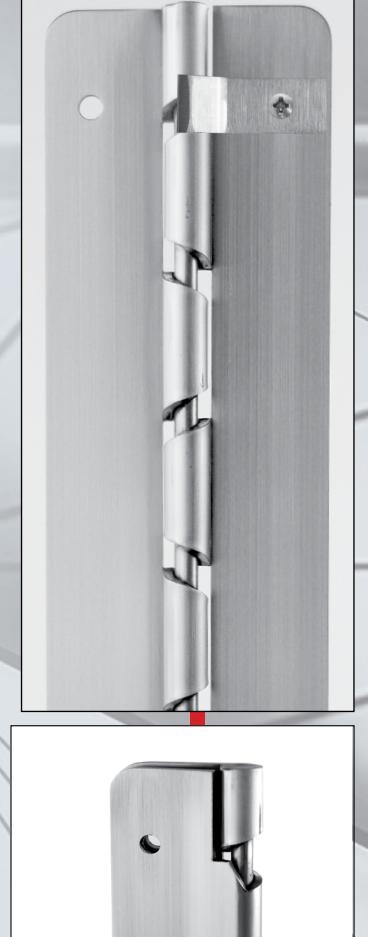

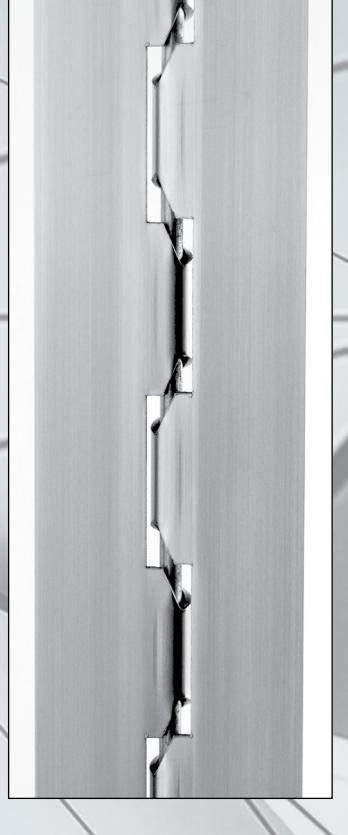

The ABH A501 Partition Door Stainless Steel Hinge is a Full Surface Hinge designed to be used in restrooms stalls or other similar applications. This hinge will keep the door open at 20° so the user knows there is nobody in the restroom stall and the hinge leaf's are angle cut so your door will close with the camming action.

Standard Features:

• Full Surface, Heavy Duty
• 12 Guage 304 Stainless Steel
• 20° Open Rest Position-Standard
• (3) Custom Stops Provided for 100° Opening
• 48" Door Width Maximum

Finishes:

• US32D- Satin Stainless Steel
• Custom Powder Coating Available

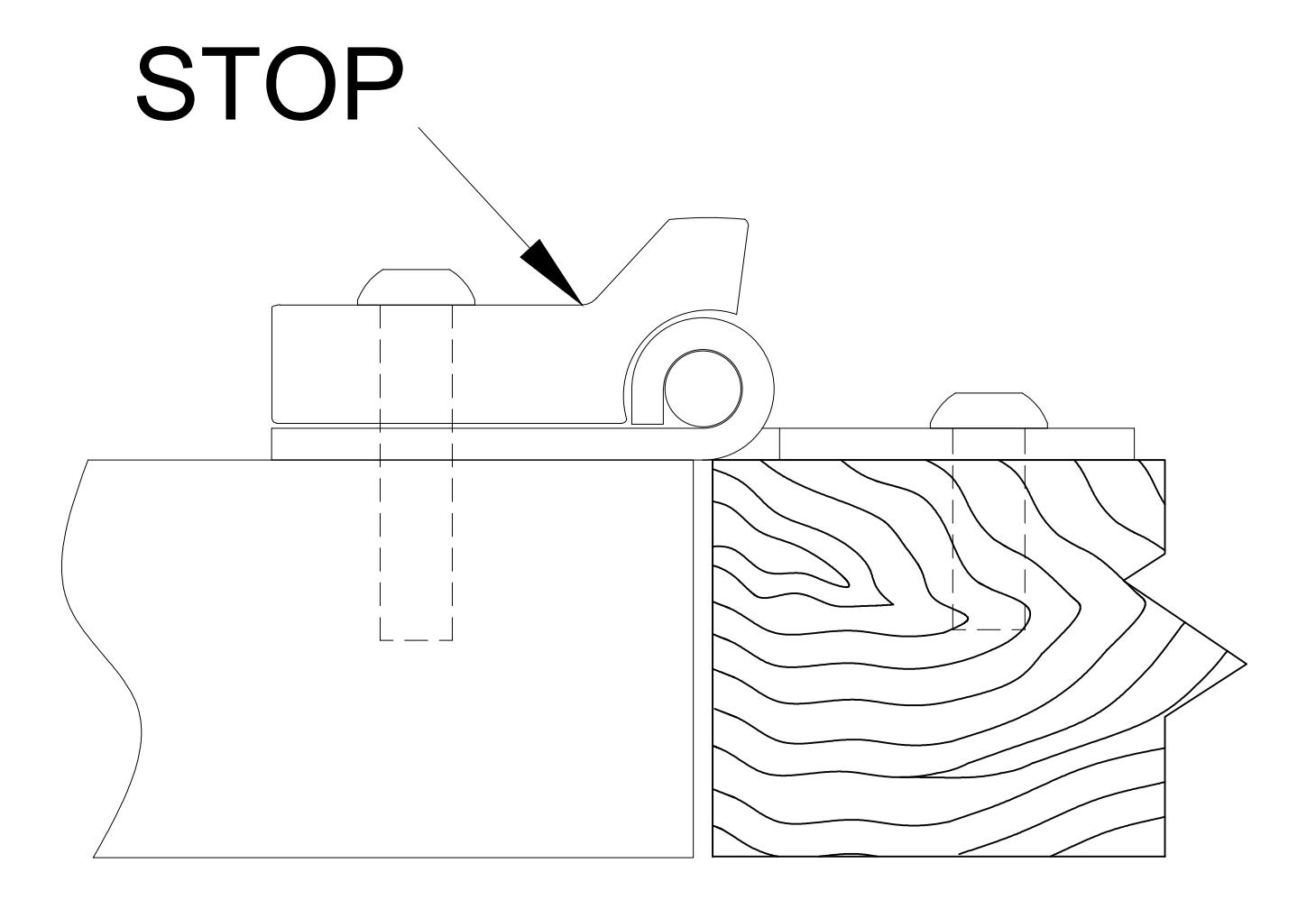

Add-on Stop

CUSTOM A501 - 57" FULL SURFACE CAM HINGE, STAINLESS STEEL 57"(4'-9") .109(12 GA.) TACK WELD PIN — 2-63/64" — (APPROX 3") STOP 1-63/64" 12" 1/16" MIN. -1/2" TYP. 23" Ø.250 THRU HOLES (12 PLACES) STOP Ø.250 THRU HOLES (14 PLACES) STOP 34" Full Closed Position SURFACE MOUNT 82° 20° 45" STOP STOP STOP 98° 20° Open Rest Position 56" SURFACE MOUNT 57" 82° Full Open Position w/ Stops SURFACE MOUNT NOTE: 1. (3) CUSTOM STOPS PROVIDED FOR 100° OPENING. 2. TACK WELDED PIN - NOT STAKED SCREW DETAIL Stop DESCRIPTION QTY. 12 1/4-20x3/4" PAN HEAD MACHINE SCREW-PIN TORX HINGE 1/4-20x1-1/4" PAN HEAD MACHINE SCREW-PIN TORX STOP

A501-57"
