Stainless Steel Continuous Pin & Barrel Hinges

Full Concealed

Standard Features

Full concealed, heavy duty
⅛" door inset
48" door width maximum
600 lbs. door weight maximum
• Fasteners : 10-24 x ⅞" undercut, self-drilling, thread-forming tek machine screws, stainless steel and #10 x 1-¼" undercut wood screws, stainless steel
• Lengths : 78-¾", 83-⅛", 85", 95" and 118-¾"
• Finishes : US32D Satin Stainless Steel or US32 Bright Stainless Steel
• Fire Rating doors, based on the following
- 20 minutes wood doors
- 90 minutes hollow metal and composite
- 3 hours hollow metal doors

Options Available

• availability and details

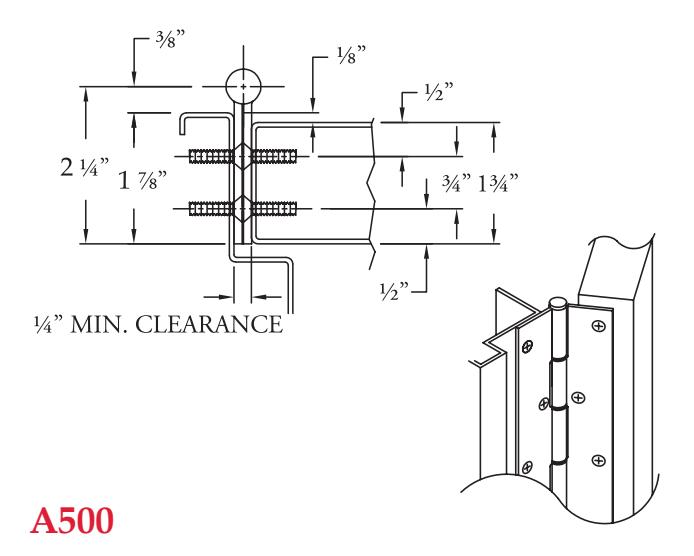

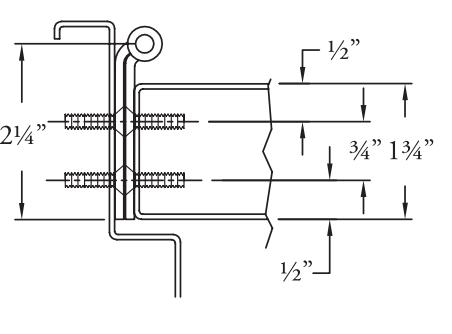

A500RB

Standard Features

Raised barrel (swaged) for door set back in deep reveals
Full concealed, heavy duty
48" door width maximum
600 lbs. door weight maximum
• Fasteners : 10-24 x ⅞" undercut, self-drilling, thread-forming tek machine screws, stainless steel and #10 x 1-¼" undercut wood screws, stainless steel
• Lengths: 78-¾", 83-⅛", 85", 95" and 118-¾"
• Finishes: US32D Satin Stainless Steel or US32 Bright Stainless Steel
• Fire Rating (U.S.A. and Canada) on 4'0" x 10'0" doors, based on the following
- 20 minutes wood doors
- 90 minutes hollow metal and composite
- 3 hours hollow metal doors

Options Available

• availability and details

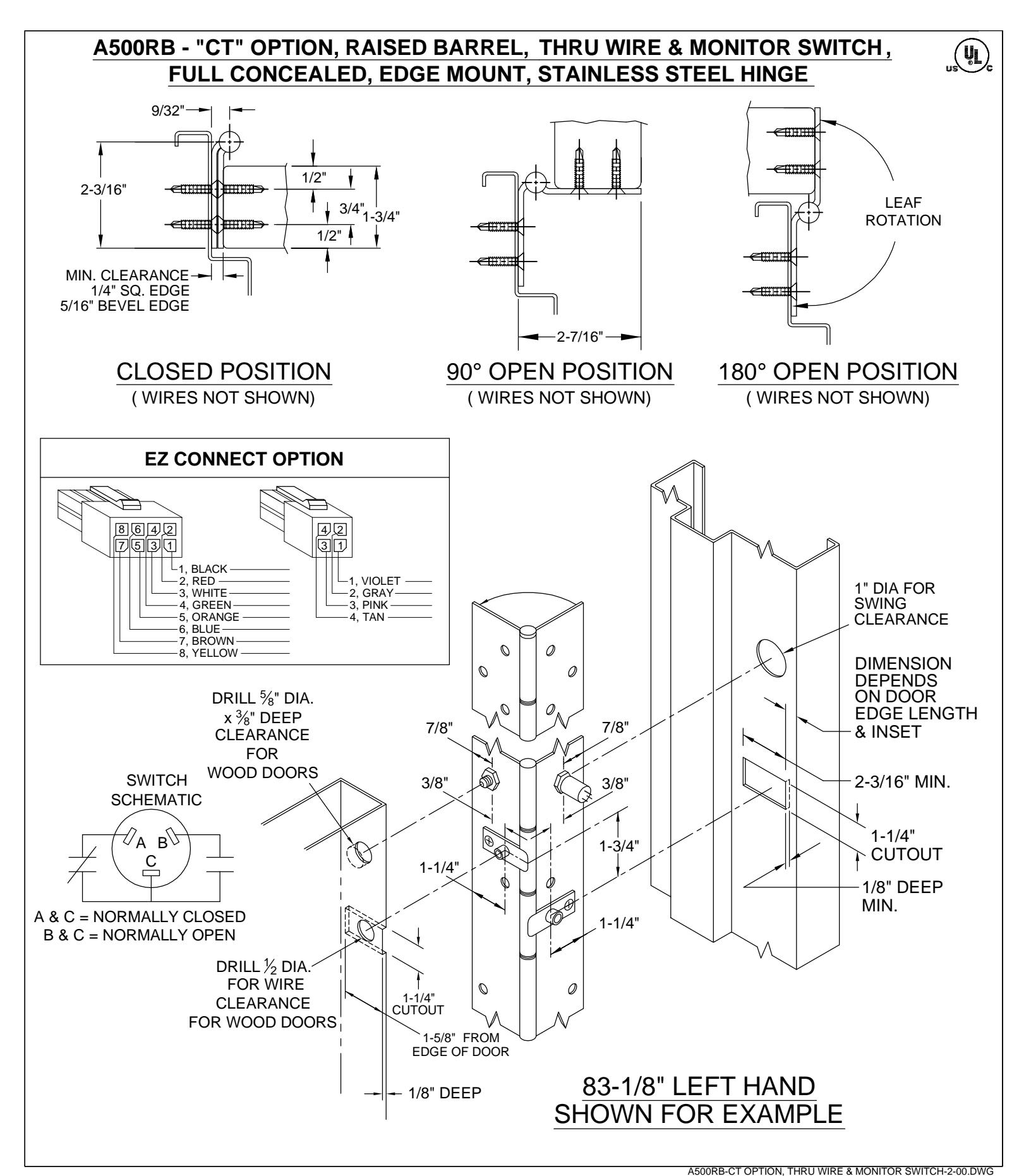

A500RB - "CT" OPTION, RAISED BARREL, THRU WIRE & MONITOR SWITCH, FULL CONCEALED, EDGE MOUNT, STAINLESS STEEL HINGE 83-1/8" DOOR SIDE 118-3/4" LEAF FRAME SIDE 95" ROTATION RH/LHR FRAME or RH/LHR FRAME or RH/LHR FRAME or LH/RHR DOOR LH/RHR DOOR LH/RHR DOOR RH/LHR DOOR or RH/LHR DOOR or-RH/LHR DOOR or-LH/RHR FRAME LH/RHR FRAME LH/RHR FRAME 5/64" (14 GA.) 1-1/4" 1-1/4 8-3/8" 8-1/2" 8-9/16" 1/2 11-3/8' 11-9/16"-11-1/2' ▲ ELECTRICAL ADJUSTMENT MONITORING SCREW SWITCH 17-1/2" 17-3/8" 17-9/16"-DOOR SIDE FRAME SIDE 3/8' 3/8 23-9/16"-23-1/2" 23-3/8" 7/16 3-3/4" 29-3/8 29-9/16"-29-1/2 1-3/4 THROUGH 7/16 35-9/16"-35-3/8" 35-1/2" WIRE TAB 38-11/16" 40-11/16" 1-1/4" 1-1/4" 41-3/8" 41-9/16" 41-1/2 46-5/8 42-7/16 44-5/8" 47-1/2 47-3/8 47-9/16" 83-1/8" LEFT HAND 48-3/8" CT4 SHOWN FOR EXAMPLE 53-9/16"-53-3/8 53-1/2 NOTES: 58-1/2" 56-1/2" 1. HINGES CUT TO CUSTOM LENGTH 59-3/8' 59-9/16"-ARE CUT FROM BOTTOM OF HINGE. 59-1/2" 60-1/4 2. SPECIFY HANDING WHEN ORDERING. 65-3/8' 65-9/16" 65-1/2" 3. SPECIFY WIRE CONFIGURATION WHEN ORDERING, TEMPLATE REMAINS 71-1/2 71-3/8 71-9/16"-THE SAME. CT4 x EZ * 74-9/16"-CT4 CT8 x EZ * CT8 77-1/2" 77-3/8" CT12 x EZ * 80-9/16 82-1/16 * SPECIFY ELECTRIFIED HARDWARE 83-3/81 83-1/2" MANUFACTURER FOR CONNECTOR ▲MONITOR SWITCH COMPABILITY 86-1/2 LOCATION 4. IF "M" OPTION (MOVEABLE PANEL) IS 89-1/2 89-3/8 CHOSEN, TEMPLATE REMAINS 92-1/2 THE SAME. 95-3/8" 5. 30 AWG WIRES, APPROX. 4" LONG PER SIDE. ▲MONITOR SWITCH RATED 2 AMP CONTINUOUS LOW VOLTAGE. LOCATION 101-3/8" 6. THRU WIRE & MONITOR SWITCH LOCATION DIMENSIONS +/- 1/16". STANDARD HINGE SIZES & SCREW DETAIL 107-3/8' NOMINAL DOOR HEIGHT 10'0' 110-3/8

SELF-DRILLING MACHINE SCREW

10-24 x 7/8" PHILLIPS FLAT HEAD, UNDERCUT,

ACTUAL HINGE HEIGHT

® www.abhmfg.com

83-1/8

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

118-3/4

A500RB - "CT" OPTION THRU WIRE & MONITOR SWITCH

A500RB-CT OPTION, THRU WIRE & MONITOR SWITCH-1-00.DW

▲MONITOR SWITCH

LOCATION

113-3/8

THIS DRAWING IS NOT TO SCALE.

@ www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A500RB - "CT" OPTION THRU WIRE & MONITOR SWITCH

PAGE 2 OF 2 ISSUED 04-20-16

* SPECIFY ELECTRIFIED HARDWARE

7. 30 AWG WIRES, APPROX. 4" LONG PER SIDE

8. THRU WIRE & MONITOR SWITCH LOCATION DIMENSIONS +/- 1/16".

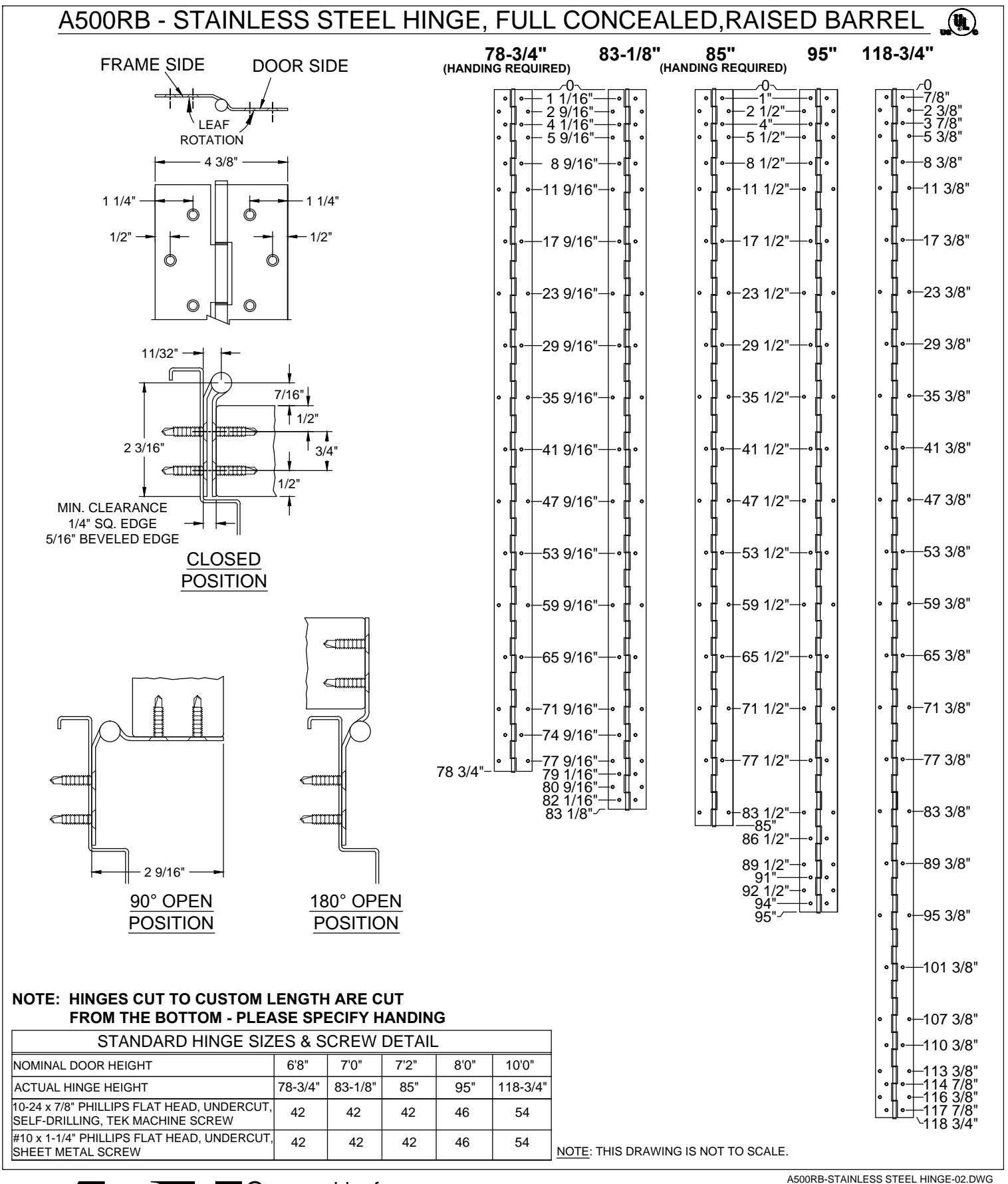

STANDARD HINGE SIZES & SCREW DETAIL
NOMINAL DOOR HEIGHT	7'0"	8'0"	10'0"
ACTUAL HINGE HEIGHT	83-1/8"	95"	118-3/4"
10-24 x 7/8" PHILLIPS FLAT HEAD, UNDERCUT, SELF-DRILLING MACHINE SCREW	42	46	54
#10 x 1-1/4" PHILLIPS FLAT HEAD, UNDERCUT, SHEET METAL SCREW	42	46	54

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

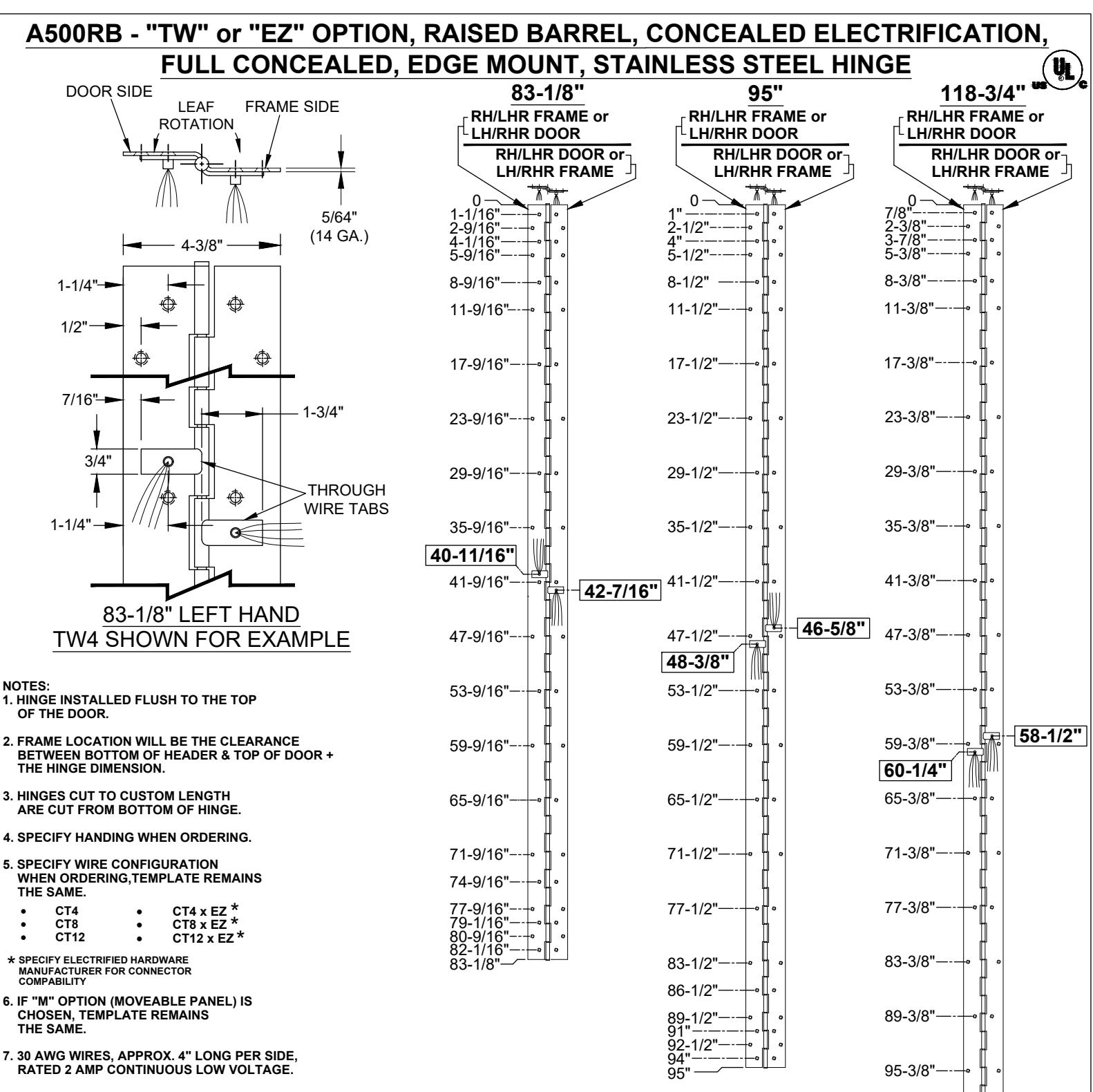

A500RB - "TW" or "EZ" OPTION CONCEALED ELECTRIFICATION

101-3/8"

107-3/8" 110-3/8

114-7/8'

118-3/4

THIS DRAWING IS NOT TO SCALE.

PAGE 1 OF 2 ISSUED 01-17-22

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

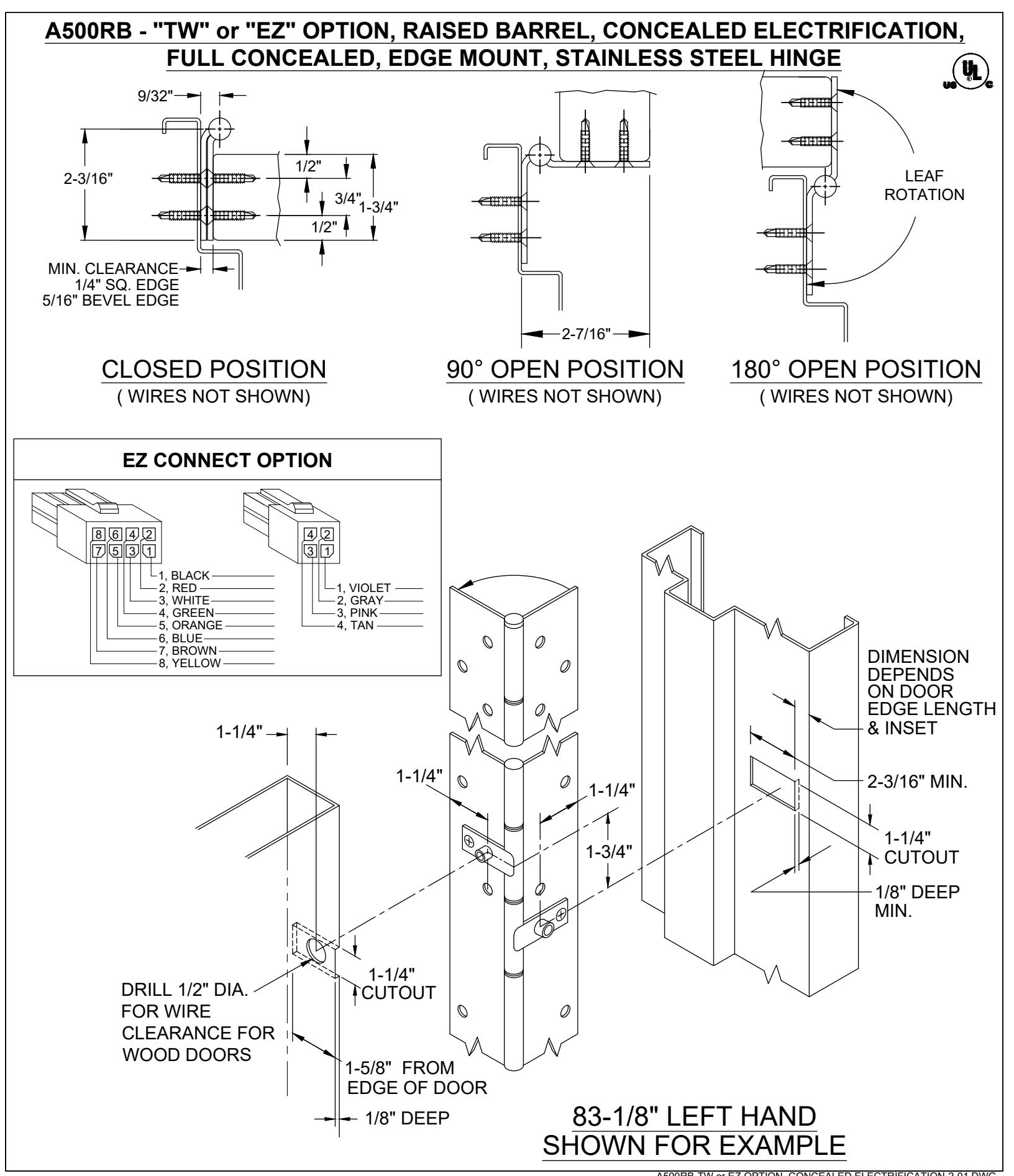

A500RB - "TW" or "EZ" OPTION CONCEALED ELECTRIFICATION

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A500RB-STAINLESS STEEL HINGE-02.DWG

A500RB STAINLESS STEEL HINGE

PAGE 1 OF 1 ISSUED 12-23-16

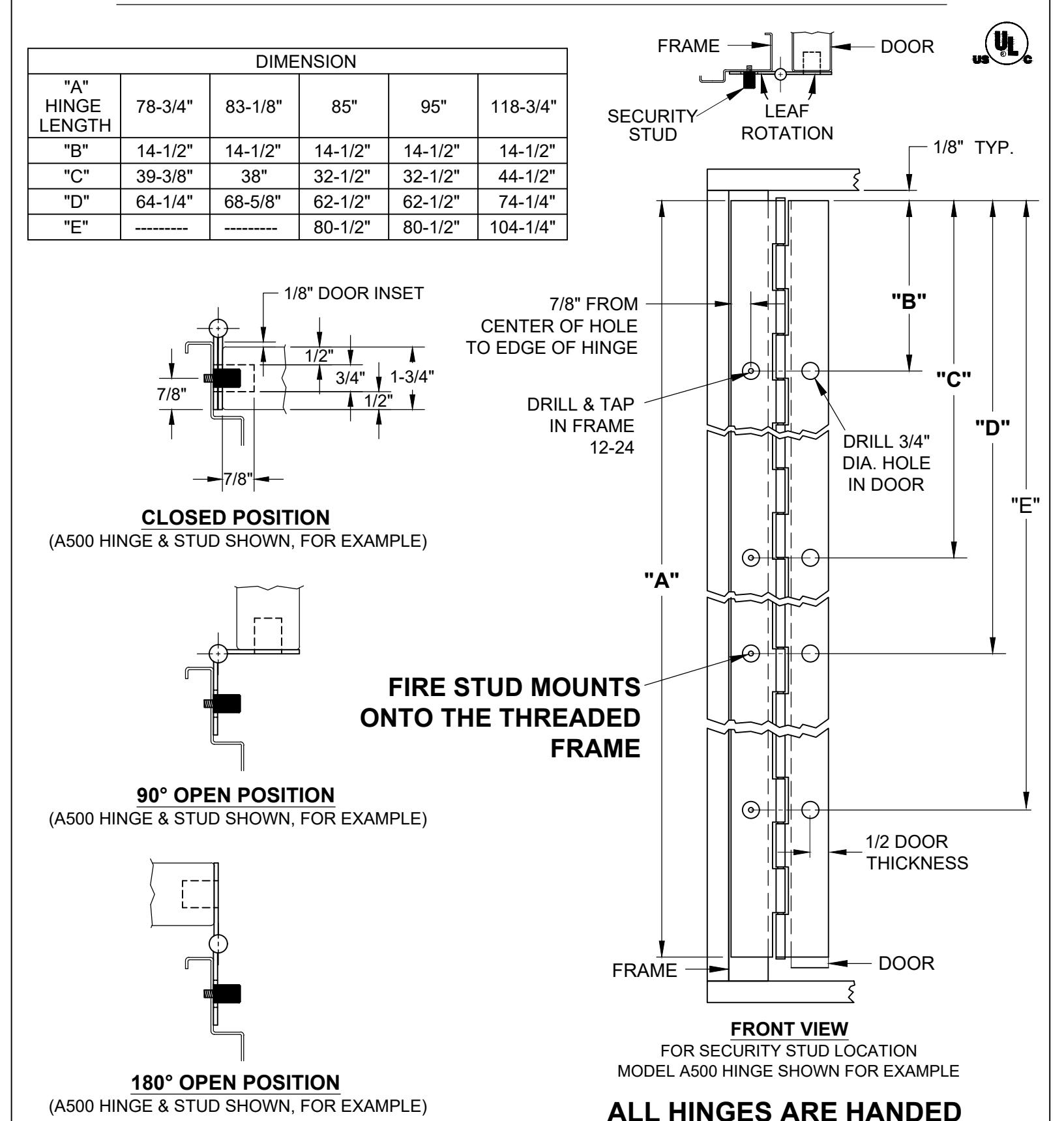

SECURITY "STUD" FOR FULL CONCEALED STAINLESS STEEL HINGES 14 & 12 GA.

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

FC SECURITY STUD LOCATION SS-05.DWG

FULL CONCEALED SECURITY STUD LOCATION INSTRUCTIONS

ISSUED 10-21-20

CHS-1, SLIP-IN, 16GA. (1/16") STAINLESS STEEL SHIM 0.875 0.000 3.875 8.375 17.375 29.375 41.375 53.375 65.375 77.375 89.375 101.375 110.375 114.875 117.875 118 3/4 95" 118-3/4" 4 8 1/2 17 1/2 29 1/2 41 1/2 53 1/2 65 1/2 77 1/2 86 1/2 94 95 1 0 83-1/8" 0 1.063 4.063 8.563 17.563 29.563 41.563 53.563 65.563 74.563 79.063 82.063 83-1/8 0.750 0.375 0.188 DETAIL A DETAIL A 0.375

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

CHS-1-SLIP-IN SHIM-00.DWG

SLIP-IN SHIM CHS-1

ISSUED 06-03-20 PAGE 1 OF 1

CHS-2, 16GA. STAINLESS STEEL SHIM 83-1/8" 95" 118-3/4" 5-1/2 8-1/2-DETAIL A 8-3/8 8-9/16 11-1/2-11-3/8 11-9/16 17-1/2-17-3/8 17-9/16-23-1/2-23-3/8 23-9/16 29-1/2-29-3/8 29-9/16 -35-1/2-35-3/8 35-9/16 41-1/2-41-3/8 41-9/16 47-1/2-47-3/8 47-9/16 -53-1/2-53-3/8 53-9/16 -59-1/2 59-3/8 59-9/16-65-1/2-65-3/8 65-9/16-71-1/2 71-3/8 71-9/16 74-9/16 77-1/2-77-3/8 83-1/2-83-3/8 86-1/2 89-3/8 95-3/8 101-3/8 DETAIL A 107-3/8 $\bigcirc$ 110-3/8 $\bigcirc$ .500"

MATERIAL: .063 STAINLESS STEEL

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

CHS-2- SHIM-00.DWG

CHS-2 SHIM

PAGE 1 OF 1 ISSUED 08-03-20
