Stainless Steel Continuous Pin & Barrel Hinges

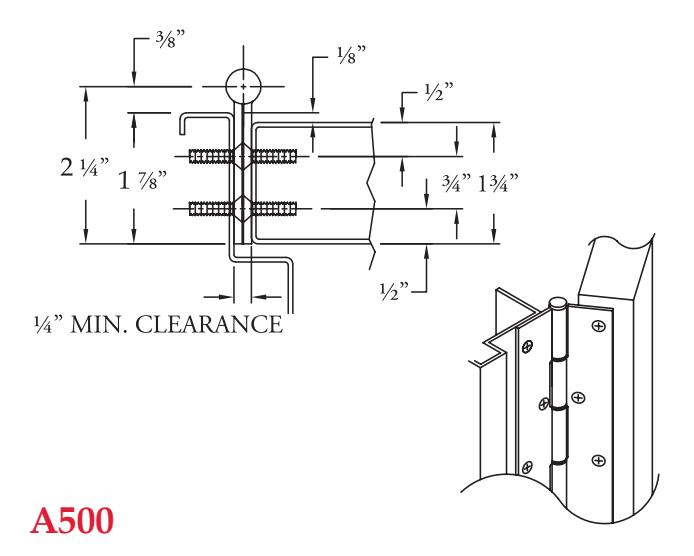

Full Concealed

Standard Features

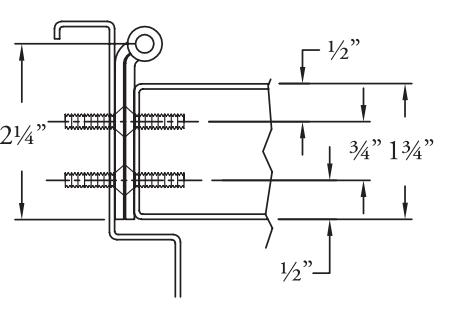

Full concealed, heavy duty
⅛" door inset
48" door width maximum
600 lbs. door weight maximum
• Fasteners : 10-24 x ⅞" undercut, self-drilling, thread-forming tek machine screws, stainless steel and #10 x 1-¼" undercut wood screws, stainless steel
• Lengths : 78-¾", 83-⅛", 85", 95" and 118-¾"
• Finishes : US32D Satin Stainless Steel or US32 Bright Stainless Steel
• Fire Rating doors, based on the following
- 20 minutes wood doors
- 90 minutes hollow metal and composite
- 3 hours hollow metal doors

Options Available

• availability and details

A500RB

Standard Features

Raised barrel (swaged) for door set back in deep reveals
Full concealed, heavy duty
48" door width maximum
600 lbs. door weight maximum
• Fasteners : 10-24 x ⅞" undercut, self-drilling, thread-forming tek machine screws, stainless steel and #10 x 1-¼" undercut wood screws, stainless steel
• Lengths: 78-¾", 83-⅛", 85", 95" and 118-¾"
• Finishes: US32D Satin Stainless Steel or US32 Bright Stainless Steel
• Fire Rating (U.S.A. and Canada) on 4'0" x 10'0" doors, based on the following
- 20 minutes wood doors
- 90 minutes hollow metal and composite
- 3 hours hollow metal doors

Options Available

• availability and details

Stainless Steel Continuous Pin & Barrel Hinges

Electrical Options

"TW" – Concealed Electrical Thru-Wire

Transfers power from the frame to the door in a discreet manner.

• TW4 (4) 30 AWG wires
• TW8 (8) 30 AWG wires
• TW12 (12) 30 AWG wires

"EZ" – Concealed Electrical Thru-Wire with Molex® Connectors

Transfers power from the frame to the door in a discreet manner. Molex® plug-in connectors provided for installation ease.

• EZ4 (4) 30 AWG wires with Molex® connectors
• EZ8 (8) 30 AWG wires with Molex® connectors
• EZ12 (12) 30 AWG wires with Molex® connectors

"M" – Moveable Electrical Access Prep

Hinge is supplied as one complete piece (pin and barrel are continuous), but both hinge leaves are cut to allow access to the electrical section without having to uninstall the hinge.

"PT"- Cut-out Prep for Power Transfer

Hinge is prepped for the use electrical power transfer to be used – must specify which model power transfer unit being used. See ABH Electrical Power Transfer section in the catalog for available models (sold separately).

"AMS" – Adjustable Monitoring Switch

Adjustable button switch is installed in the frame leaf to monitor the door position. Specify handing.

"CT" Concealed Electrical Thru-Wire and Monitor Switch

Monitor switch is installed in the frame leaf to monitor the door position while the wires transfer power from the frame to the door in a discreet manner.

• CT4 (4) 30 AWG wires
• CT8 (8) 30 AWG wires
• CT12 (12) 30 AWG wires





	A5500WT

Stainless Steel Continuous Pin & Barrel Hinges

Non - Electrical Options

"CUT" - Cut to Custom Length

If a non-standard length hinge is required, ABH will cut from the bottom of the hinge to the desired length as long as it does not interfere with a screw hole. Specify length and handing .

"SPLICE" – Spliced Hinge

For hinges exceeding 118-¾", ABH splices two separate lengths with an alternately split stainless steel pin that holds the barrel together. Specify length and handing .

"HT" – Welded Hospital Tip

Top of the hinge barrel is cut at a 45° angle and then welded to help provide and support a safer environment in hospitals and other institutions. Specify handing .

"DD" – Dutch Door

Go online for order form or, specify top and bottom door leaf heights as well as clearance required between top and bottom and handing when ordering.

"STUD" – Security Studs

½" diameter stainless steel studs are permanantly mounted to the frame leaf projecting ¼" and extend into the door leaf for added security.

"AS" – Adjustable Studs

Threaded studs are supplied for hinges with door edge guards on both faces of the door to help correct door alignment issues up to ⅜". Additional door reinforcement required. Specify wood or metal door.

"SEC" – Security Fasteners

Security fasteners are supplied in lieu of standard fasteners for all exposed areas. Specify wood or metal door and frame

"SNB" – Sex Bolts

When using on wood doors, sex bolts are provided for the surface mounted door portion.

"LL" – Lead-Lined

Lead is provided for the door portion fastener cover for half surface and full surface hinges.

"SL" – Sheared Leaf

Concealed leaf is sheared to accommodate a 1-⅜" thick door.

"ADB" – Cut for Automatic Door Bottom

Specify automatic door bottom model when ordering.

"CUSTOM HOLE"

Contact factory with custom mounting hole locations desired for unusual frame and/or door conditions. Restrictions apply.

"NO HOLE"

Contact factory for hinge without mounting holes.

"CUSTOM FINISH"

factory for details. Customer color sample approval will be required prior to fabrication.





	A5500WT

Stainless Steel Continuous Pin & Barrel Hinges

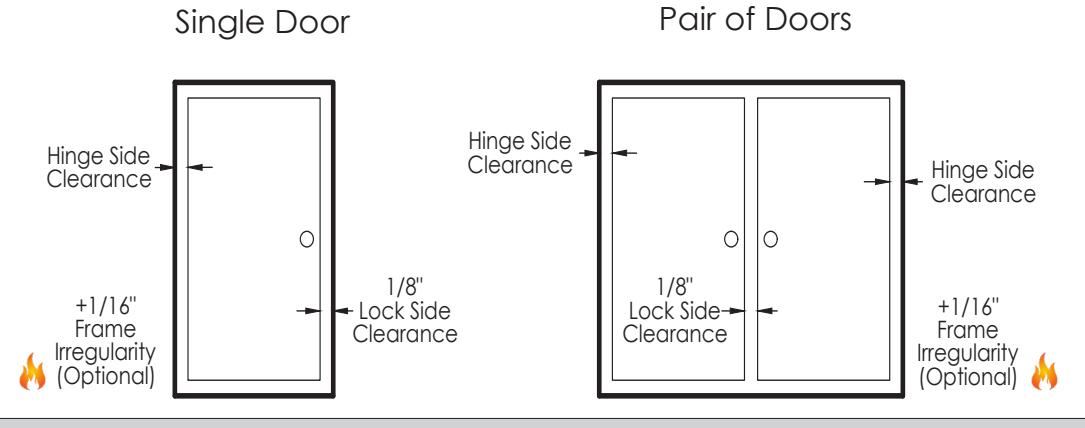

Door Clearance Chart

1222 Ardmore Avenue Itasca, IL 60143 Tel: 630-875-9900 Fax: 800-932-9224 800-932-9224

www.abhmfg.com abhinfo@abhmfg.com

Single Door- Square Edged
HINGE MODEL	HINGE SIDE CLEARANCE (Single)	+	LOCK SIDE CLEARANCE	+	***FRAME IRREGULARITY (OPTIONAL)	=	SINGLE DOOR TOTAL UNDERSIZE
A500, A500RB, A510, A515, A515RB, A525, A529, AC500	1/4"	+	1/8"	+	1/16"	=	7/16"
A505, A505RB, A526*, A5500, A5515, A5505	5/16"	+	1/8"	+	1/16" =		1/2"
A503, A504*, A506, A511	1/8"	+	1/8"	+ 1/16"		=	5/16"
A502	3/32"	+	1/8"	+	1/16"	=	9/32"
Pairs of Doors- Square Edged
HINGE MODEL	HINGE SIDE CLEARANCE (Pair)	+	LOCK SIDE CLEARANCE	+	***FRAME IRREGULARITY (OPTIONAL)	=	PAIR OF DOORS TOTAL UNDERSIZE
A500, A500RB, A510,* A515, A515RB, A529, AC500*	1/2"	+	1/8"	+	1/16"	=	11/16"
A505,A505RB, A526*, A5500, A5515, A5505	5/8"	+	1/8"	+	1/16"	=	13/16"
A503, A504*, A506, A511	1/4"	+	1/8"	+	1/16"	=	7/16"
A502	3/16"	+	1/8"	+	1/16"	=	3/8"

For beveled door, standard clearance is applied to the high side of the door. Refer to template.
** When using the optional "AS" Adjustable Studs, add 1/8" additional for adjustment clearance. (A505, A510 & A526 Only)
*** 1/16" Frame Irregularity Allowance, Optional and included in all Total Door Undersize for single and pairs of doors

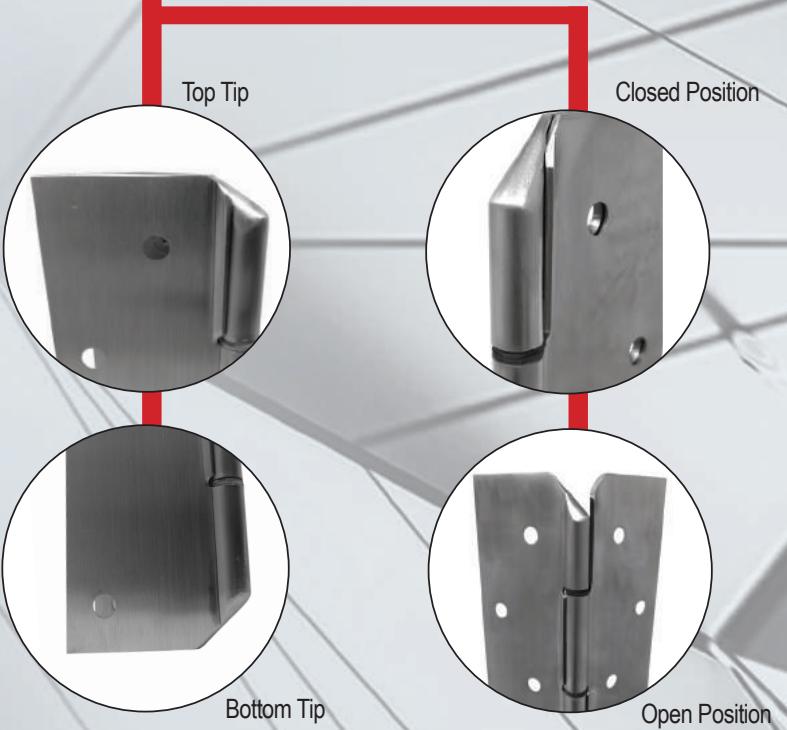

Stainless Steel Pin & Barrel Hinge

For use in behavioral health facilities, hospitals, correctional facilities, or any institution where there are ligature risks. ABH custom designed the AC500 to by using our welded hospital tip and hinge leafs with flanges to encase the barrel. While most hospital tips are designed to work only in the closed door position, this design works whether the hinge is open or closed.

Features

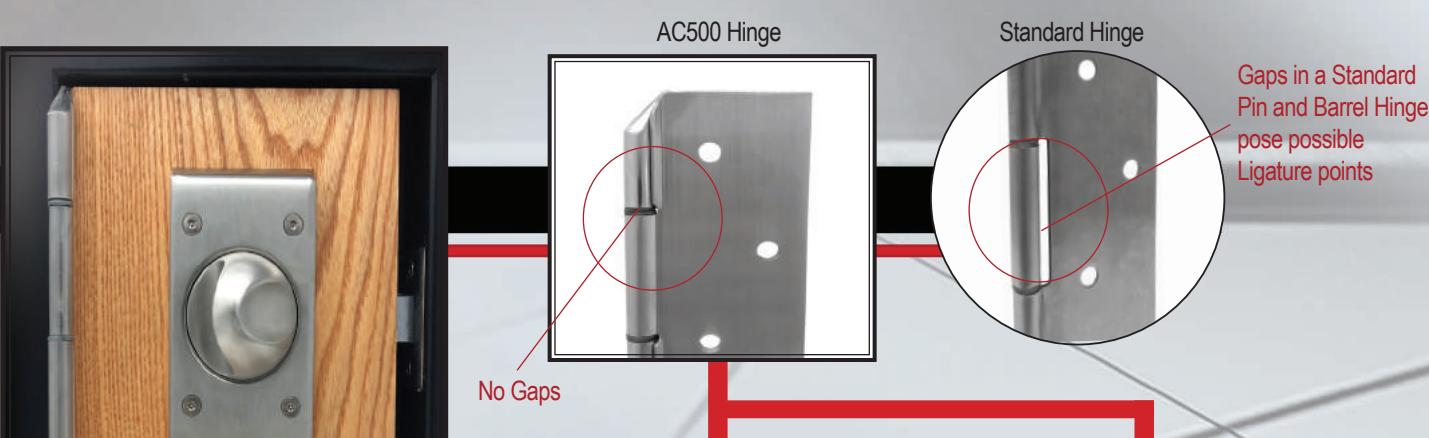

Barrel cut at 45° and welded to close all gaps at the top and bottom
Each barrel is encased in the hinge leaf flange to close all gaps ("No See Through" Design)
Also available in A505 and A515 models
PATENT PENDING

Technical Specifications:

Hinge Material: 304 Stainless Steel

Finishes: Satin Stainless –

Other Finishes by Request

Fasteners: Pin-In-Torx Screws

Meets ANSI BHMA 156.26 Grade 1

Notes:

Behavioral health product applications are intended to provide a safer solution than traditional applications, they do not eliminate risk.

https://omh.ny.gov/omhweb/patient_safety_standards/guide.pdf

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

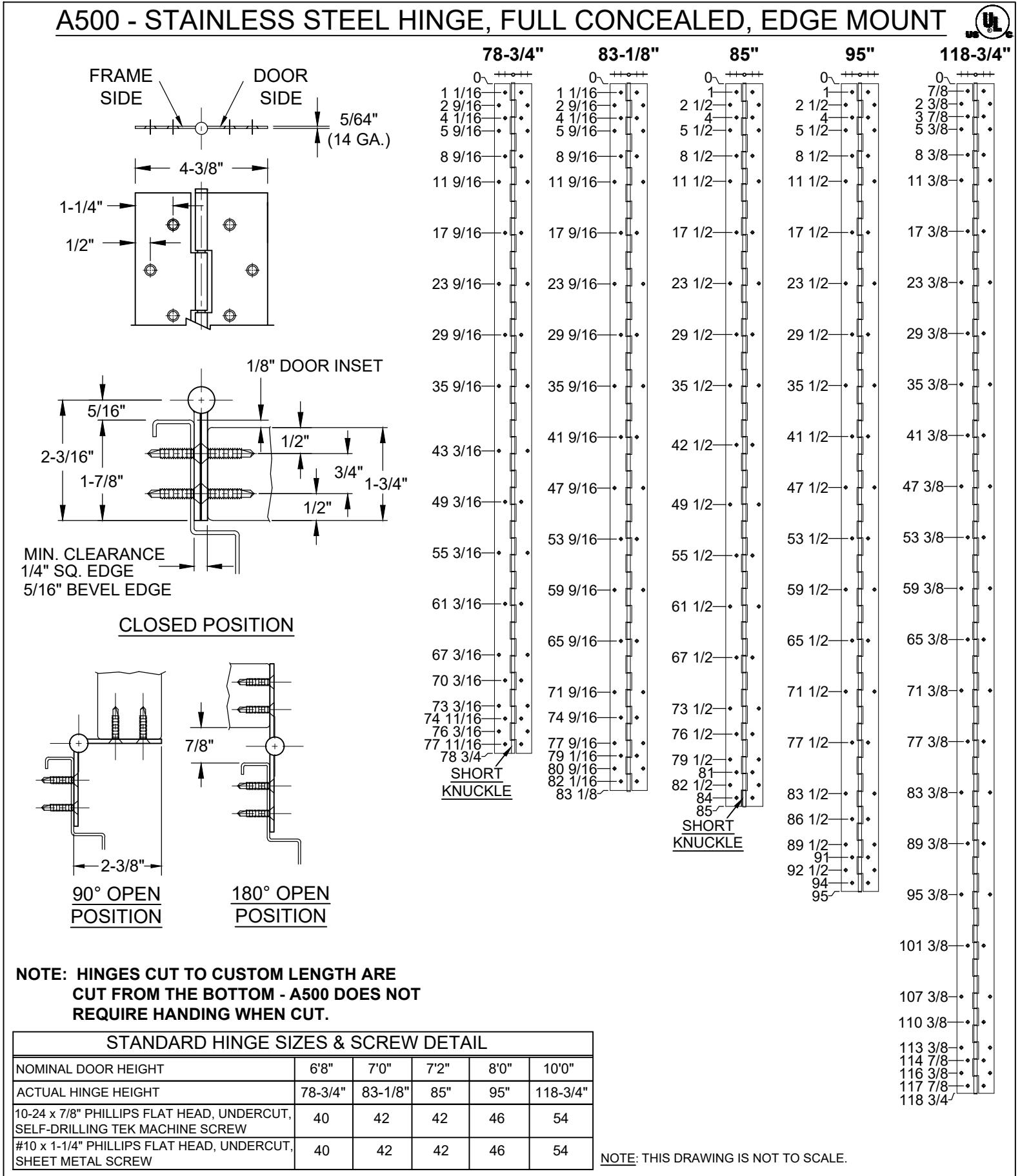

A500-STAINLESS STEEL HINGE-01.DWG

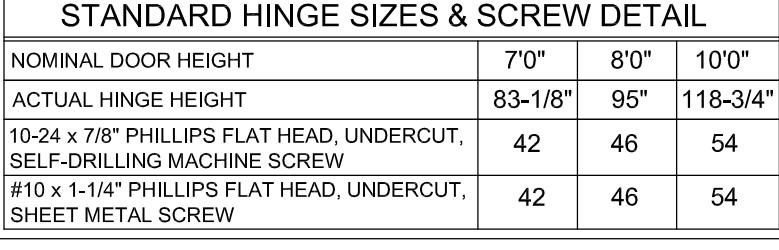

A500 STAINLESS STEEL HINGE

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

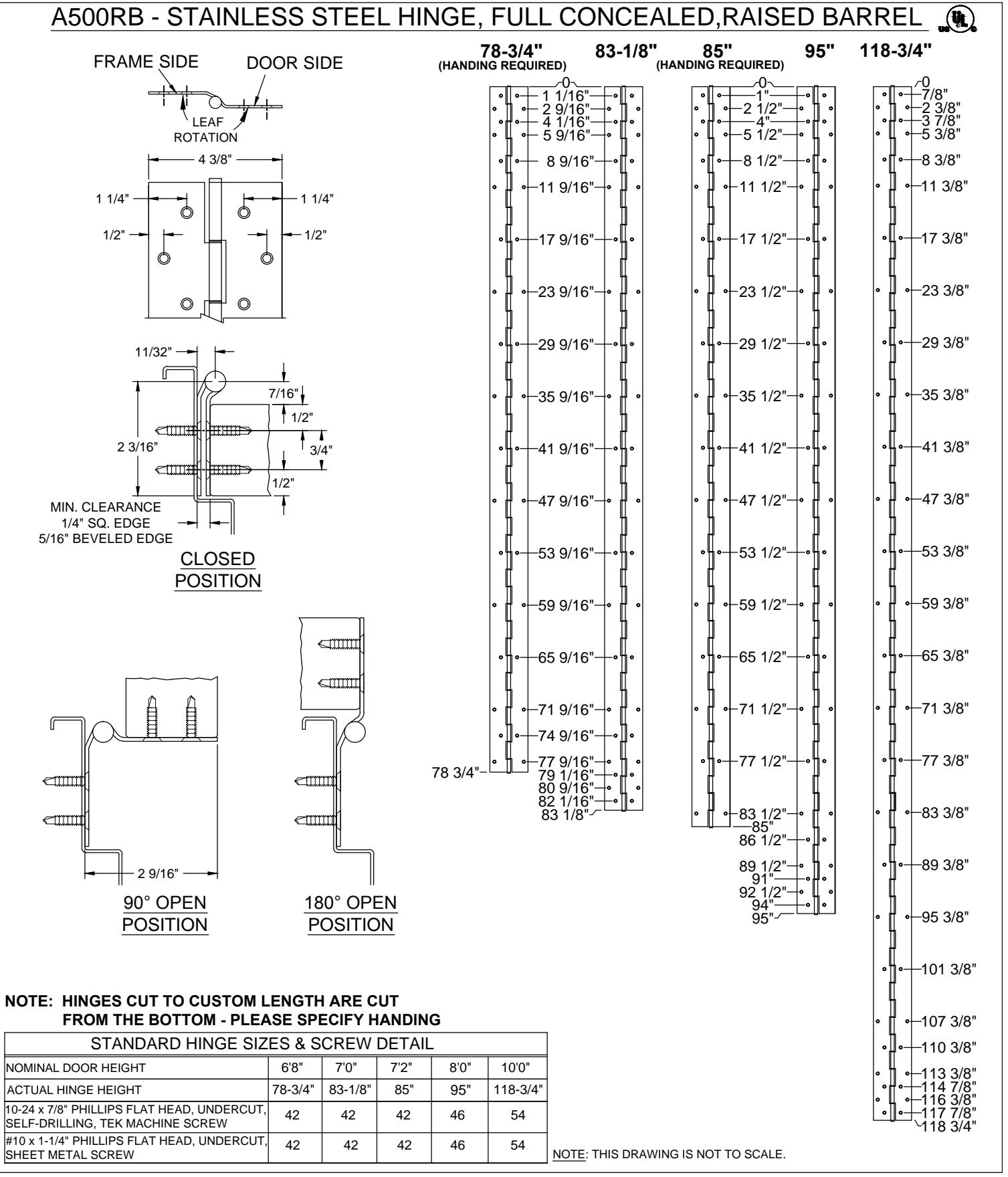

A500RB-STAINLESS STEEL HINGE-02.DWG

A500RB STAINLESS STEEL HINGE

PAGE 1 OF 1 ISSUED 12-23-16

A500 - "CT" OPTION, THRU WIRE & MONITOR SWITCH, FULL CONCEALED, EDGE MOUNT, STAINLESS STEEL HINGE DOOR SIDE LEAF FRAME SIDE 83-1/8" 118-3/4" ROTATION RH/LHR FRAME or RH/LHR FRAME or RH/LHR FRAME or LH/RHR DOOR LH/RHR DOOR LH/RHR DOOR RH/LHR DOOR or RH/LHR DOOR or RH/LHR DOOR or LH/RHR FRAME LH/RHR FRAME LH/RHR FRAME 5/64" 7/8"-2 4-3/8" (14 GA.) 1" — 2-1/2' 4" — 5-1/2' 1-1/4" 8-1/2" 8-3/8" 8-9/16' 1/2" 1/2" 11-3/8" 11-9/16" 11-1/2" ▲ ELECTRICAL Ф ADJUSTMENT MONITORING SCREW SWITCH 17-3/8"-17-9/16"-17-1/2" FRAME SIDE DOOR SIDE 3/8' 3/8" 23-1/2" 23-3/8" 23-9/16" 7/16" 3-3/4" 29-3/8" 29-9/16" 29-1/2" 1-3/4" THROUGH 7/16' 35-9/16" 35-1/2"-35-3/8" WIRE TAB 40-11/16" 38-11/16" 1-1/4" 1-1/4" 41-9/16' 41-1/2" 41-3/8" 46-5/8" 42-7/16" 44-5/8" 47-9/16' 47-1/2" 47-3/8" 83-1/8" LEFT HAND CT4 SHOWN FOR EXAMPLE 48-3/8" 53-9/16" 53-1/2" 53-3/8" 58-1/2" 56-1/2" 1. HINGES CUT TO CUSTOM LENGTH ARE CUT FROM BOTTOM OF HINGE. 59-1/2" 59-3/8' 59-9/16"-60-1/4" 2. SPECIFY HANDING WHEN ORDERING. 65-3/8" 65-9/16"-65-1/2" 3. SPECIFY WIRE CONFIGURATION WHEN ORDERING, TEMPLATE REMAINS 71-1/2" 71-3/8' THE SAME. 71-9/16" CT4 x EZ * CT4 CT8 x EZ * CT8 77-3/8' 77-1/2" CT12 * SPECIFY ELECTRIFIED HARDWARE 83-1/2" 83-3/8" MANUFACTURER FOR CONNECTOR COMPABILITY ▲MONITOR SWITCH 86-1/2" LOCATION 4. IF "M" OPTION (MOVEABLE PANEL) IS 89-3/8" -1/2 CHOSEN, TEMPLATE REMAINS THE SAME. 92-1/2 95-3/8" 5. 30 AWG WIRES, APPROX. 4" LONG PER SIDE, ▲MONITOR SWITCH RATED 2 AMP CONTINUOUS LOW VOLTAGE. LOCATION 101-3/8" 6. THRU WIRE & MONITOR SWITCH LOCATION DIMENSIONS +/- 1/16".

THIS DRAWING IS NOT TO SCALE. LOCATION A500-CT OPTION, THRU WIRE & MONITOR SWITCH-1-00.DWG

ĂMONITOR SWITCH

107-3/8"

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

PAGE 1 OF 2 ISSUED 01-12-16

A500 - "CT" OPTION, THRU WIRE & MONITOR SWITCH, FULL CONCEALED, (ŲL) EDGE MOUNT, STAINLESS STEEL HINGE 5/16" 1/8 " 1/2" 3/4" 1-3/4" LEAF 2-3/16" ROTATION 1-7/8" MIN. CLEARANCE 1/4" FOR SQ. EDGE 2-3/8" 5/16" BEVEL EDGE 90° OPEN POSITION 180° OPEN POSITION CLOSED POSITION ( WIRES NOT SHOWN) ( WIRES NOT SHOWN) ( WIRES NOT SHOWN) EZ CONNECT OPTION 8 6 4 2 7531 L1, BLACK 2, RED VIOLET 3, WHITE 2, GRAY 4. GREEN ORANGE 4. TAN 7, BROWN 0 0 8, YELLOW 1" DIA FOR SWING CLEARANCE DRILL %" DIA. 0 x 3/8" DEEP 7/8" 7/8" CLEARANCE 1-5/8" FROM EDGE OF DOOR FRAME FOR WOOD DOORS SWITCH 3/8" 3/8" SCHEMATIC √A B 1-1/4" CUTOUT 1-3/4" 1-1/4" 1/8" DEEP A & C = NORMALLY CLOSED 1-1/4" B & C = NORMALLY OPEN

DRILL ½ DIA. FOR WIRE CLEARANCE

FOR WOOD DOORS

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143

630.875.9900; FAX 800.9FAXABH (932.9224)

CUTOUT

1-5/8" FROM EDGE OF DOOR

1/8" DEEP

A500-CT OPTION, THRU WIRE & MONITOR SWITCH-2-00.DWG

A500 - "CT" OPTION THRU WIRE & MONITOR SWITCH

83-1/8" LEFT HAND

SHOWN FOR EXAMPLE

PAGE 2 OF 2 ISSUED 01-12-16

www.abhmfg.com

Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143

www.abhmfg.com E-mail: abhinfo@abhmfg.com A500 Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224) printer

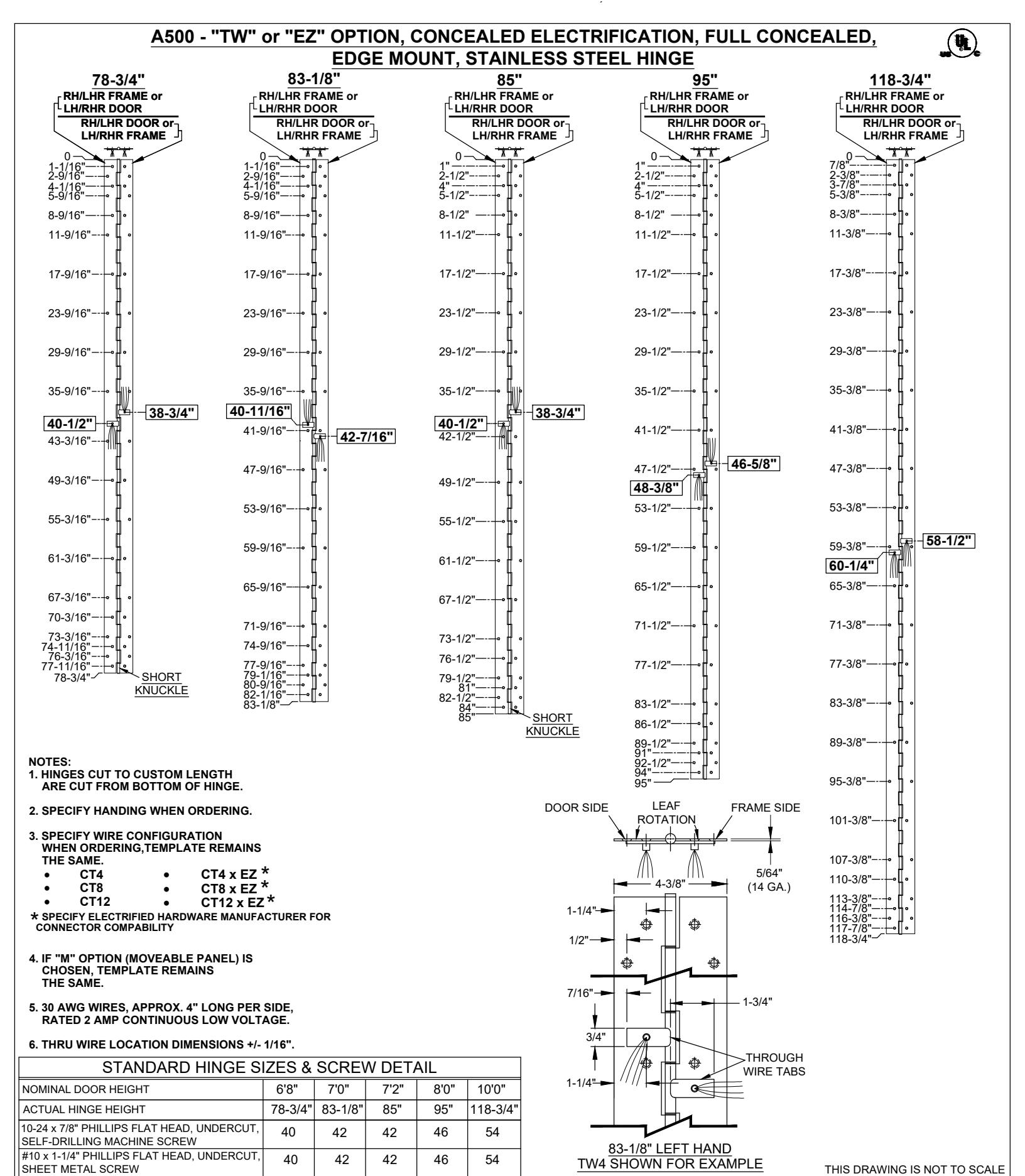

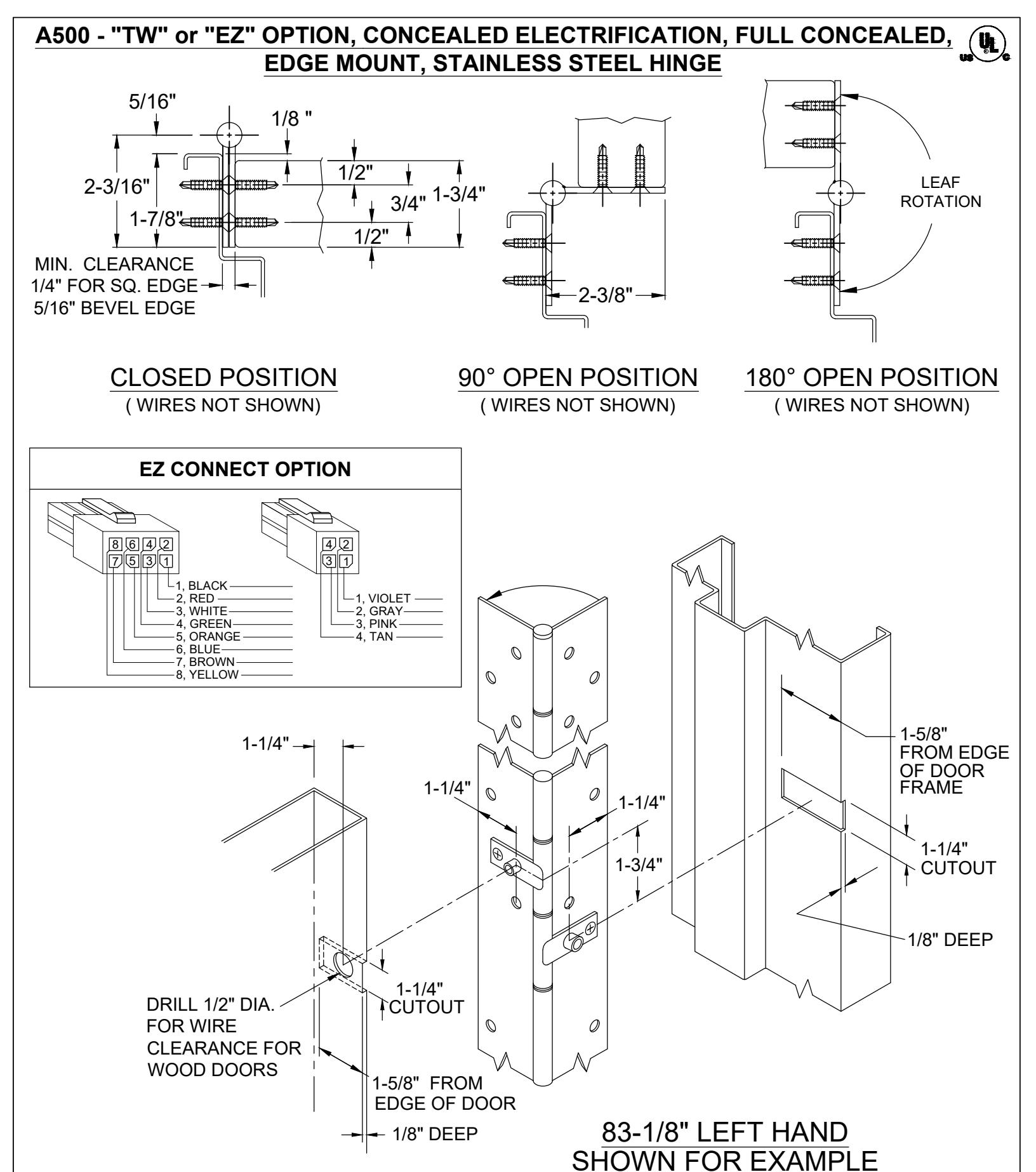

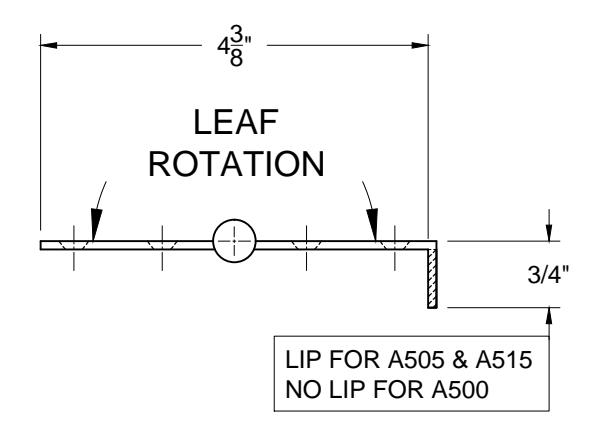

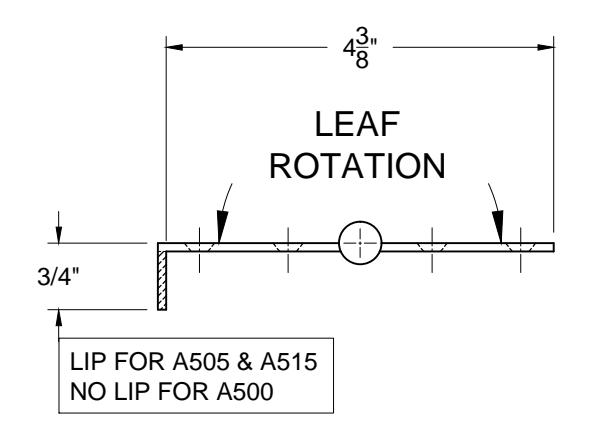

0 - "TW" or "EZ" OPTION CONCEALED ELECTRIFICATION

PAGE 2 OF 2 ISSUED 03-24-20

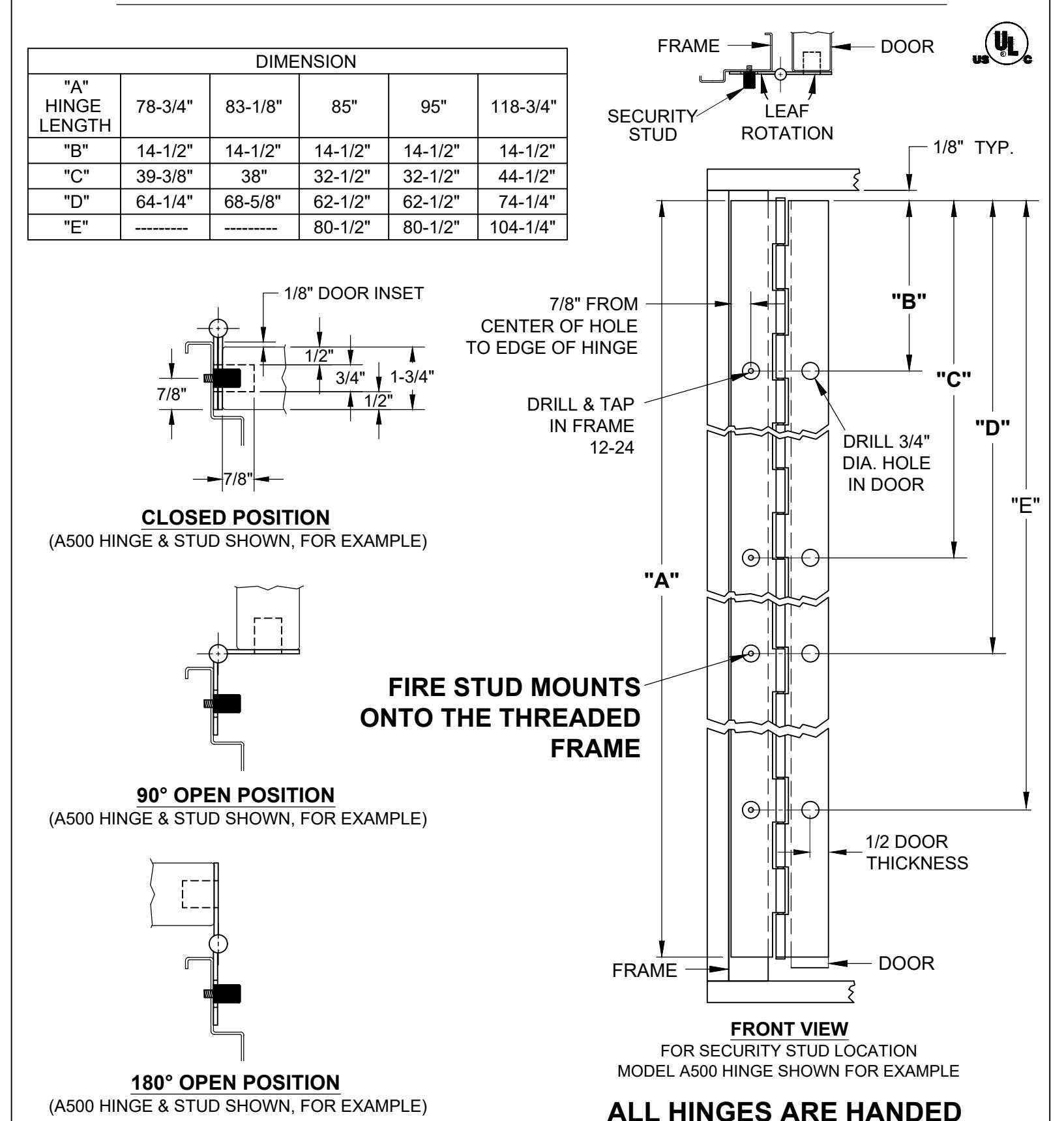

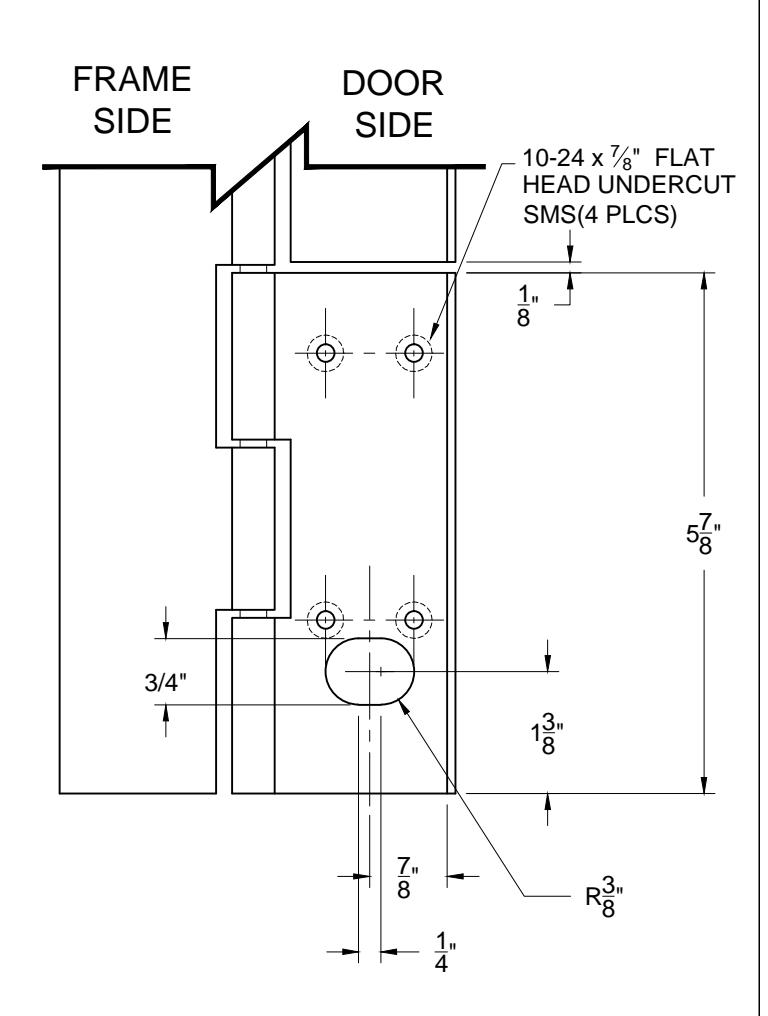

SECURITY "STUD" FOR FULL CONCEALED STAINLESS STEEL HINGES 14 & 12 GA.

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

FC SECURITY STUD LOCATION SS-05.DWG

FULL CONCEALED SECURITY STUD LOCATION INSTRUCTIONS

ISSUED 10-21-20

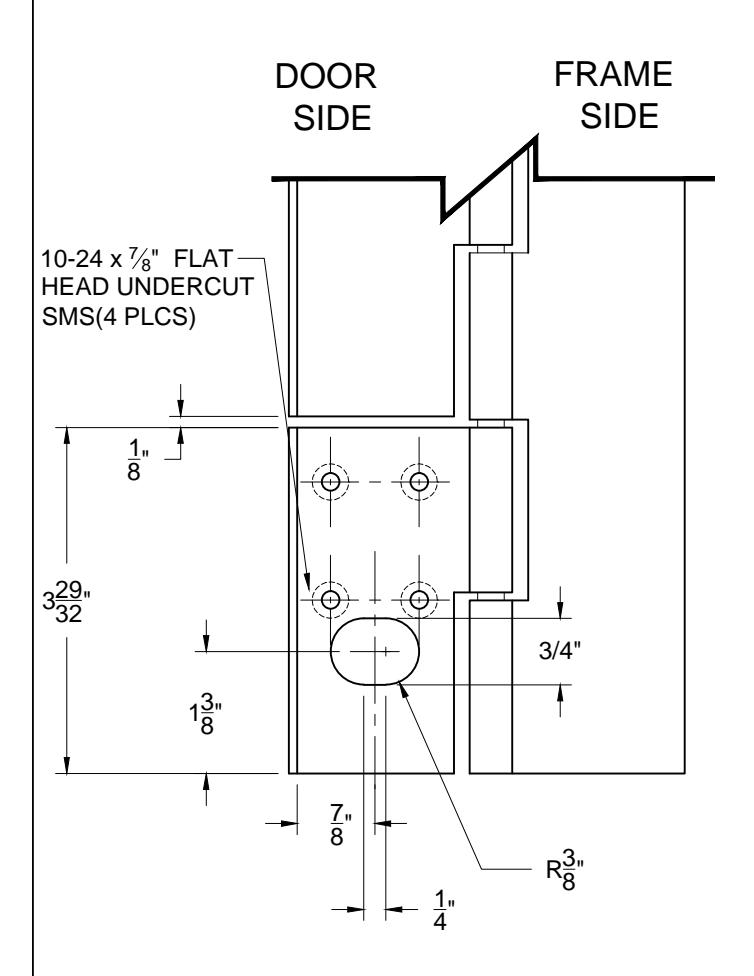

HINGE WITH 1840 AUTOMATIC DOOR BOTTOM

LEFT HANDED

RIGHT HANDED

® www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

TM-HINGE W-1840 DR BOTTOM-04.DWG

HINGE W/ 1840 AUTOMATIC DOOR BOTTOM REVISED 06-19-18

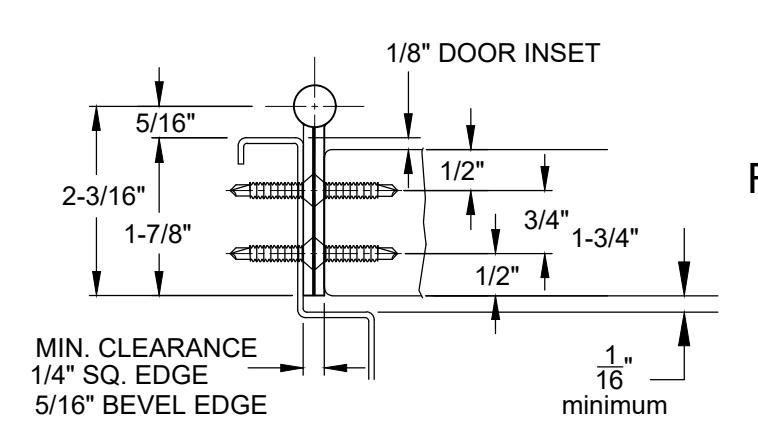

A500 FULL CONCEALED HINGE INSTALLATION INSTRUCTIONS

All holes in the door and frame must be drilled correctly. The fasteners must be properly installed. Failure to to use the fasteners supplied by ABH will void the UL fire rating.

FIG 1

FRAME PREPARATION:

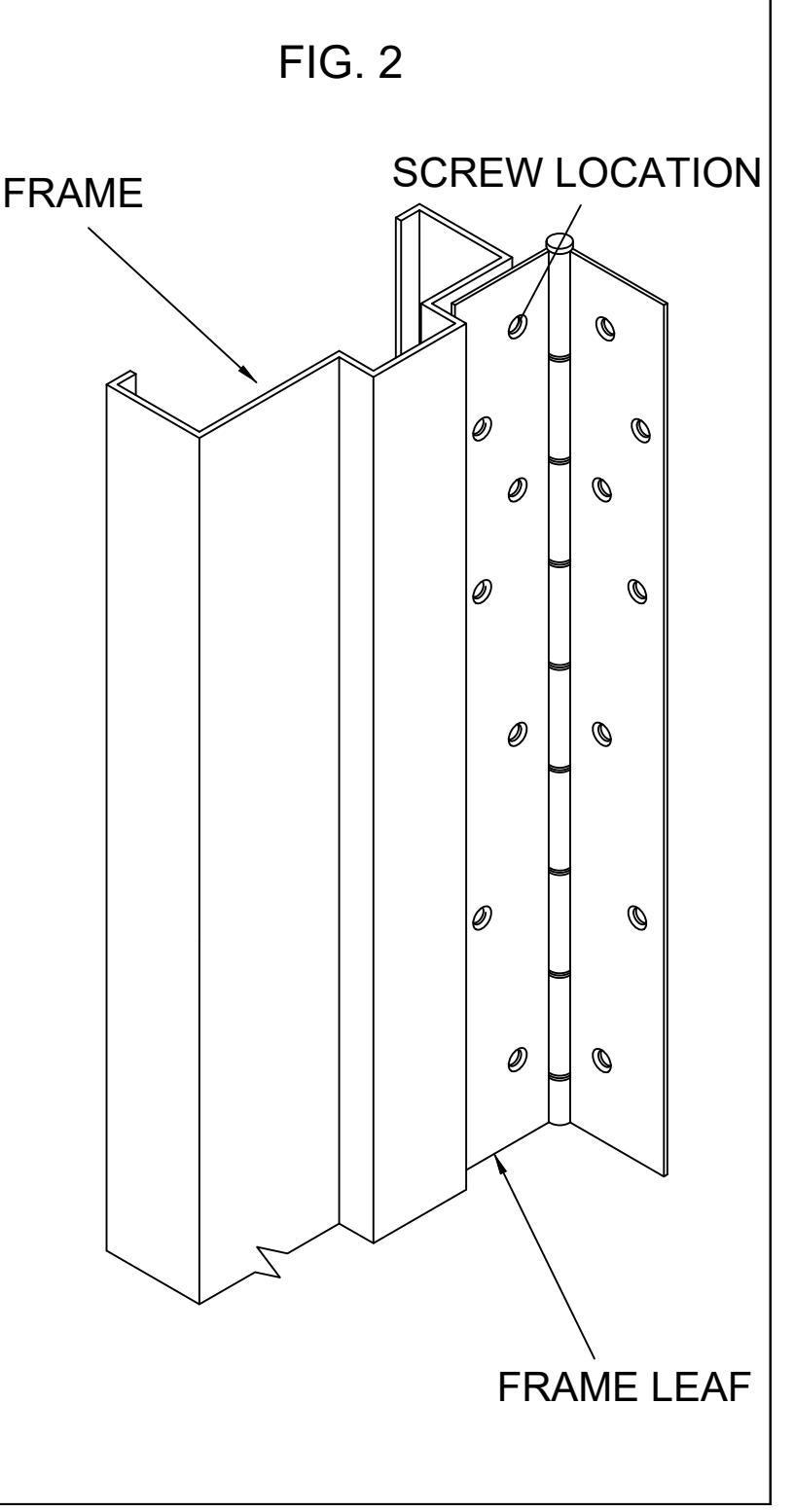

1. Place hinge on the frame as shown in Fig. 2 allowing 1/8" between top of hinge and underside of header. Allow $\frac{1}{16}$ " minimum clearance between hinge and stop (see Fig. 1).
2. Mark and center punch all the screw locations on the frame with the hinge held firmly in place (FIG. 2).
3. Remove hinge and prepare to drill frame.
4. Drill all the holes:

Hollow Metal Frame: Use a #25 bit. If Frame is reinforced Tap the holes for a 10-24 thread.

Wood Frame: Use a 1/8" drill bit.

DO NOT INSTALL HINGE TO FRAME AT THIS TIME

SEE OPPOSITE SIDE FOR DOOR SIDE INSTALLATION

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A500 INSTALLATION INSTRUCTIONS

1 OF 2

A500 FULL CONCEALED HINGE INSTALLATION INSTRUCTIONS

DOOR PREPARATION:

1. Place the hinge on the edge of the door. Carefully line up the top of the hinge with the top and back edges of the door.

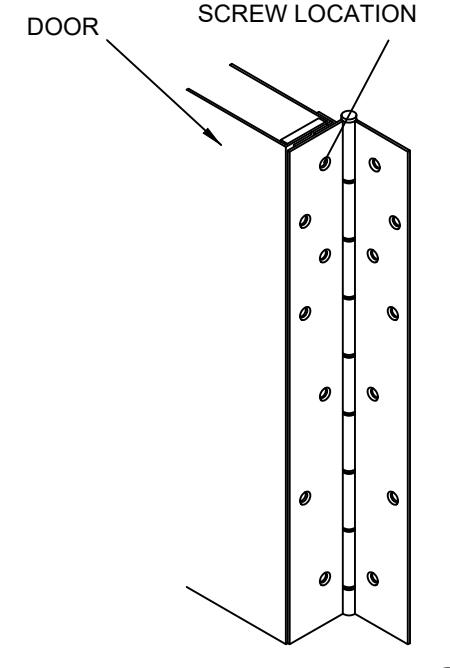

2. Mark and center punch all the screw locations on the door with the hinge held firmly in place (FIG. 3).
3. Drill all the holes:

SCREW LOCATION

DOOR

Hollow Metal Door: Use a #25 bit. If door is reinforced Tap the holes for a10-24 thread.

Wood Door: use a 1/8" drill bit.

FIG. 3

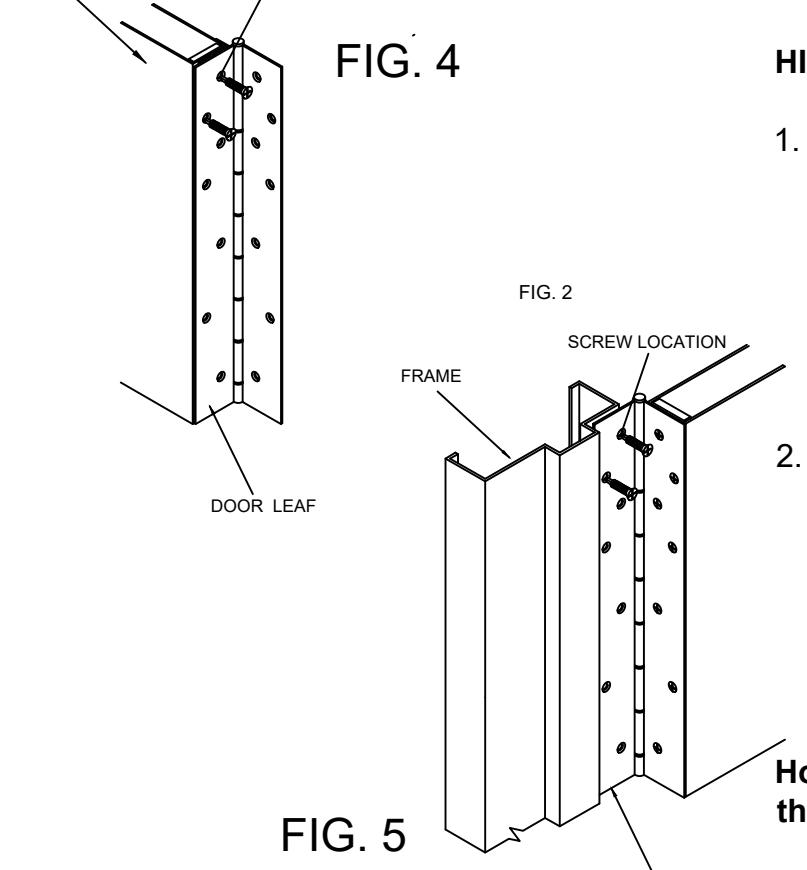

HINGE INSTALLATION:

1. Attach Hinge to Door (FIG. 4):

Wood Door: use # 10 x 1-1/4" Flat Head, Undercut. Sheet Metal Screw

Metal Door: Use 10-24 x $\frac{7}{8}$ " Phillips Flat Head, Undercut. Self-Drilling Tek Machine

Screw

2. Attach Hinge to Frame (FIG. 5):

Wood Frame: use # 10 x 1-1/4" Flat Head, Undercut, Sheet Metal Screw

Metal Frame: Use 10-24 x $\frac{7}{8}$ " Phillips Flat Head, Undercut. Self-Drilling Tek Machine Screw

Hospital tips on hinges should be mounted at the top of the door.

ABH<sup>®</sup> MANUFACTURING INC.

www.abhmfg.com E-mail: abhinfo@abhmfg.com

FRAME LEAF

Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A500 INSTALLATION INSTRUCTIONS

2 OF 2

ISSUED 2-26-20

CHS-2, 16GA. STAINLESS STEEL SHIM 83-1/8" 95" 118-3/4" 5-1/2 8-1/2-DETAIL A 8-3/8 8-9/16 11-1/2-11-3/8 11-9/16 17-1/2-17-3/8 17-9/16-23-1/2-23-3/8 23-9/16 29-1/2-29-3/8 29-9/16 -35-1/2-35-3/8 35-9/16 41-1/2-41-3/8 41-9/16 47-1/2-47-3/8 47-9/16 -53-1/2-53-3/8 53-9/16 -59-1/2 59-3/8 59-9/16 -65-1/2-65-3/8 65-9/16-71-1/2 71-3/8 71-9/16 74-9/16 77-1/2-77-3/8 83-1/2-83-3/8 86-1/2 89-3/8 95-3/8 101-3/8 DETAIL A 107-3/8 $\bigcirc$ 110-3/8 $\bigcirc$ .500"

MATERIAL: .063 STAINLESS STEEL

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

CHS-2- SHIM-00.DWG

CHS-2 SHIM

PAGE 1 OF 1 ISSUED 08-03-20

CHS-1, SLIP-IN, 16GA. (1/16") STAINLESS STEEL SHIM 0.875 0.000 3.875 8.375 17.375 29.375 41.375 53.375 65.375 77.375 89.375 101.375 110.375 114.875 117.875 118 3/4 95" 118-3/4" 4 8 1/2 17 1/2 29 1/2 41 1/2 53 1/2 65 1/2 77 1/2 86 1/2 94 95 1 0 83-1/8" 0 1.063 4.063 8.563 17.563 29.563 41.563 53.563 65.563 74.563 79.063 82.063 83-1/8 0.750 0.375 0.188 DETAIL A DETAIL A 0.375

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

CHS-1-SLIP-IN SHIM-00.DWG

SLIP-IN SHIM CHS-1

ISSUED 06-03-20 PAGE 1 OF 1
