View PDFAluminum Continuous Geared Hinges
Full Concealed
Standard Features
- Full concealed, heavy duty
- door inset
- Door edge protection lip
- For use on 1-¾" thick door
- 48" door width maximum
- 450 lbs. door weight maximum
- " LL " model for doors up to 1,000 lbs. (lead-lined staggered hole pattern)
- • Fasteners : 12-24 x ⅞" undercut self-drilling, thread-forming tek machine screws
- • Standard lengths : 79", 83", 85", 95" and 120"
- • Finishes : Clear, dark bronze and black anodized
-
• Fire Rating
- Approved for use on metal swinging type minutes (Specify " FR " option for 3 hour rating)
- Approved for use on wood swinging 60 minutes (Specify " FR " option for 90 minute rating)
Options Available
• See pages F-7 to F-8 for option availability and details

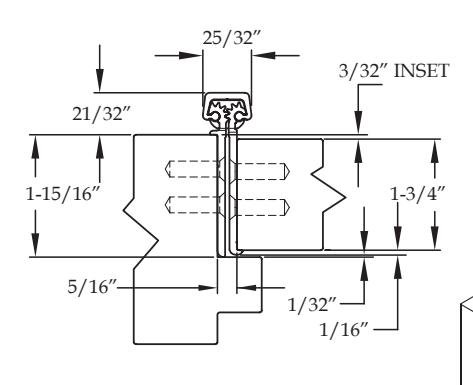

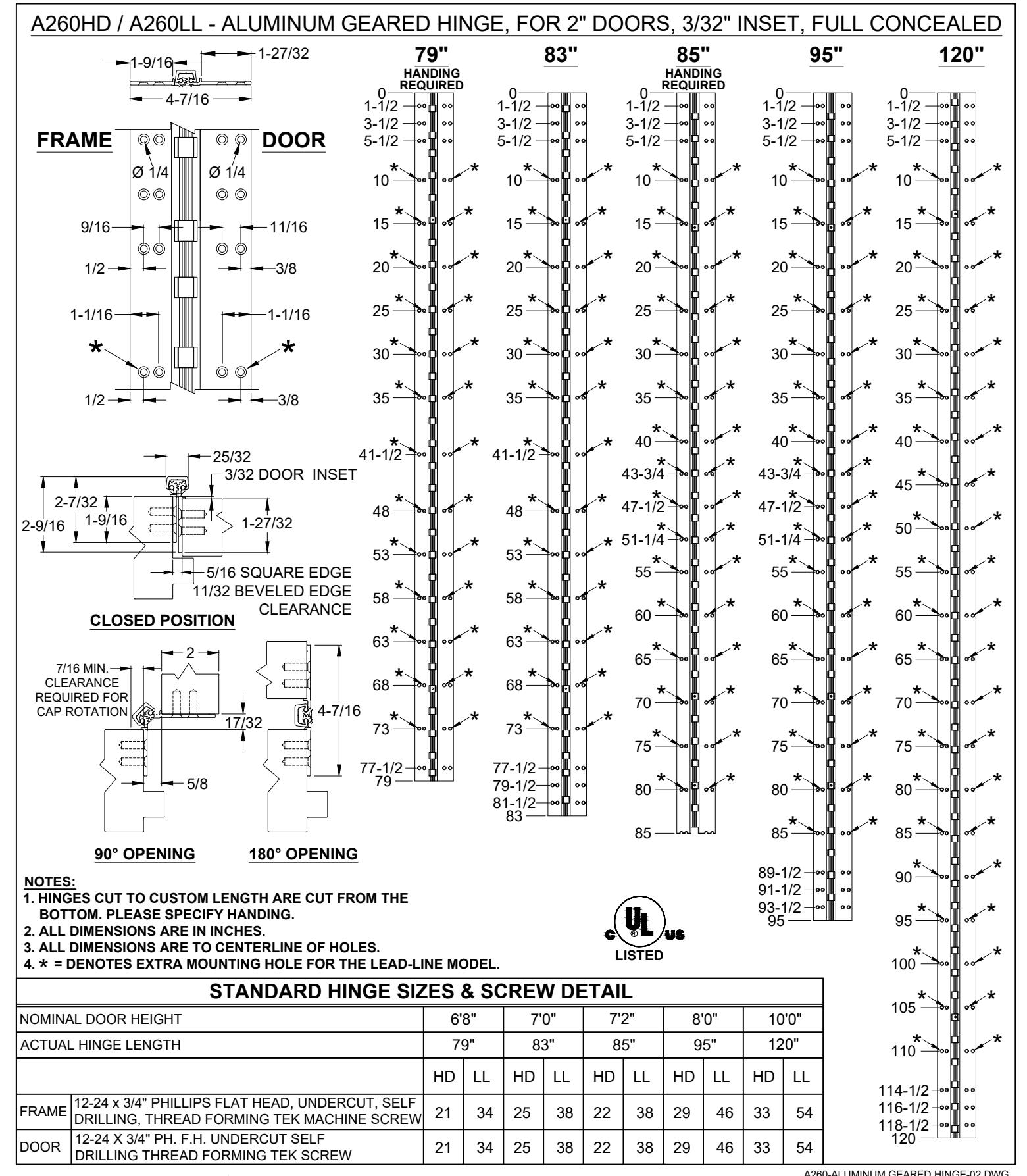

A260 HD A260 LL
Standard Features
- Full concealed, heavy duty
- door inset
- For use on 2" thick door
- 48" door width maximum
- 450 lbs. door weight maximum
- " LL " model for doors up to 1,000 lbs. (lead-lined staggered hole pattern)
- • Fasteners : 12-24 x ⅞" undercut self-drilling, thread-forming tek machine screws
- • Standard lengths : 79", 83", 85", 95" and 120"
- • Finishes : Clear, dark bronze and black anodized
-
• Fire Rating
- Approved for use on metal swinging type minutes (Specify " FR " option for 3 hour rating)
- Approved for use on wood swinging 60 minutes (Specify " FR " option for 90 minute rating)
Options Available
• See pages F-7 to F-8 for option availability and details
INSTALLATION INSTRUCTIONS FOR FULL CONCEALED HINGES
A110HD/LL, A111HD/LL, A130HD, A135HD, A140HD/LL, A150HD/LL, A160HD/LL A240HD/LL, A260HD/LL, A270HD/LL, A280HD/LL & A410HD/LL
- A. All uncut standard length hinges are non-handed and can be used for right or left hand doors.
- B. Standard length hinges are supplied slightly shorter than nominal door height to accommodate threshold and carpeting clearances.
CUTTING THE HINGE TO FIT
- · Keep hinge in the closed position
- · Determine HANDING if required. Not all hinges will become handed after cutting.
- · Cut one end of the hinge only. Cut end will be installed at the bottom (Six-hole pattern remains at the top)
- · Use a Metal Cutting Saw cut through the gear cap first.
Note: If cut length interferes with a set screw bearing remove it and switch it with a plain bearing above the cut location.
FRAME PREP
With the hinge in the open position
1. Locate the top of the hinge 1/8" below the header
With the frame leaf flange tight against the frame
2. Mark or Center Punch hole locations
Note: If using wood screws drill a 5/32" pilot hol e DO NOT ATTACH HINGE TO FRAME AT THIS TIME
ATTACH THE HINGE TO THE DOOR
- 4. Position Door Leaf on door. Door leaf alignment flange or door leaf lip must be seated against door edge.
- 5. Align the top end of the hinge to be absolutely flush with the top of the door.
- 6. Mark or Center Punch hole locations
- 7. Using the provided Self Drilling/Thread Forming Screws and the proper drive bit please proceed to attach the hinge to the door Note: If using wood screws drill a 5/32" pilot hol e.
ATTACHING DOOR TO FRAME
- 8. Position door 90 degrees to frame
- 9. Shim door to the proper height to line up the screw holes in hinge frame leaf with the marks at the top of the frame.
- 10. Install two screws at the top of the hinge to hold in place
- 11. Remove shim and align the remaining holes. Install two additional screws in the middle and at the bottom.
- 12. Check door for proper swing and clearance before installing remaining screws, making necessary adjustments.
- 13. Install the remaining fasteners after any adjustments are made.
REINFORCING AND RIVNUTS
- · No reinforcing is necessary except on extremely high-frequency, extremely heavy or extra-wide doors.
- · Rivnuts are recommended for use in the frame when the door exceeds 450lbs.
Note:RIVNUTS are not to be used with Fire Rated Hinges
PAIRS OF DOORS WITH MULLIONS
- · If the mullion is between the doors, install as single doors.
- · If the mullion is behind the doors, install as a double doors.
GROUT/SLUSHED-IN FRAMES
It is recommended that a mudguard be installed behind the frame for ease of installation. Do not use self-drill screws with grouted steel frames without a mudguard. If no mudguard has been used, drill holes through frame and remove grout for screw clearances. Do not oversize hole.
| SCREW DETAIL | |
|---|---|
| FRAME |
12-24 x 3/4" PHILLIPS FLAT HEAD, UNDERCUT, SELF
DRILLING, THREAD FORMING TEK MACHINE SCREW |
| DOOR |
12-24 x 3/4" PHILLIPS FLAT HEAD, UNDERCUT, SELF
DRILLING, THREAD FORMING TEK MACHINE SCREW |
Note: #12 x 1-1/2" FLAT HEAD UNDERCUT WOOD SCREWS AVAILABLE UPON REQUEST
The following actions will void any warranty, expressed or implied.
- · Failure to Install the hinge according to ABH's specifications and requirements
- · Use of Fasteners other than those supplied with the hinge.
- · Unauthorized field modifications including removing any of the bearings, altering the original finish or painting the hinge.
R www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
A260 ALUMINUM GEARED HINGE
© 2017 ABH Mfg., Inc.
PAGE 1 OF 1 REVISED 9-10-20

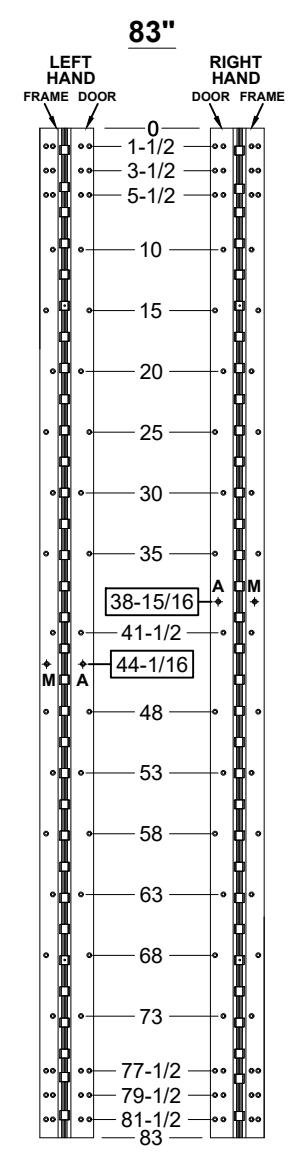

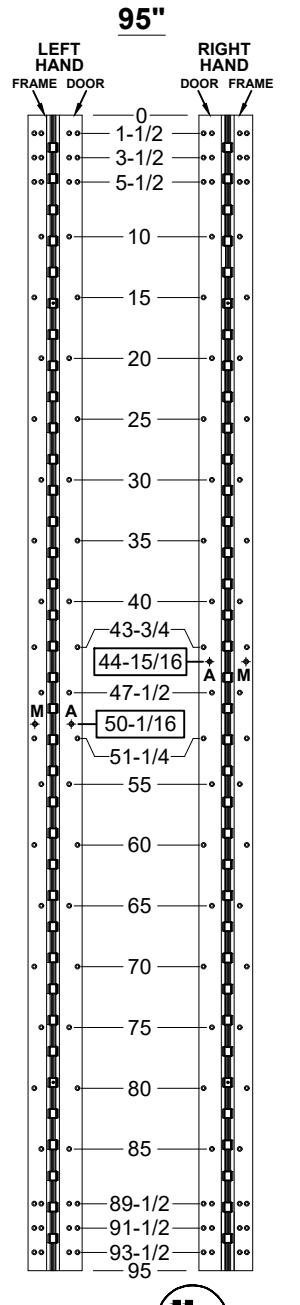

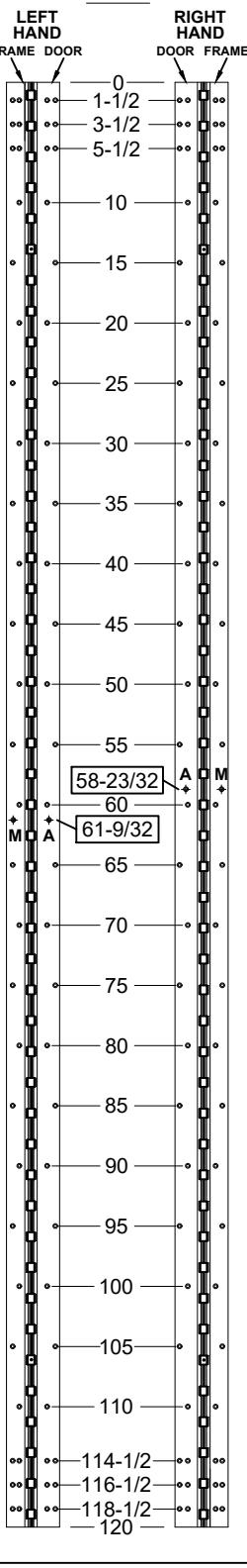

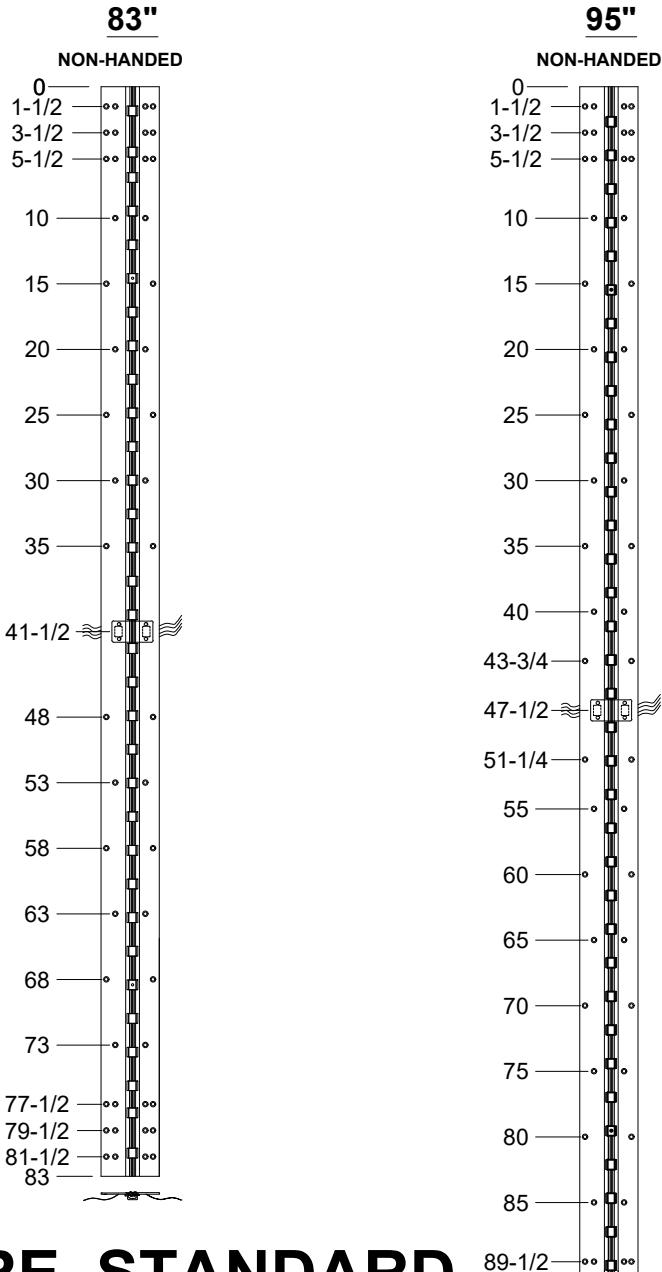

A260HD - "EM" OPTION, CONCEALED ELECTRIFICATION, FULL CONCEALED, ALUMINUM GEARED HINGE 83" 95" 120" LEFT HAND LEFT HAND RIGHT RIGHT LEFT RIGHT HAND HAND HAND HAND RAME DO FRAME DO 1-1/2 1-1/2 1-1/2 3-1/2 3-1/2 3-1/2 10 10 20 20 20 25 25 30 30 30 35 35 35 38-15/16 41-1/2 43 - 3/444-1/16 44-15/16 58-23/32 58 60 60 61-9/32 65 68 77-1/2 79-1/2 80 80 85 85 89-1/2 91-1/2 M = MONITOR SWITCH SIDE LISTED U = MAGNET SIDE STANDARD HINGE SIZES & SCREW DETAIL
12-24 x 3/4" PHILLIPS FLAT HEAD, UNDERCUT, SELF
12-24 x 3/4" PHILLIPS FLAT HEAD, UNDERCUT, SELF
DRILLING, THREAD FORMING TEK MACHINE SCREW
DRILLING, THREAD FORMING TEK MACHINE SCREW
NOMINAL DOOR HEIGHT
ACTUAL HINGE LENGTH
FRAME
DOOR
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
7'0"
83"
25
25
8'0"
95"
29
29 | 33
10'0'
120'
33

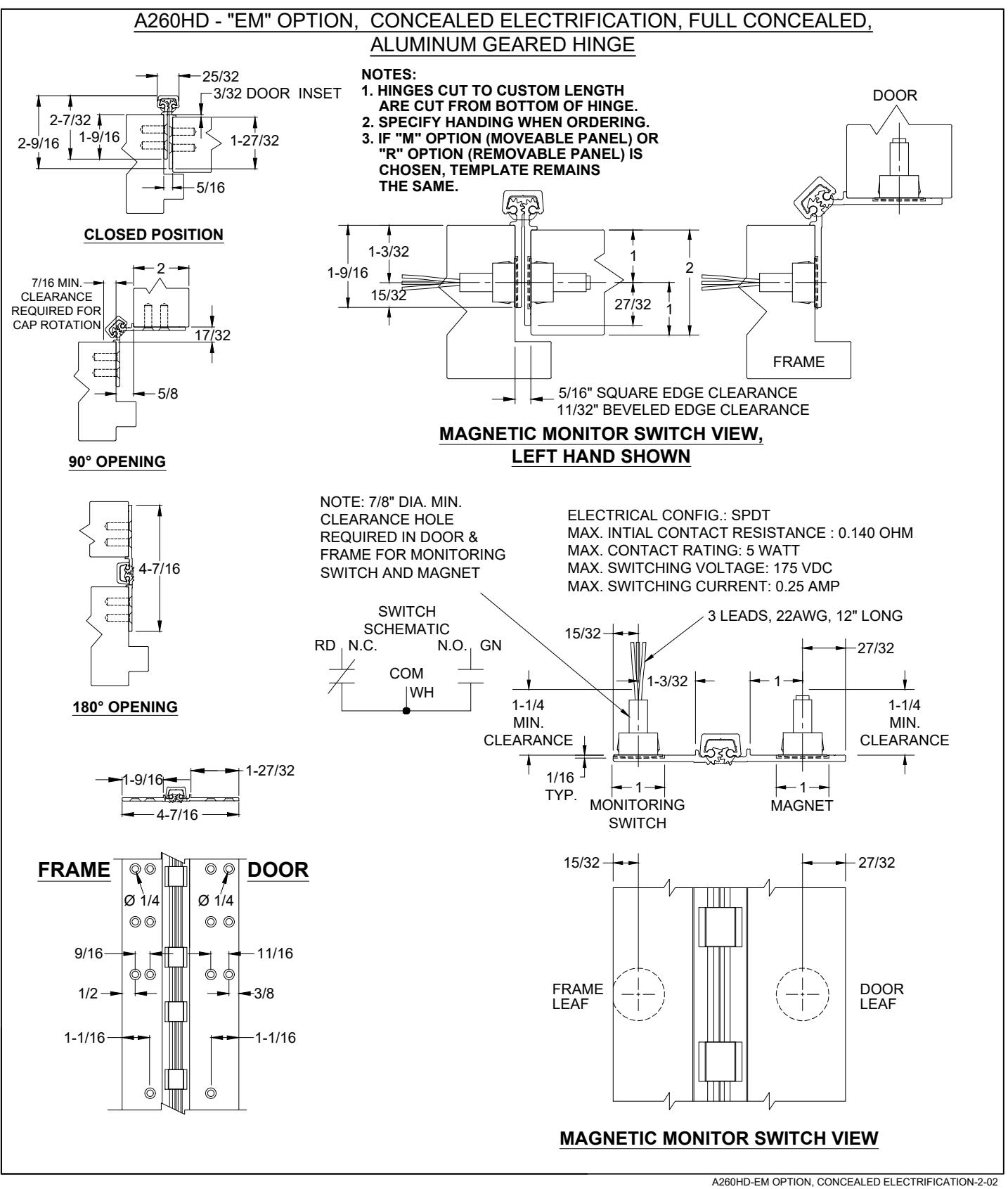

A260HD - "EM" OPTION CONCEALED ELECTRIFICATION
A260HD-EM OPTION, CONCEALED ELECTRIFICATION-1-02
116-1/2
118-1/2
PAGE 1 OF 2 REVISED 8-12-21
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
AZUUND-EW OF HON, CONCEALED ELECTRIFICATION-2-02
A260HD - "EM" OPTION CONCEALED ELECTRIFICATION
© 2020 ABH Mfg., Inc. printed in USA
PAGE 2 OF 2 REVISED 8-12-21
A260HD - "ES" OPTION, CONCEALED ELECTRIFICATION, FULL CONCEALED, ALUMINUM GEARED HINGE
120"
M = MONITOR SWITCH SIDE A = ADJUSTMENT SCREW SIDE
| STANDARD HINGE SIZES & SCREW DETAIL | |||||||
|---|---|---|---|---|---|---|---|
| NOMINAL DOOR HEIGHT | 8'0" | 10'0" | |||||
| ACTUAL | TUAL HINGE LENGTH 83" 95' | 95" | 120" | ||||
| FRAME |
12-24 x 3/4" PHILLIPS FLAT HEAD, UNDERCUT, SELF
DRILLING, THREAD FORMING TEK MACHINE SCREW |
25 | 29 | 33 | |||
| DOOR |
12-24 x 3/4" PHILLIPS FLAT HEAD, UNDERCUT, SELF
DRILLING. THREAD FORMING TEK MACHINE SCREW |
25 | 29 | 33 | |||
A260HD-ES OPTION, CONCEALED ELECTRIFICATION-1-02
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
A260HD - "ES" OPTION CONCEALED ELECTRIFICATION
© 2020 ABH Mfg., Inc. printed in USA
PAGE 1 OF 2 REVISED 8-12-21

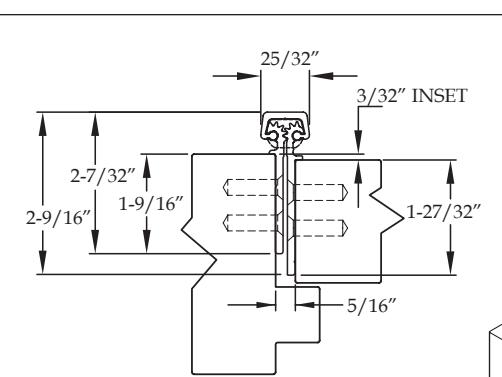

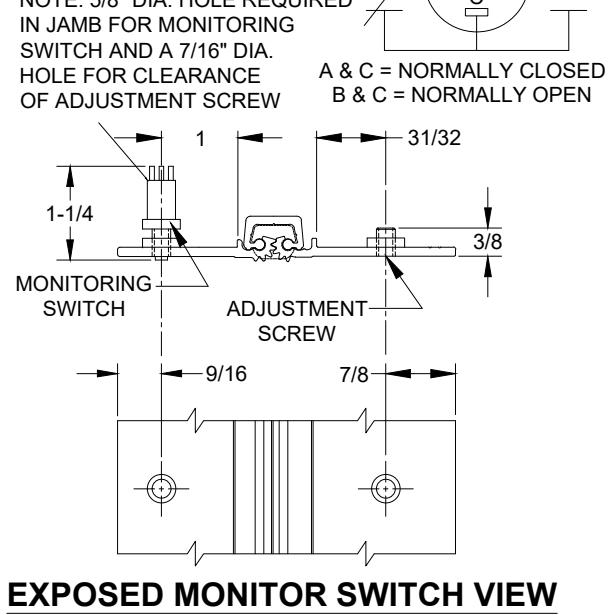

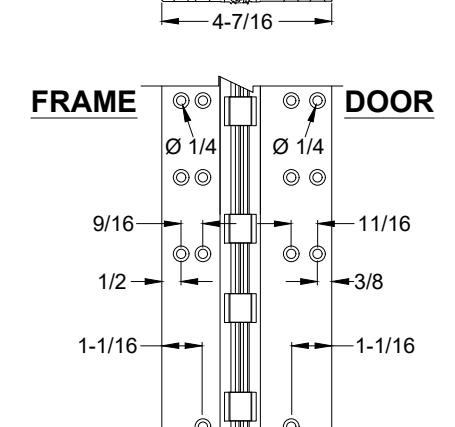

A260HD - "ES" OPTION, CONCEALED ELECTRIFICATION, FULL CONCEALED, ALUMINUM GEARED HINGE NOTES: 25/32 1. HINGES CUT TO CUSTOM LENGTH 3/32 DOOR INSET ARE CUT FROM BOTTOM OF HINGE. 2-7/32 1-9/16 2. SPECIFY HANDING WHEN ORDERING. -27/32 2-9/16 3. IF "M" OPTION (MOVEABLE PANEL) OR "R" OPTION (RÈMOVABLE PANEL) IS -5/16 CHOSEN, TEMPLATE REMAINS THE SAME. DOOR CLOSED POSITION 7/16 MIN.-CLEARANCE REQUIRED FOR CAP ROTATION 31/32 1-9/16 5/8 1-27/32 7/8 90° OPENING 9/16 FRAME EXPOSED MONITOR SWITCH VIEW, LEFT HAND SHOWN 4-7/16 SWITCH SCHEMATIC В/ NOTE: 5/8" DIA. HOLE REQUIRED 180° OPENING
-9/16
1-27/32
www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
A260HD-ES OPTION, CONCEALED ELECTRIFICATION-2-02
A260HD - "ES" OPTION CONCEALED ELECTRIFICATION
© 2020 ABH Mfg., Inc. printed in USA
PAGE 2 OF 2 REVISED 8-12-21

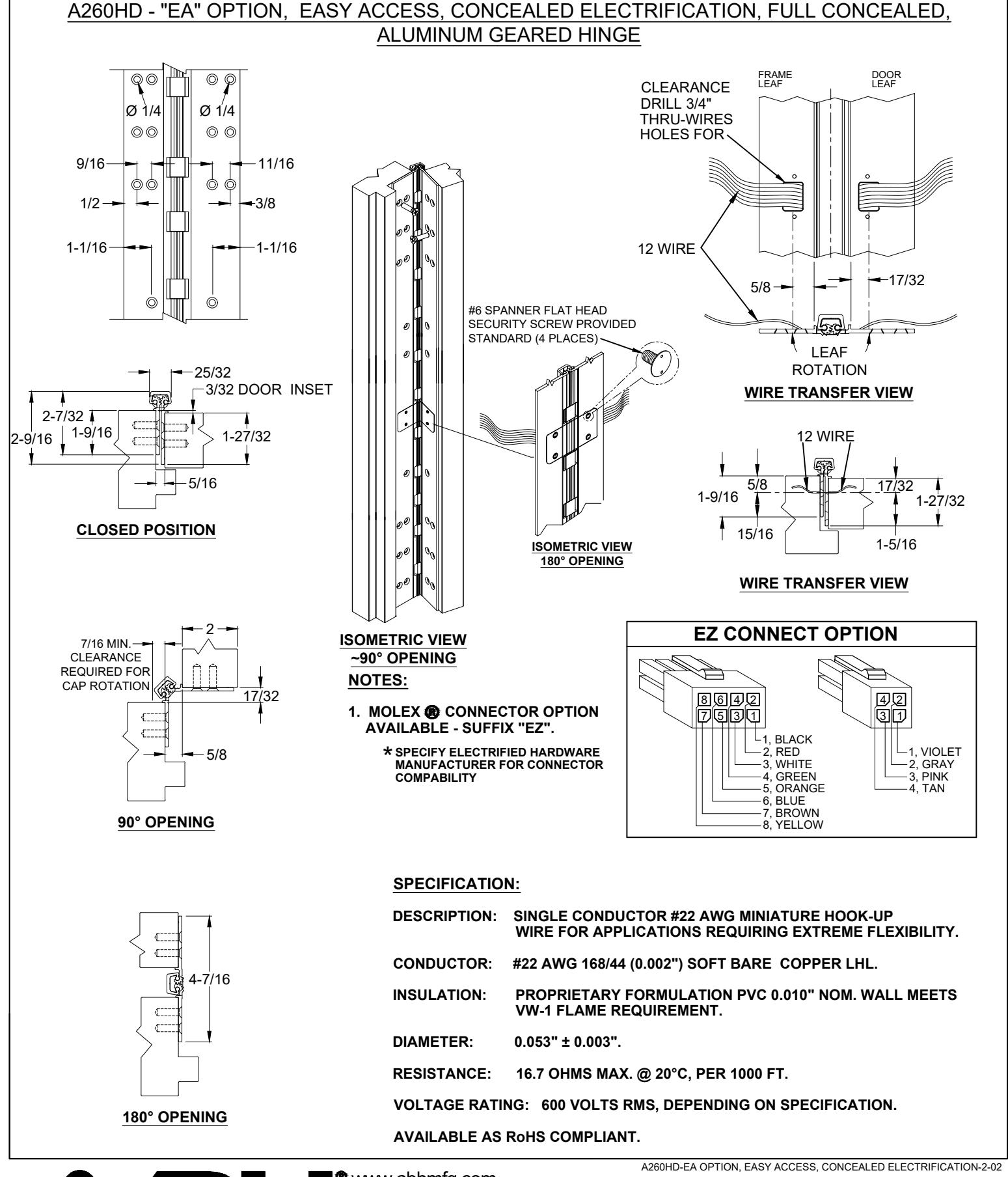

A260HD - "EA" OPTION, EASY ACCESS, CONCEALED ELECTRIFICATION, FULL CONCEALED, ALUMINUM GEARED HINGE
