Aluminum Continuous Geared Hinges

Full Concealed

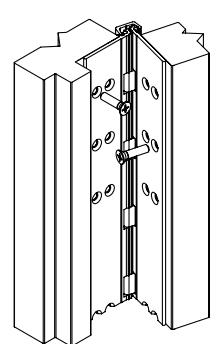

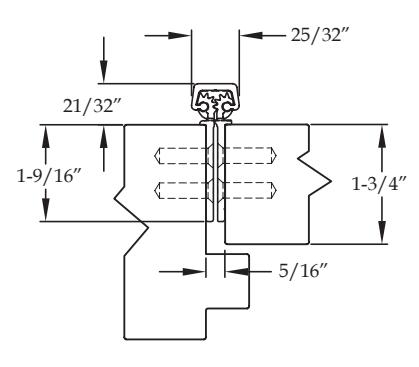

A110 HD A110 LL

Standard Features

• Full concealed, heavy duty
• •
• 48" door width maximum
• 450 lbs. door weight maximum
• " LL " model for doors up to 1,000 lbs. (lead-lined staggered hole pattern)
• • Fasteners : 12-24 x ⅞" undercut self-drilling, thread-forming tek machine screws
• • Standard lengths : 79", 83", 85", 95" and 120"
• • Finishes : Clear, dark bronze and black anodized
• • Fire Rating
  • Approved for use on metal swinging type minutes (Specify " FR " option for 3 hour rating)
  • Approved for use on wood swinging 60 minutes (Specify " FR " option for 90 minute rating)

Options Available

• See pages F-7 to F-8 for option availability and details

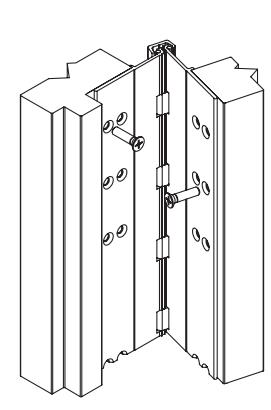

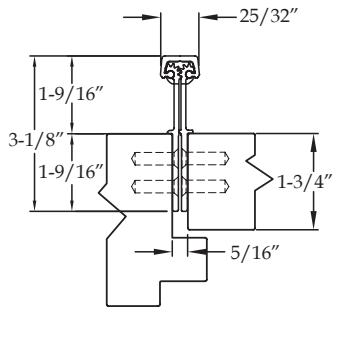

A110 WT

Standard Features

• Full concealed, heavy duty
• •
• Wide throw for applications that need extra clearance for the door or the frame
• 48" door width maximum
• 450 lbs. door weight maximum
• • Fasteners : 12-24 x ⅞" undercut self-drilling, thread-forming tek machine screws
• • Standard lengths : 79", 83", 85", 95" and 120"
• • Finishes : Clear, dark bronze and black anodized
• • Fire Rating
  • Approved for use on metal swinging type minutes (Specify " FR " option for 3 hour rating)
  • Approved for use on wood swinging 60 minutes (Specify " FR " option for 90 minute rating)

Options Available

• See pages F-7 to F-8 for option availability and details

ABH Manufacturing Inc.

1222 Ardmore Avenue Itasca, IL 60143

Ph: (630)875-9900 Fax: (800) 932-9224

www.abhmfg.com

ANSI/BHMA A156.26-2017 Certified Continuous Hinges

Edge Mounted-Barrel Type-Stainless Steel-Grade 1

ABH Model Number(s): A500, A505, A515

Edge Mounted-Gear Type-Aluminum-Grade 1

ABH Model Number(s): A110(HD/LL), A110WT(HD/LL), A111(HD/LL), A111WT(HD/LL), A130HD, A140(HD/LL), A150(HD/LL), A160(HD/LL), A240(HD/LL), A260(HD/LL), A270(HD/LL), A410(HD/LL)

Full Surface Mounted-Barrel Type-Stainless Steel-Grade 1

ABH Model Number(s): A502, A512

Full Surface Mounted- Gear Type- Aluminum-Grade 1

ABH Model Number(s): A210HD, A570HD, A571HD

Half-Surface Mounted-Barrel Type-Stainless Steel-Grade 1

ABH Model Number(s): A503

Half-Surface Mounted- Gear Type- Aluminum-Grade 1

ABH Model Number(s): A211HD, A213HD, A450HD, A460HD, A530HD, A540HD, A550HD

Half Mortise Mounted-Barrel Type-Stainless Steel-Grade 1

ABH Model Number(s): A504, A506

Half Mortise Mounted- Gear Type- Aluminum-Grade 1

ABH Model Number(s): A520HD

Swing Clear Edge Mounted-Barrel Type-Stainless Steel-Grade 1

ABH Model Number(s): A510, A511, A526, A529

Swing Clear Edge Mounted- Gear Type- Aluminum-Grade 1

ABH Model Number(s): A410(HD/LL), A211HD

HD-denotes Heavy Duty Hinge

LL-denotes Heavy Duty hinge with extra screw holes to accommodate the lead in lead lined doors
