A110HD - "EA" OPTION, EASY ACCESS CONCEALED ELECTRIFICATION, ALUMINUM GEARED HINGE 120" RIGHT HAND 95" 79" 83" LEFT HAND 85" DOOR FRAME NON-HANDED NON-HANDED NON-HANDED NON-HANDED 1-1/2 1-1/21 - 1/21-1/21-1/2 3-1/2 3-1/2 3-1/2 3-1/2 3-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 10 10 10 10 20 20 20 20 20 30 30 30 30 30 39-1/2 ₩ 🐧 40 41-1/2 * 42-1/2 47-1/2<del>≥</del>000 49 53 55 55 58-23/32 59 63 61-9/32 65 65 69 73 73-1/2 75 75 75-1/2 77-1/2 77-1/2 79-1/2 79-1/2 81-1/2 81-1/2 85 89-1/2 90 12 WIRE STANDARD 91-1/2 NOTES: 1. HINGES CUT TO CUSTOM LENGTH ARE CUT FROM BOTTOM OF HINGE, CUSTOM CUT HINGE REQUIRES HANDING. STANDARD HINGE SIZES & SCREW DETAIL NOMINAL DOOR HEIGHT 7'2" 6'8" 7'0" 8'0" 10'0 116-1/2 ACTUAL HINGE LENGTH 79" 85" 120 83" 95' 118-1/2 12-24 x 3/4" PHILLIPS FLAT HEAD, UNDERCUT, SELF 18 18 18 20 23 DRILLING, THREAD FORMING TEK MACHINE SCREW

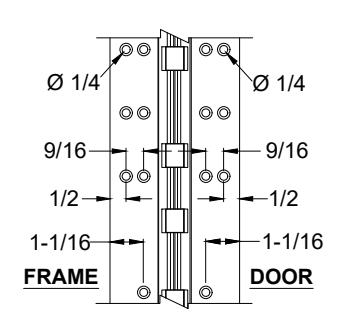

DOOR

12-24 x 3/4" PHILLIPS FLAT HEAD, UNDERCUT, SELF

DRILLING, THREAD FORMING TEK MACHINE SCREW

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A110HD-EA OPTION, EASY ACCESS CONCEALED ELECTRIFICATION-1-03.DWG

A110HD - "EA" OPTION EASY ACCESS CONCEALED ELECTRIFICATION

A110HD - "EA" OPTION, EASY ACCESS CONCEALED ELECTRIFICATION, ALUMINUM GEARED HINGE

NOTES:

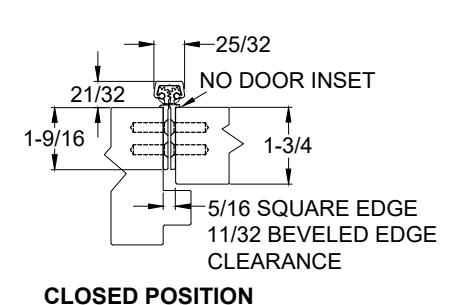

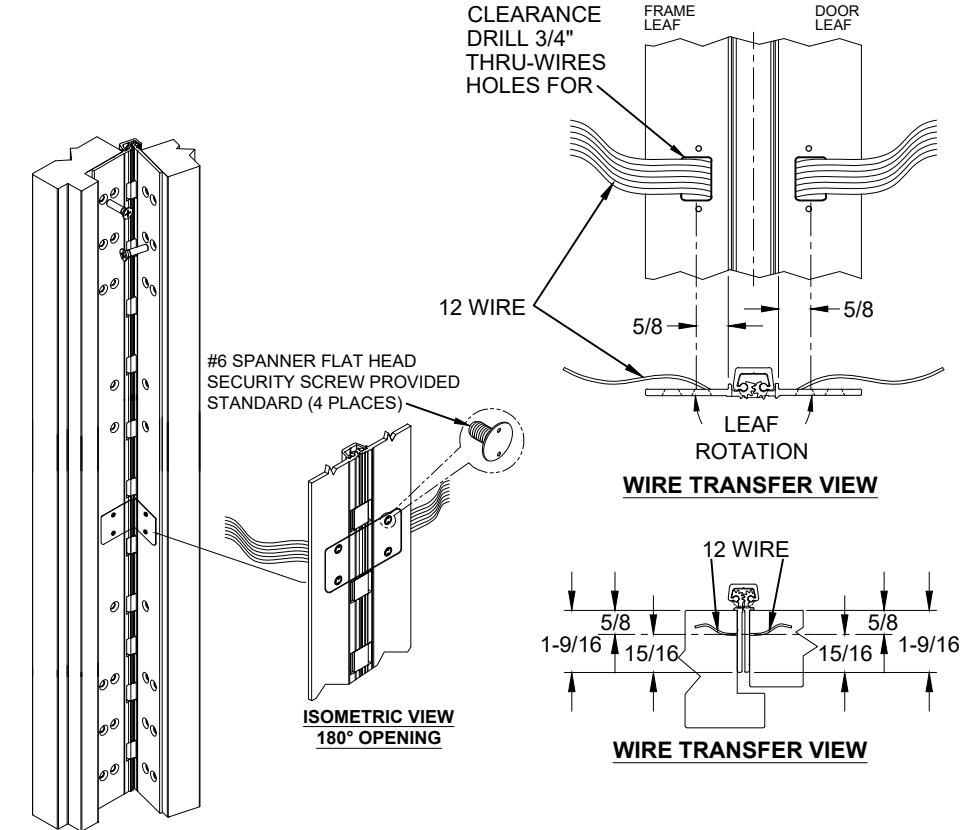

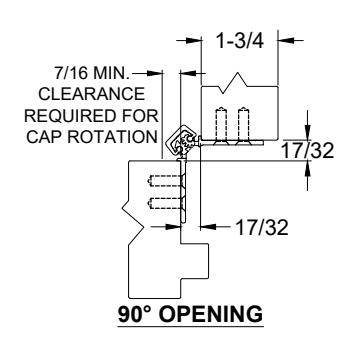

ISOMETRIC VIEW ~90° OPENING

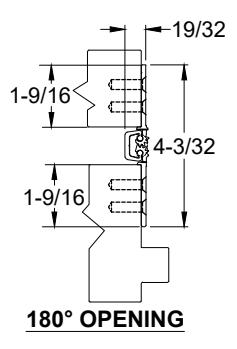

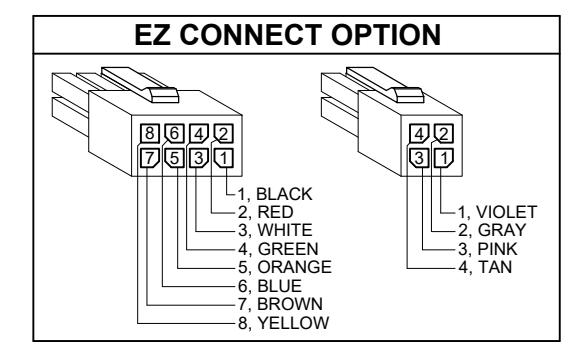

1. MOLEX ® CONNECTOR OPTION AVAILABLE SUFFIX "EZ".
- * SPECIFY ELECTRIFIED HARDWARE MANUFACTURER FOR CONNECTOR COMPABILITY

SPECIFICATION:

DESCRIPTION: SINGLE CONDUCTOR #22 AWG MINIATURE HOOK-UP

WIRE FOR APPLICATIONS REQUIRING EXTREME FLEXIBILITY.

CONDUCTOR: #22 AWG 168/44 (0.002") SOFT BARE COPPER LHL.

INSULATION: PROPRIETARY FORMULATION PVC 0.010" NOM. WALL MEETS

VW-1 FLAME REQUIREMENT.

DIAMETER: 0.053" ± 0.003".

RESISTANCE: 16.7 OHMS MAX. @ 20°C, PER 1000 FT.

VOLTAGE RATING: 600 VOLTS RMS, DEPENDING ON SPECIFICATION.

AVAILABLE AS ROHS COMPLIANT.

A110HD-EA OPTION, EASY ACCESS CONCEALED ELECTRIFICATION-2-03.DWG

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A110HD - "EA" OPTION EASY ACCESS CONCEALED ELECTRIFICATION

PAGE 2 OF 2 REVISED 9-23-20
