Aluminum Continuous Geared Hinges

Full Concealed

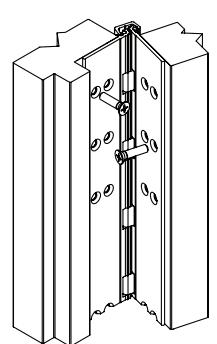

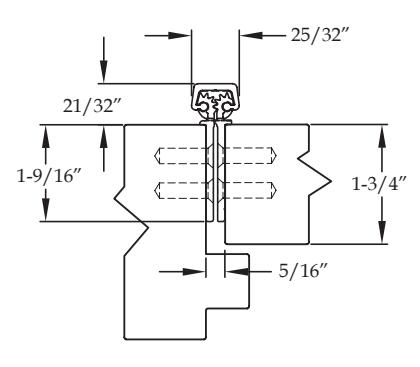

A110 HD A110 LL

Standard Features

• Full concealed, heavy duty
• •
• 48" door width maximum
• 450 lbs. door weight maximum
• " LL " model for doors up to 1,000 lbs. (lead-lined staggered hole pattern)
• • Fasteners : 12-24 x ⅞" undercut self-drilling, thread-forming tek machine screws
• • Standard lengths : 79", 83", 85", 95" and 120"
• • Finishes : Clear, dark bronze and black anodized
• • Fire Rating
  • Approved for use on metal swinging type minutes (Specify " FR " option for 3 hour rating)
  • Approved for use on wood swinging 60 minutes (Specify " FR " option for 90 minute rating)

Options Available

• See pages F-7 to F-8 for option availability and details

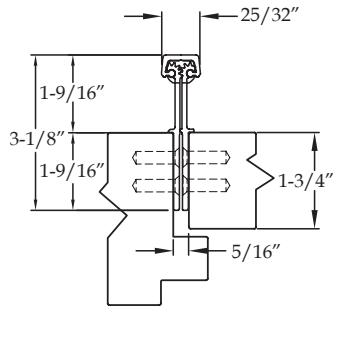

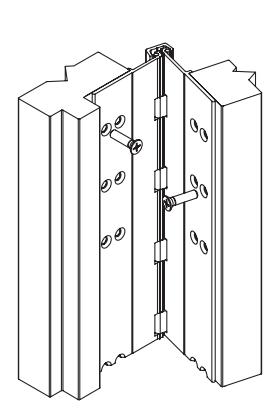

A110 WT

Standard Features

• Full concealed, heavy duty
• •
• Wide throw for applications that need extra clearance for the door or the frame
• 48" door width maximum
• 450 lbs. door weight maximum
• • Fasteners : 12-24 x ⅞" undercut self-drilling, thread-forming tek machine screws
• • Standard lengths : 79", 83", 85", 95" and 120"
• • Finishes : Clear, dark bronze and black anodized
• • Fire Rating
  • Approved for use on metal swinging type minutes (Specify " FR " option for 3 hour rating)
  • Approved for use on wood swinging 60 minutes (Specify " FR " option for 90 minute rating)

Options Available

• See pages F-7 to F-8 for option availability and details
