Zero Wheelchair Accessible Shower Threshold Model 8452 Installation Instructions 112473

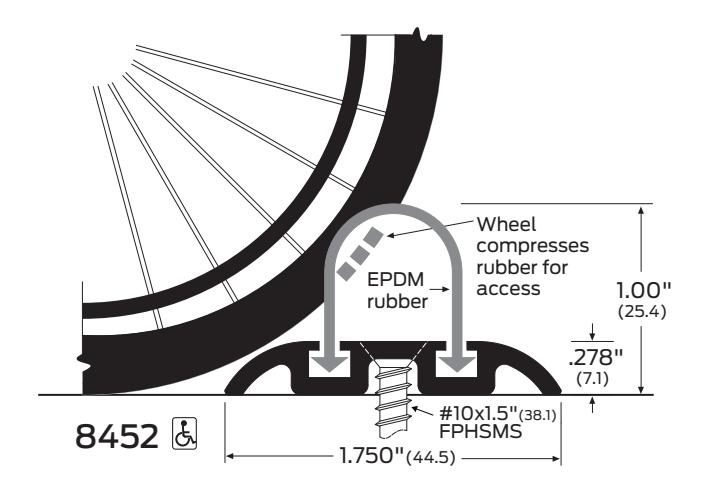

Model 8452 Wheelchair Accessible Shower Threshold

Installation Instructions

• Measure and cut threshold and rubber to size needed.
• Place threshold in its final resting position. Mark the holes to be drilled on the floor through the mounting holes in threshold with a pencil. Remove threshold.
• Drill the mounting holes on the floor with a hammer drill and 1/4" masonry bit. Insert anchors into the holes.
• 4 Caulk underneath and around edges of the threshold.

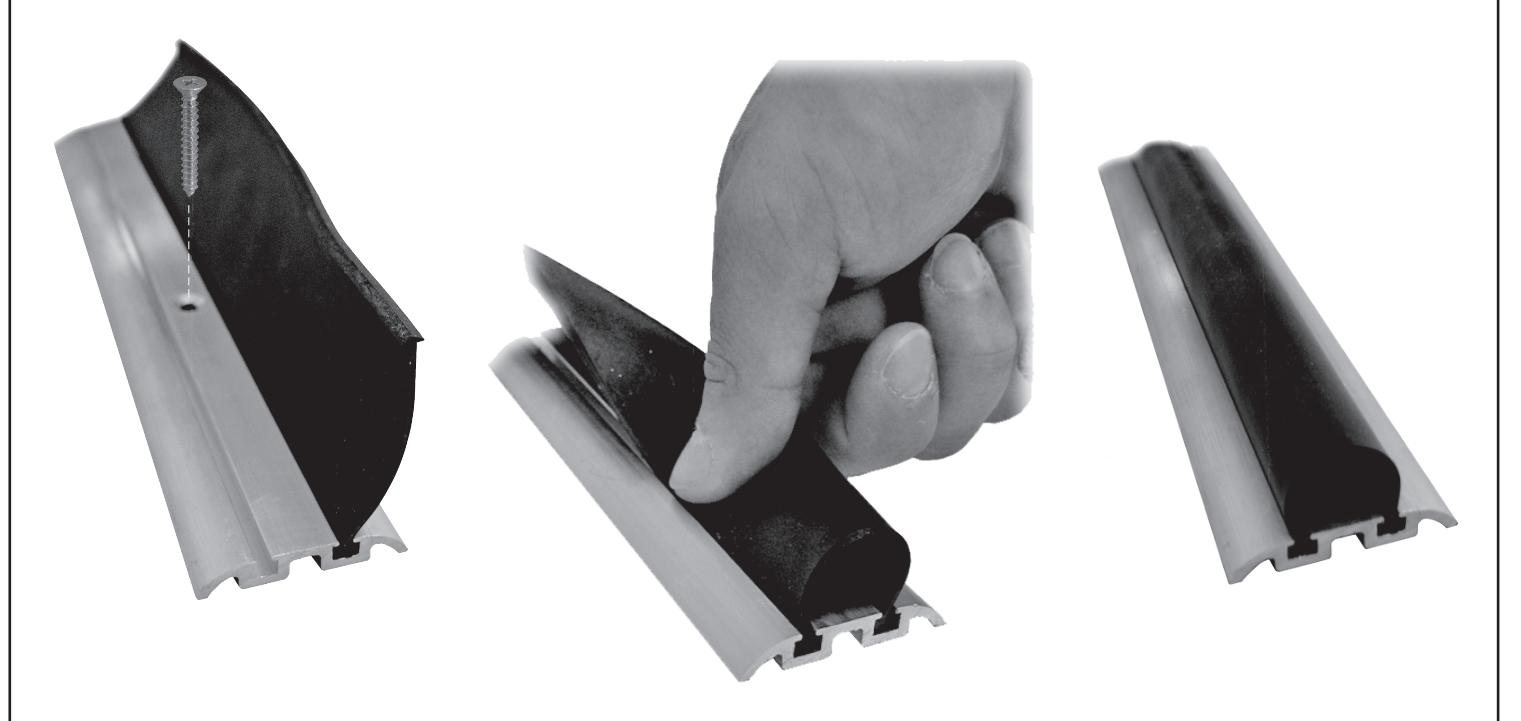

• Place threshold (with rubber inserted in one channel) to floor surface. Insert mounting screws and fasten with a screwdriver.

Press in the other edge of rubber into the second channel using your thumb or a screwdriver.
