Zero Traction Tread Adjustable Threshold 3676 Data Sheet 012598
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
3676
Traction tread
adjustable thresholds
Notes: Provided by:
Customer name: Job no: Date:

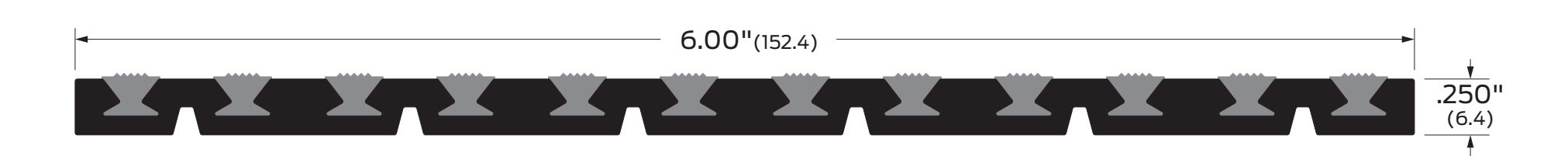

Image may not be shown to scale
Notes:
Supplied without mounting holes.
|
Certifications:
Fire rated-UL10c |
ANSI/BHMA:
3676A, 3676D, 3676G, 3676BK 3676A-E, 3676D-E, 3676G-E, 3676BK-E |
J37136
J37236 |
Finishes:
A BK D G |
Aluminum mill finish
Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized |
Options:
E EL |
Epoxy abrasive tread
Photoluminescent and abrasive epoxy tread |
|---|---|---|---|---|---|---|
