Zero Thermal Break Threshold 625 Data Sheet 012561 (1)

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

625

Part No: Part description:

Thermal break threshold

Notes: Provided by:

Customer name: Job no: Date:

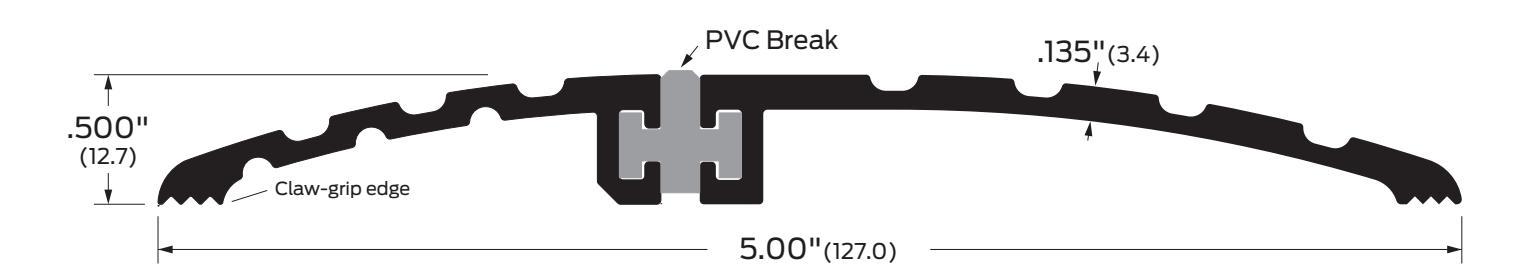

Image may not be shown to scale

Certifications:

Fire rated-UL10c

ADA Accessible

Finishes:

A Aluminum mill finish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive

epoxy tread

V3 Full body strength fill

EV3 Epoxy and full body strength fill

ELV3 Photoluminescent and abrasive

epoxy tread, full body strength fill
