Zero Thermal Break Threshold 624 Data Sheet 012560
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
624
Part No: Part description:

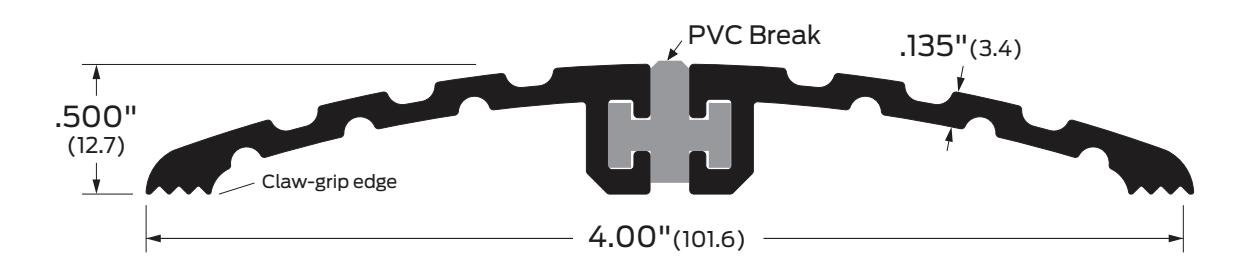

Thermal break threshold
Notes: Provided by:
Customer name: Job no: Date:
Image may not be shown to scale
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
|---|---|---|---|---|---|---|
| Fire rated-UL10c | 624A, 624D, 624G, 624BK | J32139 | A | Aluminum mill finish | E | Epoxy abrasive tread |
| ADA Accessible | 624A-E, 624D-E, 624G-D, 624BK-E | J32239 | BK | Aluminum black anodized | EL | Photoluminescent and abrasive |
| D | Aluminum dark bronze | epoxy tread | ||||
| anodized | V3 | Full body strength fill | ||||
| G | Aluminum gold anodized | EV3 | Epoxy and full body strength fill | |||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
|||||
