Zero Thermal Break Threshold 526 Data Sheet 012566
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
526
Part No: Part description:
Thermal break threshold
Notes: Provided by:
Customer name: Job no: Date:

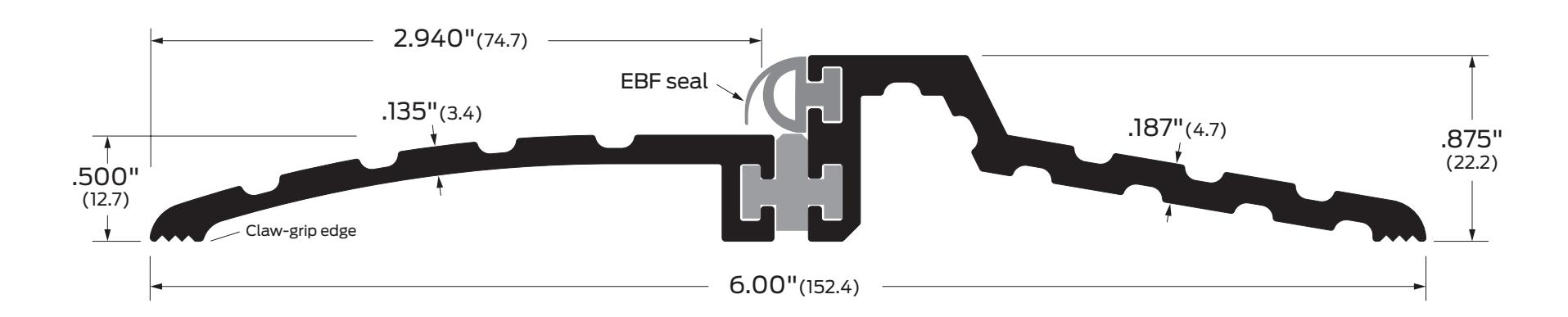

Image may not be shown to scale
Notes:
Neoprene extruded bulb/finger for double-sealing protection.
| Certifications: | Finishes: | Options: | ||
|---|---|---|---|---|
| Fire rated-UL10c | A | Aluminum mill finish | E | Epoxy abrasive tread |
| BK | Aluminum black anodized | EL |
Photoluminescent and abrasive
epoxy tread |
|
| D |
Aluminum dark bronze
anodized |
|||
| V3 | Full body strength fill | |||
| G | Aluminum gold anodized | EV3 | Epoxy and full body strength fill | |
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
|||
