2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
525
Part No: Part description:
Thermal break threshold
Notes: Provided by:
Customer name: Job no: Date:

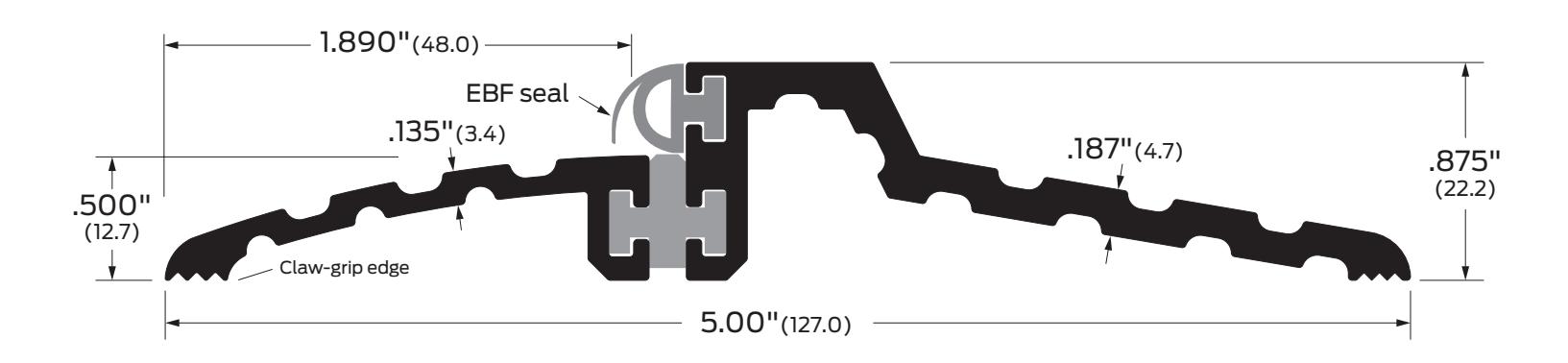

Image may not be shown to scale
Notes:
Neoprene extruded bulb/finger for double-sealing protection.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
|---|---|---|---|---|---|---|
| Fire rated-UL10c | 525A, 525BK, 525D, 525G | J36190 | A | Aluminum mill finish | E | Epoxy abrasive tread |
| BK | Aluminum black anodized | EL | Photoluminescent and abrasive | |||
| D |
Aluminum dark bronze
anodized |
epoxy tread | ||||
| V3 | Full body strength fill | |||||
| G | Aluminum gold anodized | EV3 | Epoxy and full body strength fill | |||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
|||||
