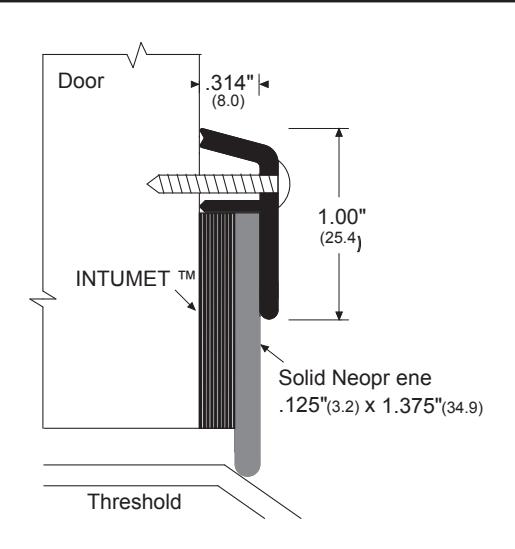

Model 339FS Sill Protection Sweep
Installation Instructions
- Measure and cut sweep to fit.
- 2 Close door. Hold sweep making gentle contact with the threshold.
- 3 Mark screw holes. Drill holes using a 2.5mm drill bit.
- 4 Install with screws provided.
- 5 Adjust sweep position to make proper contact with the threshold, allowing smooth operation of the door.
Product must be installed with Fire Label attached. Do not cover Fire Label with paint. Fire Label must be exposed at all times. Note:
