Zero Saddle Threshold 664 Data Sheet 012522
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
664
Part No: Part description:
Saddle threshold
Notes: Provided by:
Customer name: Job no: Date:

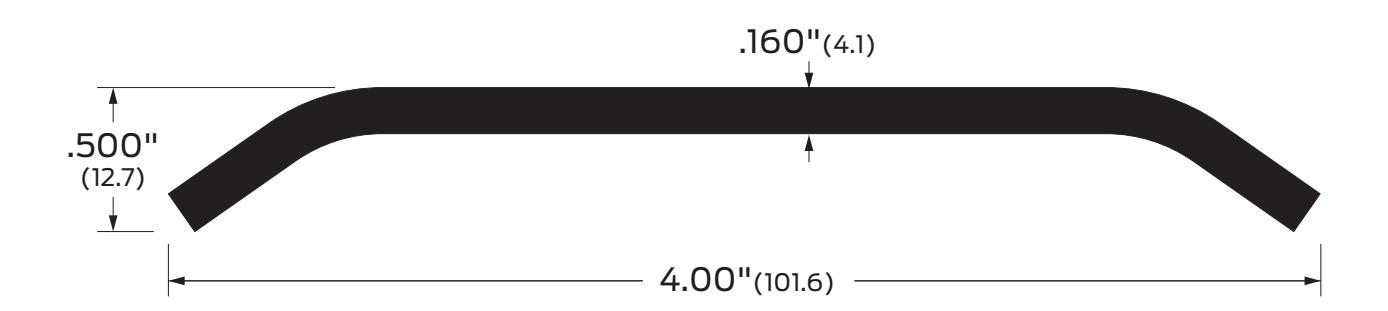

Image may not be shown to scale
Notes:
E-Epoxy recommended for public access openings
| Certifications: | ANSI/BHMA: | Finishes: | Options: | ||
|---|---|---|---|---|---|
| Fire rated-UL10c | 664STST | J52300 | Stainless steel only | E | Epoxy abrasive tread |
| 664STST-E | J52400 | EL |
Photoluminescent and abrasive
epoxy tread |
||
| V3 | Full body strength fill | ||||
| EV3 | Epoxy and full body strength fill | ||||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
||||
