Zero Saddle Threshold 6575 Data Sheet 012531
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
6575
Saddle threshold
Notes: Provided by:
Customer name: Job no: Date:

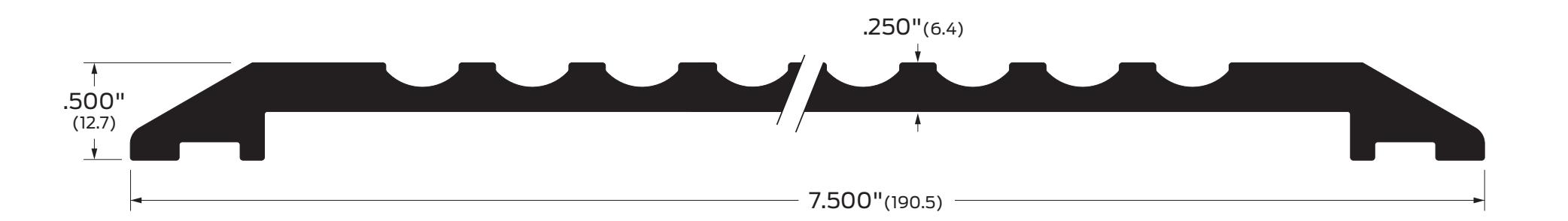

Image may not be shown to scale
Notes:
Model 6570 (see Saddle Thresholds section) may also be suitable for this application (Type 1 only), depending on configuration with floor-mounted automatic door closers. Check that the bevel allows adequate clearance.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
|---|---|---|---|---|---|---|
| Fire rated-UL10c | 657A, 675BK, 657D, 657G | J32100, J32130 | A | Aluminum mill finish | E | Epoxy abrasive tread |
| 657A-E, 675BK-E, 657D-E, 657G-E | J32200, J32230 | BK | Aluminum black anodized | EL | Photoluminescent and abrasive | |
| D | Aluminum dark bronze | epoxy tread | ||||
| anodized | V3 | Full body strength fill | ||||
| G | Aluminum gold anodized | EV3 | Epoxy and full body strength fill | |||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
|||||
