2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
6570
Part No: Part description:
Saddle threshold
Notes: Provided by:
Customer name: Job no: Date:

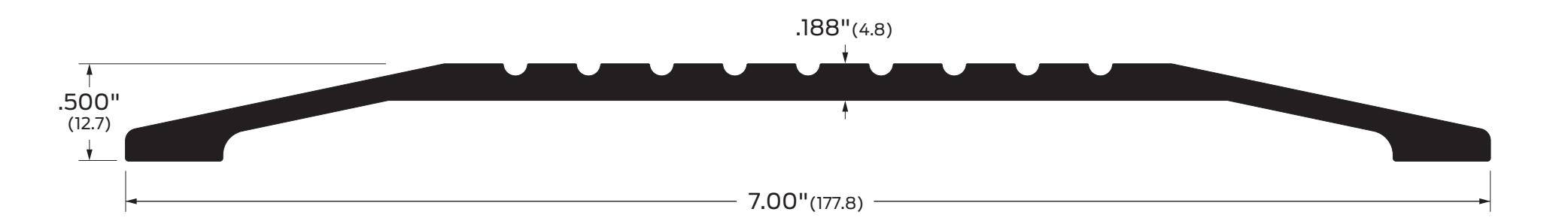

Image may not be shown to scale
Notes:
Supplied without mounting holes.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
| Fire rated-UL10c | 6570A, 6570BK, 6570D, 6570G | J32100, J32130 | A | Aluminum mill finish | E | Epoxy abrasive tread |
| ADA Accessible | 6570A-E, 6570BK-E, 6570D-E, 6570G-E J32200, J32230 | BK | Aluminum black anodized | EL | Photoluminescent and abrasive | |
| D |
Aluminum dark bronze
anodized |
epoxy tread | ||||
| V3 | Full body strength fill | |||||
| G | Aluminum gold anodized | EV3 | Epoxy and full body strength fill | |||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
|||||
