2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

656

Part No: Part description:

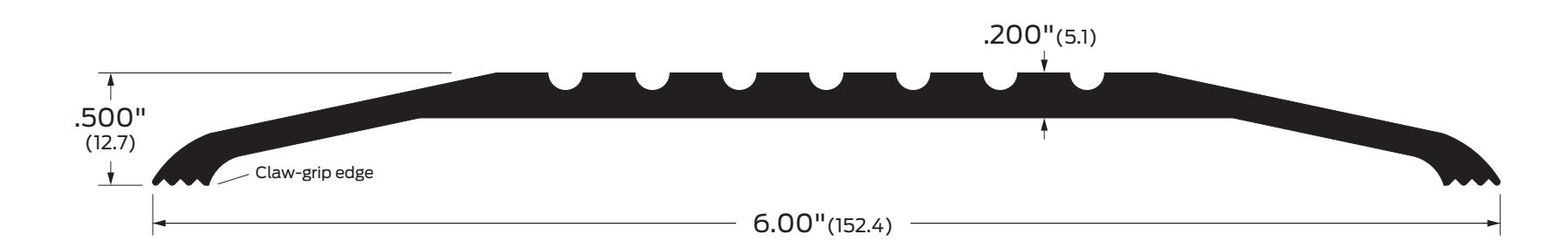

Saddle threshold

Notes: Provided by:

Customer name: Job no: Date:

Image may not be shown to scale

Notes:

Supplied without mounting holes.

Certifications:

Fire rated-UL10c

ADA Accessible

ANSI/BHMA:

656A, 656BK, 656D, 656E J32100, J32130 656A-E, 656BK-E, 656D-E, 656G-E J32200, J32230 656B J12100, J12130 656B-E J12200, J12230

Finishes:

A Aluminum mill finish BK Aluminum black anodized D Aluminum dark bronze anodized G Aluminum gold anodized

B Bronze, architectural mill finish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength fill

EV3 Epoxy and full body strength fill

ELV3 Photoluminescent and abrasive epoxy tread, full body strength fill

(not available for B-ORB finish)
