Zero Saddle Threshold 655 Data Sheet 012525
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
655

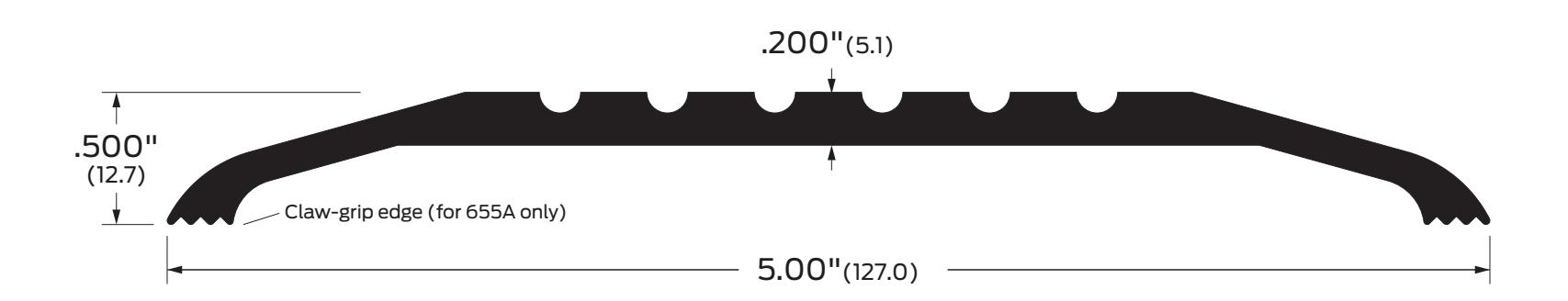

Saddle threshold
Notes: Provided by:
Customer name: Job no: Date:
Image may not be shown to scale
Certifications:
Fire rated-UL10c
ADA Accessible
ANSI/BHMA:
655A, 655BK, 655D, 655G J32100, J32130 655A-E, 655BK-E, 655D-E, 655G-E J32200, J32230 655B J12100, J12130 655B-E J12200, J12230
Finishes:
A Aluminum mill finish BK Aluminum black anodized D Aluminum dark bronze anodized G Aluminum gold anodized B Bronze, architectural mill finish
B-ORB Oil-rubbed bronze
Options:
E Epoxy abrasive tread
EL Photoluminescent and abrasive epoxy tread
V3 Full body strength fill
EV3 Epoxy and full body strength fill
ELV3 Photoluminescent and abrasive epoxy tread, full body strength fill
(not available for B-ORB finish)
