Zero Saddle Threshold 547 Data Sheet 012518
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
547
Saddle threshold
Notes: Provided by:
Customer name: Job no: Date:

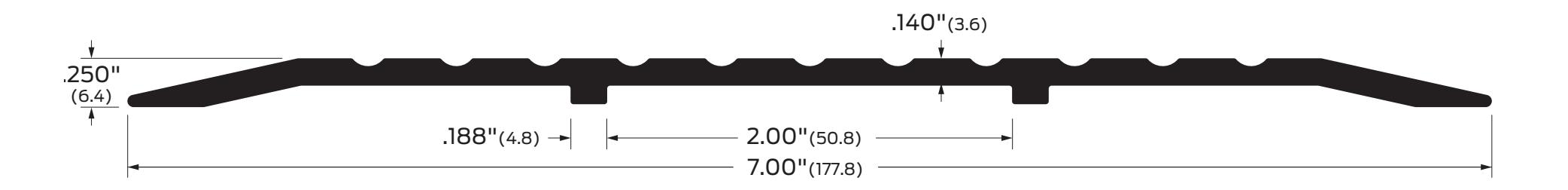

Image may not be shown to scale
Notes:
Supplied without mounting holes.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
| Fire rated-UL10c | 547A, 547BK, 547D, 547G | J32100, J32130 | A | Aluminum mill finish | E | Epoxy abrasive tread |
| ADA Accessible | 547A-E, 547BK-E, 547D-E, 547G-E | J32200, J32230 | BK | Aluminum black anodized | EL |
Photoluminescent and abrasive
epoxy tread |
| D | Aluminum dark bronze | |||||
| anodized | V3 | Full body strength fill | ||||
| G | Aluminum gold anodized | EV3 | Epoxy and full body strength fill | |||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
|||||
