Zero Saddle Threshold 546 Data Sheet 012517

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

546

Part No: Part description:

Saddle threshold

Notes: Provided by:

Customer name: Job no: Date:

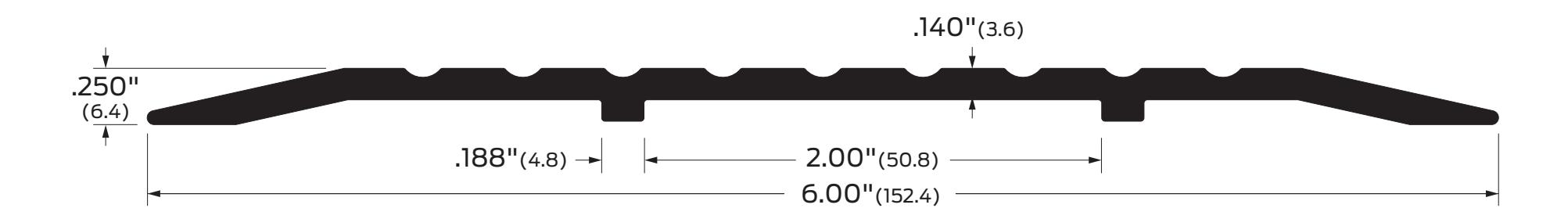

Image may not be shown to scale

Notes:

Supplied without mounting holes.

Certifications:	ANSI/BHMA:		Finishes:		Options:
Fire rated-UL10c	546A, 546BK, 546D, 546G	J32100, J32130	A	Aluminum mill finish	E	Epoxy abrasive tread
ADA Accessible	546A-E, 545BK-E, 546D-E, 546G-E	J32200, J32230	BK	Aluminum black anodized	EL	Photoluminescent and abrasive epoxy tread
			D	Aluminum dark bronze anodized
					V3	Full body strength fill
			G	Aluminum gold anodized	EV3	Epoxy and full body strength fill
					ELV3	Photoluminescent and abrasive epoxy tread, full body strength fill
