2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
545
Part No: Part description:
Saddle threshold
Notes: Provided by:
Customer name: Job no: Date:

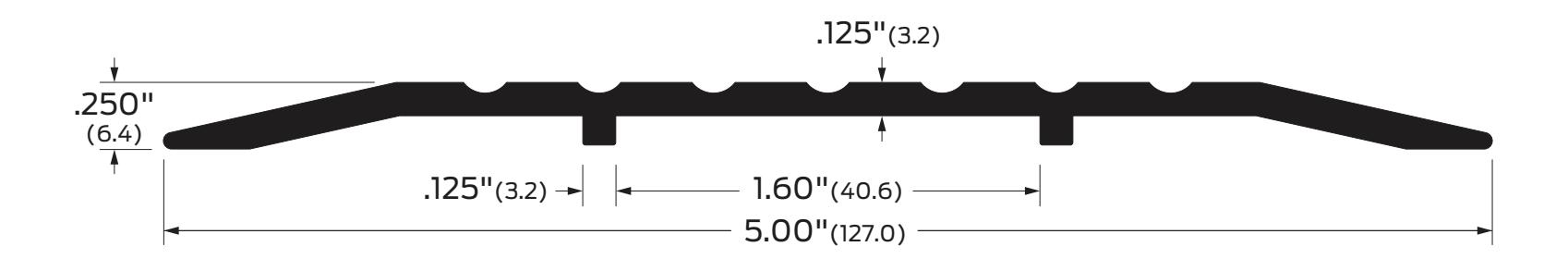

Image may not be shown to scale
| Certifications: | ANSI/BHMA: | Finishes: | Options: | ||||
|---|---|---|---|---|---|---|---|
| Fire rated-UL10c | 545A, 545BK, 545D, 545G | J32100, J32130 | A | Aluminum mill finish | E | Epoxy abrasive tread | |
| ADA Accessible | 545A-E, 545BK-E, 545D-E, 545G-E | J32200, J32230 | BK | Aluminum black anodized | EL |
Photoluminescent and abrasive
epoxy tread |
|
| D |
Aluminum dark bronze
anodized |
||||||
| V3 | Full body strength fill | ||||||
| G | Aluminum gold anodized | EV3 | Epoxy and full body strength fill | ||||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
||||||
