Zero Saddle Threshold 164 Data Sheet 012523

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

Part No: Part description:

164

Saddle threshold

Notes: Provided by:

Customer name: Job no: Date:

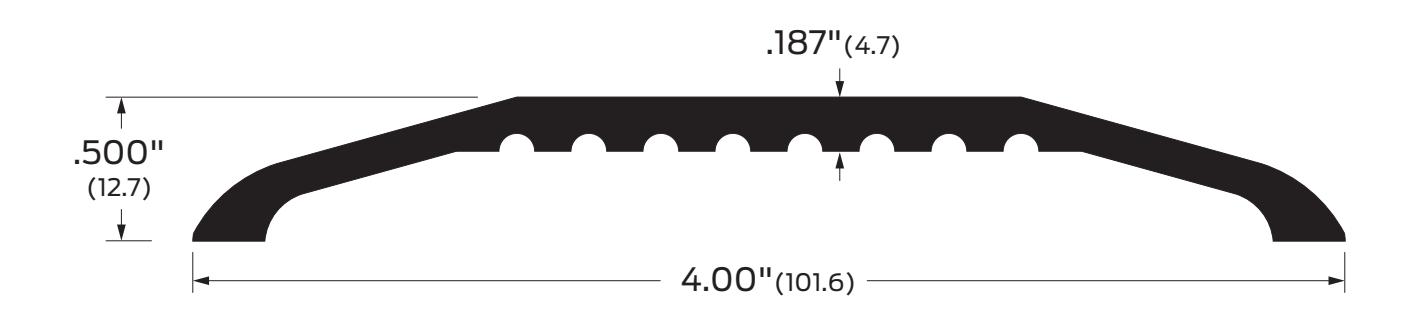

Image may not be shown to scale

Notes:

Model #654 is a recommended alternative if epoxy and/or body strength fills are desired.

Certifications:

Fire rated-UL10c

ADA Accessible

Air Infiltration

Sound

ANSI/BHMA:

164A, 164BK, 164D, 164G J32300, J32330 164A-E, 164BK-E, 164D-E, 164G-E J32400, J32430

Finishes:

A Aluminum mill finish

BK Aluminum black anodized

D Aluminum dark bronze

anodized

G Aluminum gold anodized
