Zero Ramps 238 Data Sheet 012608
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
238
Part No: Part description:
Ramps
Notes: Provided by:
Customer name: Job no: Date:

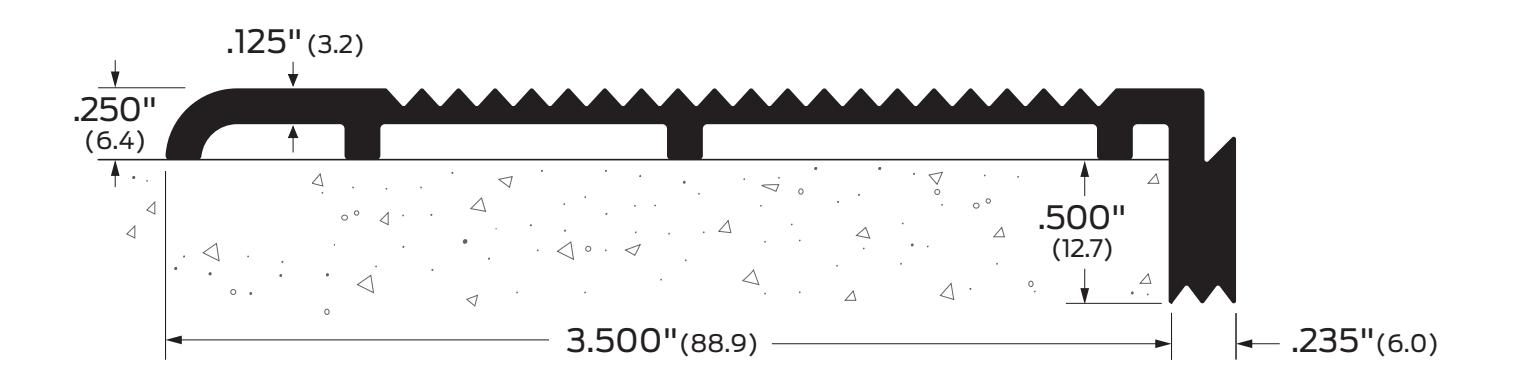

Image may not be shown to scale
Notes:
Order components separately. Supplied without mounting holes.
|
Certifications:
Fire rated-UL10c |
ANSI/BHMA:
238A, 238D, 238G, 238BK 238A-E, 238D-E, 238G-E, 238BK-E |
J38100, J38160
J38100, J38260 |
Finishes:
A BK D |
Aluminum mill finish
Aluminum black anodized Aluminum dark bronze anodized |
Options:
E EL |
Epoxy abrasive tread
Photoluminescent and abrasive epoxy tread |
|---|---|---|---|---|---|---|
| G | Aluminum gold anodized |
