Zero Ramps 236 Data Sheet 012603
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
236
Ramps
Notes: Provided by:
Customer name: Job no: Date:

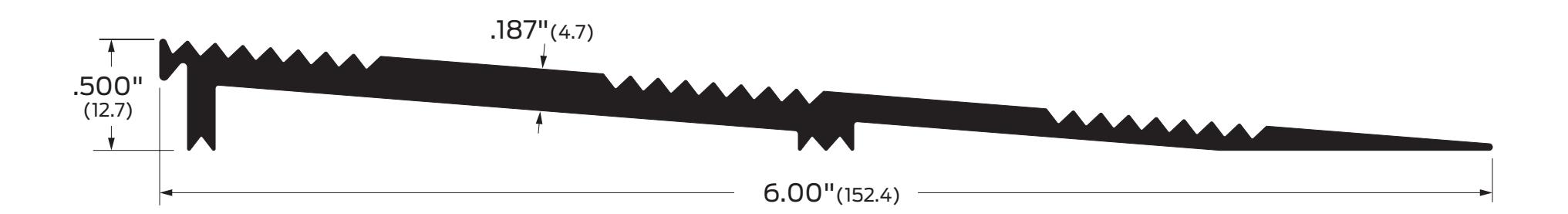

Image may not be shown to scale
Notes:
Supplied without mounting holes.
|
Certifications:
Fire rated-UL10c ADA Accessible |
ANSI/BHMA:
236A, 236D, 236G, 2361BK 236A-E, 236D-E, 236G-E, 236BK-E |
J38100, J38160
J38200, J38230 |
Finishes:
A Aluminum mill finish BK Aluminum black anodized D Aluminum dark bronze anodized G Aluminum gold anodized |
Options:
E Epoxy abrasive tread EL Photoluminescent and abrasive epoxy tread |
||
|---|---|---|---|---|---|---|
