Part No: Part description:

235

Ramps

Notes: Provided by:

Customer name: Job no: Date:

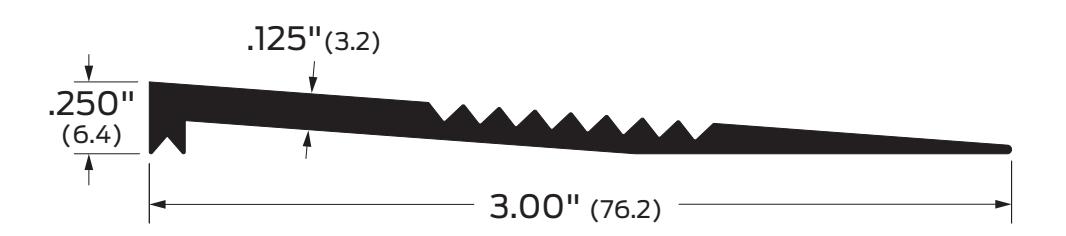

Image may not be shown to scale

Notes:

Supplied without mounting holes.

Certifications: Fire rated-UL10c ADA Accessible

ANSI/BHMA:

235A, 235D, 235G, 235BK J38100, J38160, J38163 235A-E, 235D-E, 235G-E, 235BK-E J38230

Finishes:

A Aluminum mill finish BK Aluminum black anodized D Aluminum dark bronze anodized G Aluminum gold anodized

Options:

E Epoxy abrasive tread EL Photoluminescent and abrasive epoxy tread
