Model 11 Rain Drip
Installation Instructions
- Cut the rain drip length to fit. (see below)
- 2 Mark hole locations for screws. Drill holes for screws if necessary.
- 3 Fasten screws.
- 4 Caulk the top edge of rain drip to prevent water penetration.
TYPICAL INSTALLATION:
Installation on exterior face of frame header.
Length of rain drip should be the full width of the door frame.

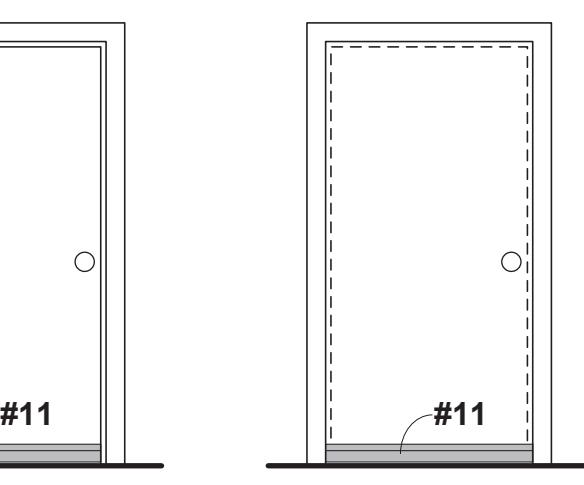

Installation on exterior face of door.
Inswing Door : Length of rain drip should be fit within the door jamb.
Outswing Door : Length of rain drip should be the width of the door.
