Zero Rabbeted Thresholds 565 Data Sheet 012559

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

565

Part No: Part description:

Rabbeted threshold

Notes: Provided by:

Customer name: Job no: Date:

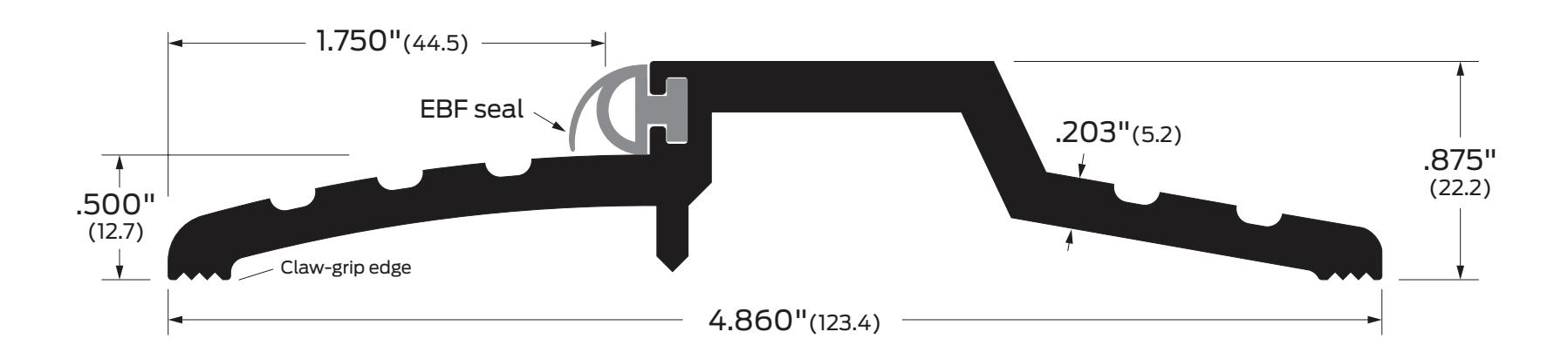

Image may not be shown to scale

Notes:

Neoprene extruded bulb/finger for double-sealing protection.

Certifications:	ANSI/BHMA:		Finishes:		Options:
Fire rated-UL10c	565A, 565D, 565G, 565BK	J36100	A	Aluminum mill finish	E	Epoxy abrasive tread
Air Infiltration	565A-E, 565D-E, 565G-E, 565BK-E	J36200	BK	Aluminum black anodized	EL	Photoluminescent and abrasive
Sound	565B	J16100	D	Aluminum dark bronze anodized		epoxy tread
	565B-E	J16200			V3	Full body strength fill
			G	Aluminum gold anodized	EV3	Epoxy and full body strength fill
			B	Bronze, architectural mill finish	ELV3	Photoluminescent and abrasive
			B-ORB	Oil-rubbed bronze		epoxy tread, full body strength fill
						(not available for B-ORB finish)
