Zero Rabbeted Threshold 663 Data Sheet 012553
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
663 Rabbeted threshold
Notes: Provided by:
Customer name: Job no: Date:

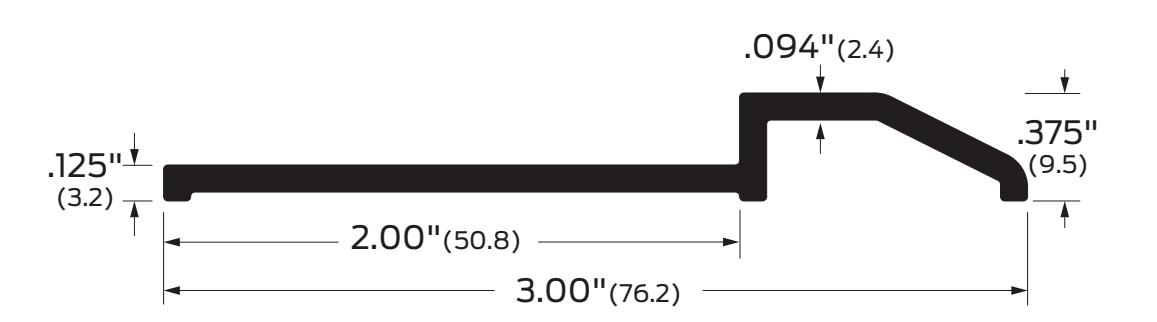

Image may not be shown to scale
Notes:
Rabbeted, butt & transition. Supplied without mounting holes.
|
Certifications:
Fire rated-UL10c |
ANSI/BHMA:
663A, 663D, 663G , 663BK |
J37300, J35300 |
Finishes:
A BK D G |
Aluminum mill finish
Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized |
|---|---|---|---|---|
