2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
568
Part No: Part description:
Rabbeted threshold
Notes: Provided by:
Customer name: Job no: Date:

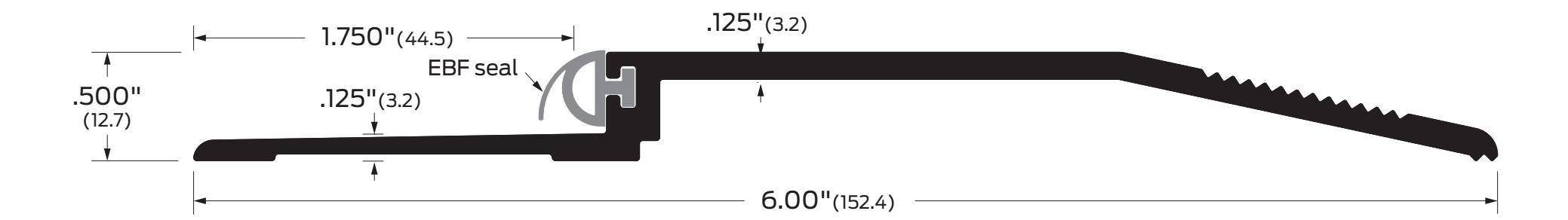

Image may not be shown to scale
Notes:
Neoprene extruded bulb/finger for double-sealing protection.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | ||||
|---|---|---|---|---|---|---|---|
| Fire rated-UL10c | 568A, 568D, 568G, 568BK | J36100 | A | Aluminum mill finish | E | Epoxy abrasive tread | |
| 568A-E, 568D-E, 568G-E, 568BK-E | J36200 | BK | Aluminum black anodized | EL | Photoluminescent and abrasive | ||
| D | Aluminum dark bronze | epoxy tread | |||||
| anodized | V3 | Full body strength fill | |||||
| G | Aluminum gold anodized | EV3 | Epoxy and full body strength fill | ||||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
||||||
