Zero Rabbeted Threshold 566 Data Sheet 012549
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
566
Rabbeted threshold
Notes: Provided by:
Customer name: Job no: Date:

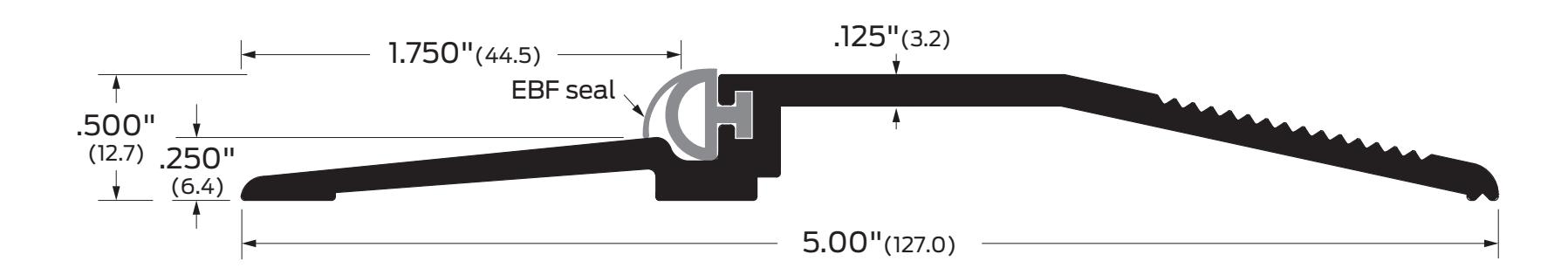

Image may not be shown to scale
Notes:
Neoprene extruded bulb/finger for double-sealing protection.
| Neoprene extruded bulb/finger for double-sealing protection. | ||||||
|---|---|---|---|---|---|---|
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
| Fire rated-UL10c | 566A, 566D, 566G | J36100, J36130 | A | Aluminum mill finish | E | Epoxy abrasive tread |
| ADA Accessible | 566A-E, 566D-E, 566G-E, 566BK-E | J36200, J36230 | BK | Aluminum black anodized | EL | Photoluminescent and abrasive |
| Sound | D | Aluminum dark bronze | epoxy tread | |||
| anodized | V3 | Full body strength fill | ||||
| G | Aluminum gold anodized | EV3 | Epoxy and full body strength fill | |||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
|||||
