2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

564

Part No: Part description:

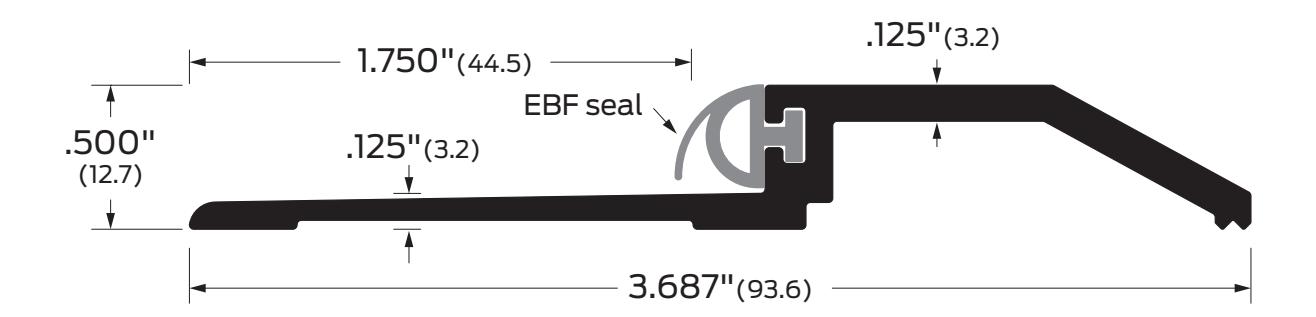

Rabbeted threshold

Notes: Provided by:

Customer name: Job no: Date:

Image may not be shown to scale

Notes:

Suitable for sound control applications and OEM use. Neoprene extruded bulb/finger for double-sealing protection.

Certifications:

Fire rated-UL10c

Air Infiltration

Sound

ANSI/BHMA:

564A, 564D, 564G, 564BK J36300 564A-E, 564D-E, 564G-E, 564BK-E J36400 564B J16300 564B-E J16400

Finishes:

A Aluminum mill finish BK Aluminum black anodized D Aluminum dark bronze anodized G Aluminum gold anodized B Bronze, architectural mill finish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength fill

EV3 Epoxy and full body strength fill

ELV3 Photoluminescent and abrasive epoxy tread, full body strength fill

(not available for B-ORB finish)
