Zero Rabbeted Threshold 561 Data Sheet 012557
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
561
Rabbeted threshold
Notes: Provided by:
Customer name: Job no: Date:

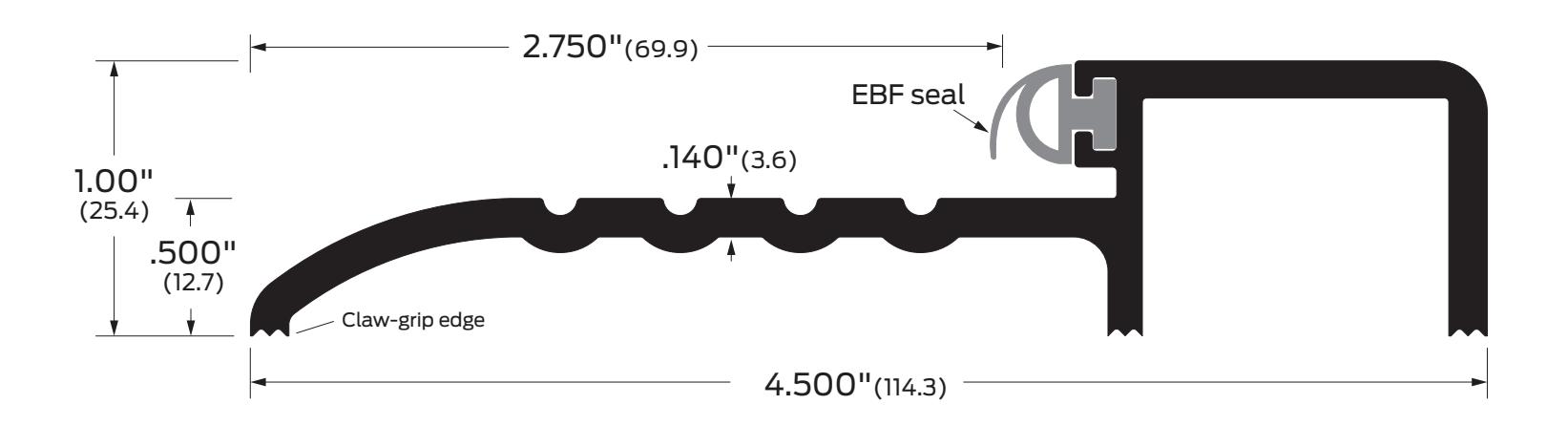

Image may not be shown to scale
Notes:
Neoprene extruded bulb/finger for double-sealing protection.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
| Fire rated-UL10c | 561A, 561D, 561G, 561BK | J36100 | A | Aluminum mill finish | E | Epoxy abrasive tread |
| 561A-E, 561D-E,561G-E, 561BK-E | J36200 |
BK
D |
Aluminum black anodized | EL |
Photoluminescent and abrasive
epoxy tread |
|
| Aluminum dark bronze | ||||||
| anodized | V3 | Full body strength fill | ||||
| G | Aluminum gold anodized | EV3 | Epoxy and full body strength fill | |||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
|||||
