Zero Rabbeted Threshold 560 Data Sheet 012556

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

Part No: Part description:

560 Rabbeted threshold

Notes: Provided by:

Customer name: Job no: Date:

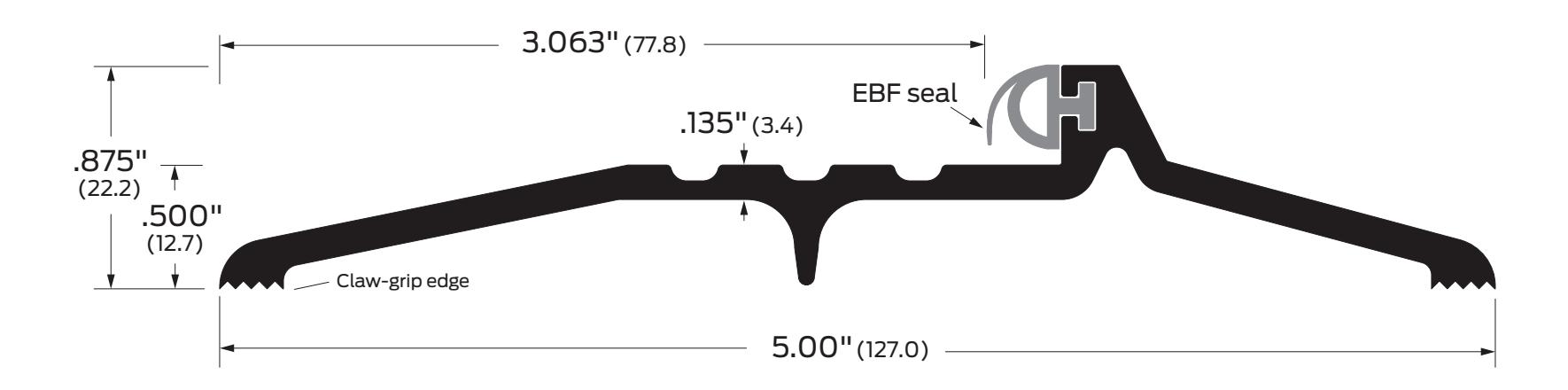

Image may not be shown to scale

Notes:

For latch track hardware.

Neoprene extruded bulb/finger for double-sealing protection.

Certifications:	ANSI/BHMA:		Finishes:		Options:
Fire rated-UL10c	560A, 560D, 560G, 560BK	J36100	A	Aluminum mill finish	E	Epoxy abrasive tread
	560A-E, 560D-E, 560G-E, 560BK-E	J36200	BK	Aluminum black anodized	EL	Photoluminescent and abrasive
			D	Aluminum dark bronze		epoxy tread
				anodized	V3	Full body strength fill
			G	Aluminum gold anodized	EV3	Epoxy and full body strength fill
					ELV3	Photoluminescent and abrasive epoxy tread, full body strength fill
