Zero Rabbeted Threshold 267 Data Sheet 012552

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

Part No: Part description:

267 Rabbeted threshold

Notes: Provided by:

Customer name: Job no: Date:

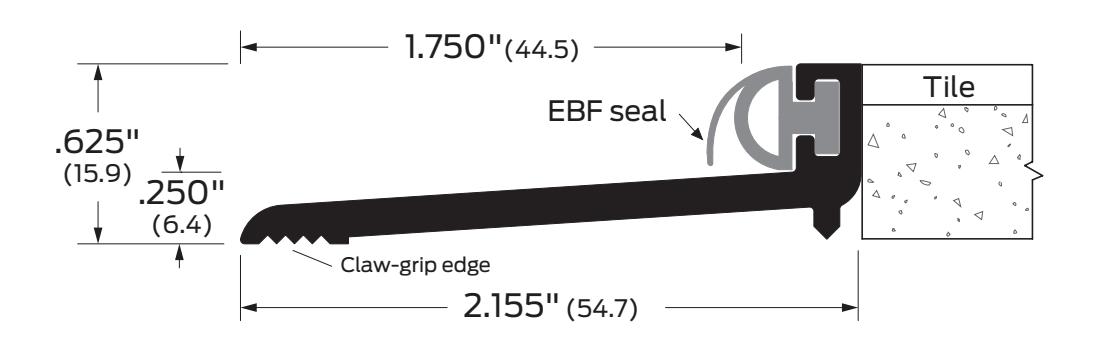

Image may not be shown to scale

Notes:

Suitable for uneven floors. Neoprene extruded bulb/finger for double-sealing protection.

Certifications:	ANSI/BHMA:		Finishes:		Options:
Fire rated-UL10c	267A, 264D, 267G, 267BK	J36300	A	Aluminum mill finish	E	Epoxy abrasive tread
	267A-E, 267D-E, 267G-E, 267BK-E	J36400	BK	Aluminum black anodized	EL	Photoluminescent and abrasive
			D	Aluminum dark bronze anodized		epoxy tread
			G	Aluminum gold anodized
