Zero Rabbeted Threshold 265 Data Sheet 012554

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

Part No: Part description:

265 Rabbeted threshold

Notes: Provided by:

Customer name: Job no: Date:

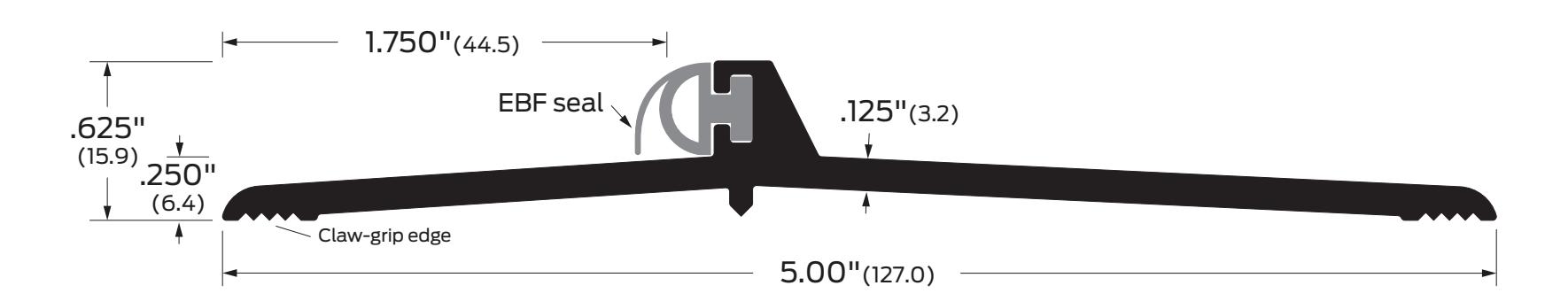

Image may not be shown to scale

Notes:

For latch track hardware. Neoprene extruded bulb/finger for double-sealing protection.

Certifications:	ANSI/BHMA:		Finishes:		Options:
Fire rated-UL10c	265A, 265D, 265G, 265BK	J36300	A	Aluminum mill finish	E	Epoxy abrasive tread
	265A-E, 265D-E, 265G-E, 265BK-E	J36400	BK	Aluminum black anodized	EL	Photoluminescent and abrasive
			D	Aluminum dark bronze anodized		epoxy tread
					V3	Full body strength fill
			G	Aluminum gold anodized	EV3	Epoxy and full body strength fill
					ELV3	Photoluminescent and abrasive epoxy tread, full body strength fill
