Zero Offset Threshold 103 Data Sheet 012547
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
103
Offset threshold
Notes: Provided by:
Customer name: Job no: Date:

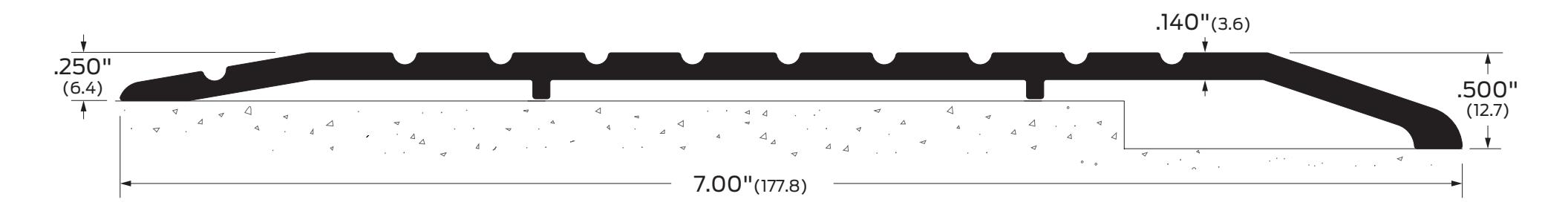

Image may not be shown to scale
Notes:
Handicap offset. Supplied without mounting holes.
|
Certifications:
Fire rated-UL10c ADA Accessible |
ANSI/BHMA:
103A, 103D, 103G, 103BK 103A-E, 103D-E, 103G-E, 103BK-E |
J32180
J32280 |
Finishes:
A BK D G |
Aluminum mill finish
Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized |
Options:
E EL |
Epoxy abrasive tread
Photoluminescent and abrasive epoxy tread |
|---|---|---|---|---|---|---|
