Zero Offset Threshold 102 Data Sheet 012545

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

Part No: Part description:

102

Offset threshold

Notes: Provided by:

Customer name: Job no: Date:

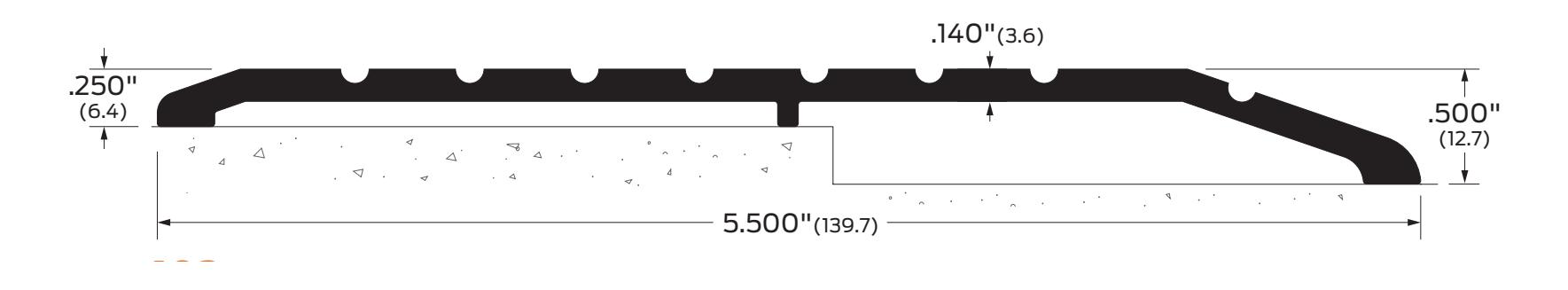

Image may not be shown to scale

Notes:

Handicap offset. Supplied without mounting holes.

Certifications: Fire rated-UL10c ADA Accessible	ANSI/BHMA: 102A, 102D, 102G, 102BK 102A-E, 102D-E, 102G-E, 102BK-E	J32180 J32280	Finishes: A BK D G	Aluminum mill finish Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized	Options: E EL	Epoxy abrasive tread Photoluminescent and abrasive epoxy tread
