Zero Meeting Stiles Models 55 155 Installation Instructions 112462

Models 55, 155 Meeting Stiles

Rain Drip

Installation Instructions

• Cut meeting stile to length. Cut from one end. Maximum cut should not leave less than 1"(25.4mm) to the adjusting screw. If further adjustment needed, cut from the opposite end.

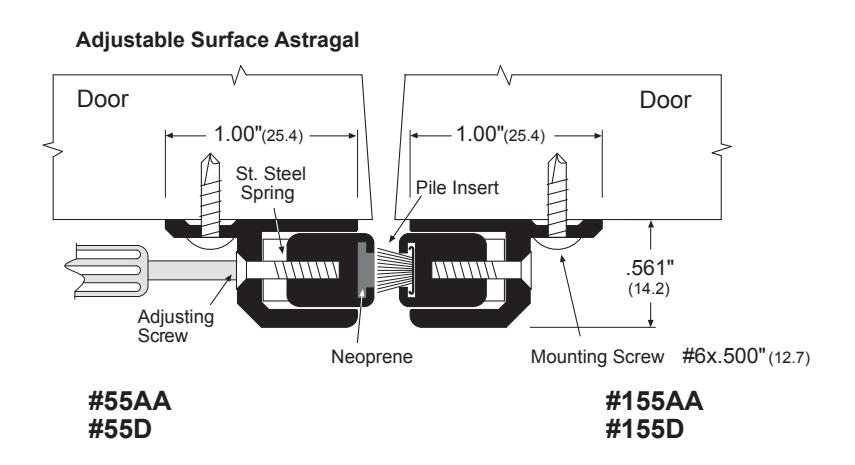

• Position meeting stile pieces on pull side of each door as shown above. 2
• Secure loosely with mounting screws on top, bottom and center points. Align pieces properly and fasten these screws. 3
• Install the rest of mounting screws. 4
• Adjust astragal by turning the adjustment screw so the pile and neoprene form a contact seal and allows doors to be closed and latched properly. 5
