Zero Meeting Stile 8217S Data Sheet 112779

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

8217S

Part No: Part description:

Meeting stile

Notes: Provided by:

Customer name: Job no: Date:

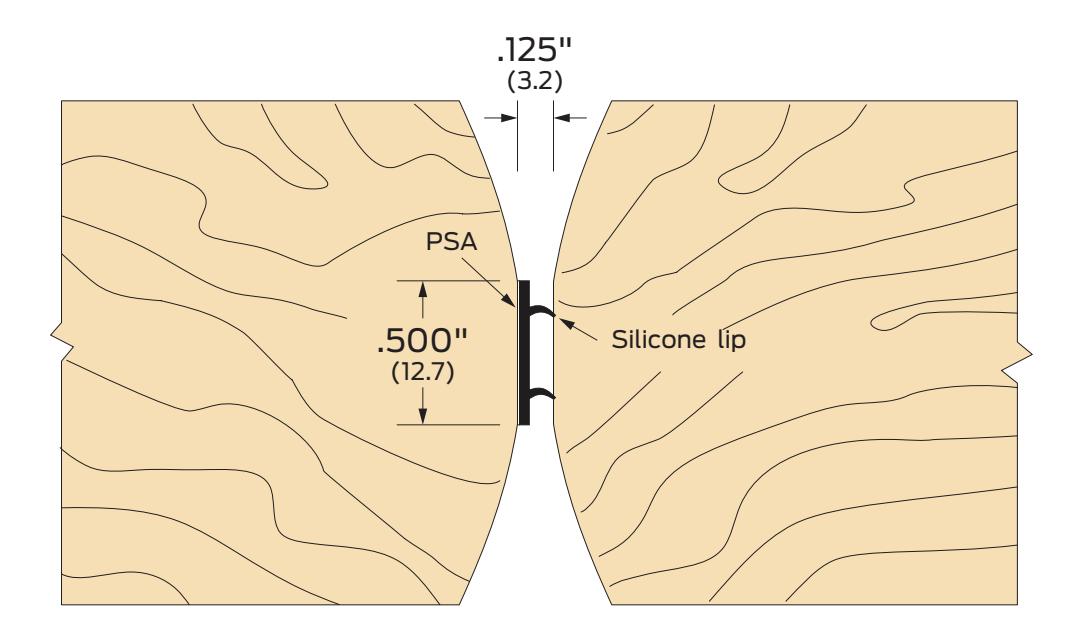

Image may not be shown to scale

Finishes:

S-BK Black silicone

Notes:

Very low profile, for door pairs with very small clearance. Also suitable for glass doors. Supplied standard with PSA.

Certifications: Fire rated-UL10c	ANSI/BHMA: 8217S	Finishes: S-BK Black silicone R0E716
