2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
73
Part No: Part description:
Interlocking threshold
Notes: Provided by:
Customer name: Job no: Date:

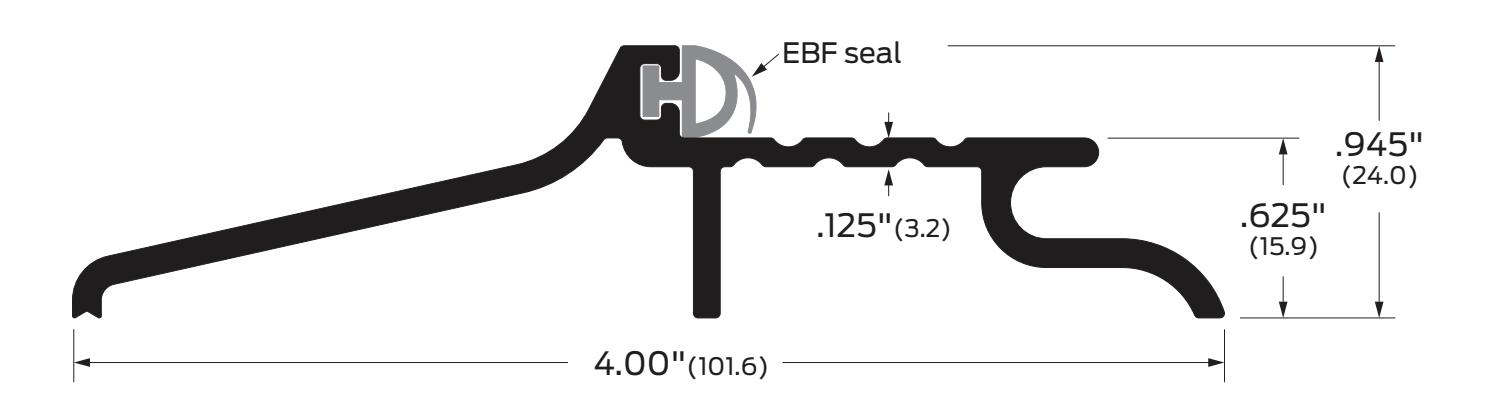

Image may not be shown to scale
Notes: Out-swing
| Out-swing | ||||||
|---|---|---|---|---|---|---|
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
| Fire rated-UL10c | 73A, 73BK, 73D, 73G | J34170 | A | Aluminum mill finish | E | Epoxy abrasive tread |
| 73A-E, 73BK-E, 73D-E, 73G-E | J34270 | BK | Aluminum black anodized | EL | Photoluminescent and abrasive | |
| D |
Aluminum dark bronze
anodized |
epoxy tread | ||||
| V3 | Full body strength fill | |||||
| G | Aluminum gold anodized | ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
|||
