2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
70
Part No: Part description:
Interlocking threshold
Notes: Provided by:
Customer name: Job no: Date:

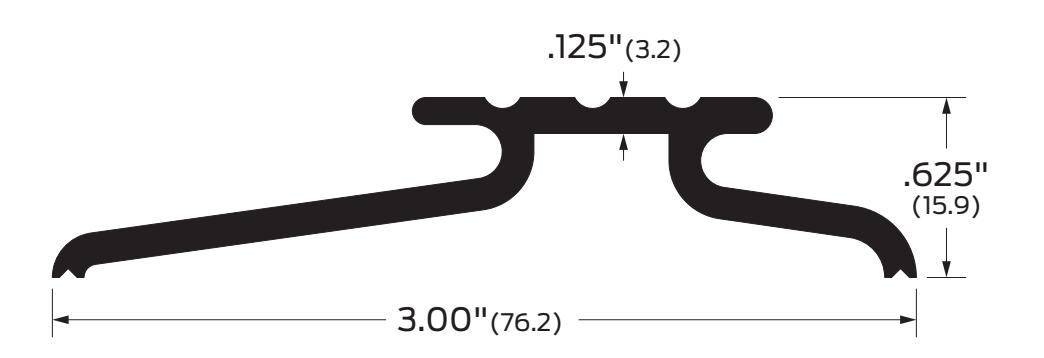

Image may not be shown to scale
Notes:
In-swing or out-swing
| Certifications: | ANSI/BHMA: | Finishes: | Options: | ||||
|---|---|---|---|---|---|---|---|
| Fire rated-UL10c | 70B | J14170 | B | Bronze, architectural mill finish | E | Epoxy abrasive tread | |
| 70B-E | J14270 | B-ORB | Oil-rubbed bronze | EL |
Photoluminescent and abrasive
epoxy tread |
||
| V3 | Full body strength fill | ||||||
| EV3 | Epoxy and full body strength fill | ||||||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
||||||
| (not available for ORB finish) | |||||||
