Zero Interlocking Threshold 175 Data Sheet 012614

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

175

Part No: Part description:

Interlocking threshold

Notes: Provided by:

Customer name: Job no: Date:

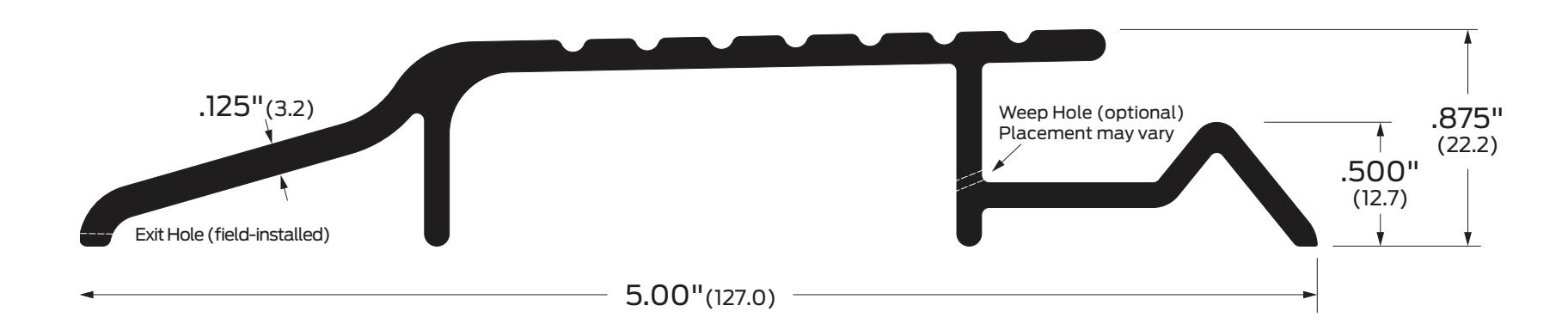

Image may not be shown to scale

Notes:

In-swing. Drain pan required underneath when used with weep holes.

Certifications:	ANSI/BHMA:		Finishes:		Options:
Fire rated-UL10c	175A, 175D, 175G, 175BK	J34170	A	Aluminum mill finish	E	Epoxy abrasive tread
	175A-E, 175D-E, 175G-E, 175BK-E	J34270	BK Aluminum black anodized	EL	Photoluminescent and abrasive
	175B	J14170	D	Aluminum dark bronze		epoxy tread
	175B-E	J14270		anodized	V3	Full body strength fill
			G	Aluminum gold anodized	ELV3	Photoluminescent and abrasive
		B Bronze, architectural mill finish	epoxy tread, full body strength fill
			B-ORB	Oil-rubbed bronze
					(not available for ORB finish)
