Zero Head and Jamb Protection Model 475 Installation Instructions 112453

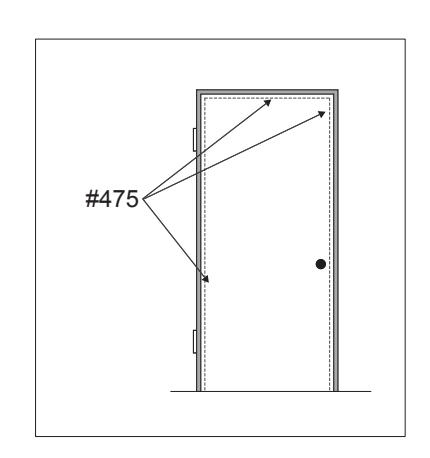

Model 475 Head and Jamb Protection

Installation Instructions

• Close the door and measure the frame opening.

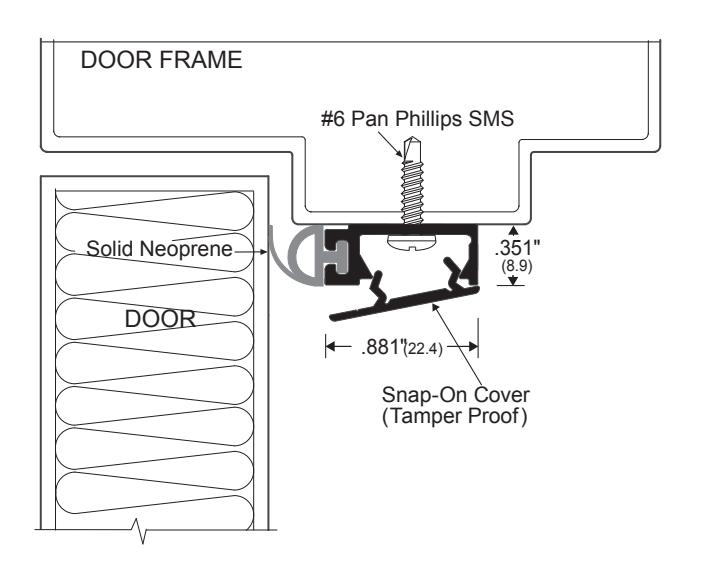

• 2 Install the seal (trim as necessary), head piece first. Place the piece against the face of door, making GENTLE contact between the rubber extrusion seal and the door. Fasten in place.
• 3 Place hinge side piece against the face of door, making GENTLE contact between the rubber extrusion seal and the door. Fasten in place. Repeat the same procedure with the lock side.

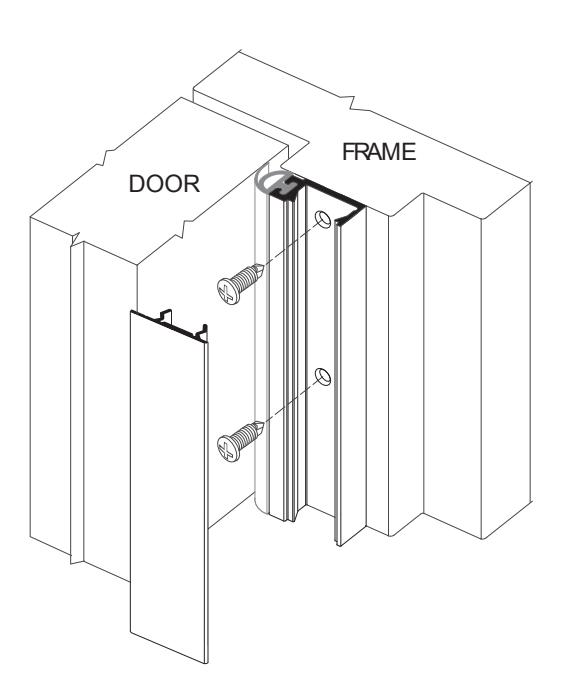

• 4 Snap the cover on after all screws are installed.

POSITIVE PRESSURE TESTED GASKETING MATERIALS FOR FIRE DOORS For application to hollow metal type fire doors rated up to 3 hours, fiberglass or wood composite type fire doors rated up to 1-1/2 hours, and wood type fire doors rated up to 20 minutes. Category J
